Horizontal Auger Boring Machine for Trenchless Underground Work
Qingdao Bohwa Machinery Corporation- Certification：ISO 9001:2000, ISO 9001:2008
- Condition：New
- Drill Hole Diameter：200-900mm
- Drill Hole Depth：10-250m
- Bit Type：Steel
- Drilling Way：Pipe Jacking
Base Info
- Model NO.：LDG-1665
- Type：Construction Machine
- Jacking Force：1,600kn
- Retracting Force：760kn
- Piston Stroke：650mm
- Torque (Max)：30,000nm
- Speed Min./Max.：38,76rpm
- Stroke of Gearbox Movement：230mm
- Force of Gearbox Movement：480kn
- Auger Connector：Dia.114mm
- O.D. of Pipes (Max.)：980mm
- Diesel Engine：110kw
- Pressure Max：31.5MPa
- Transport Package：Seaworthy Packing
- Specification：Jacking Force: 1, 600kN
- Trademark：Bohwa
- Origin：China
- HS Code：8430691900
- Production Capacity：5PCS,Month
Description

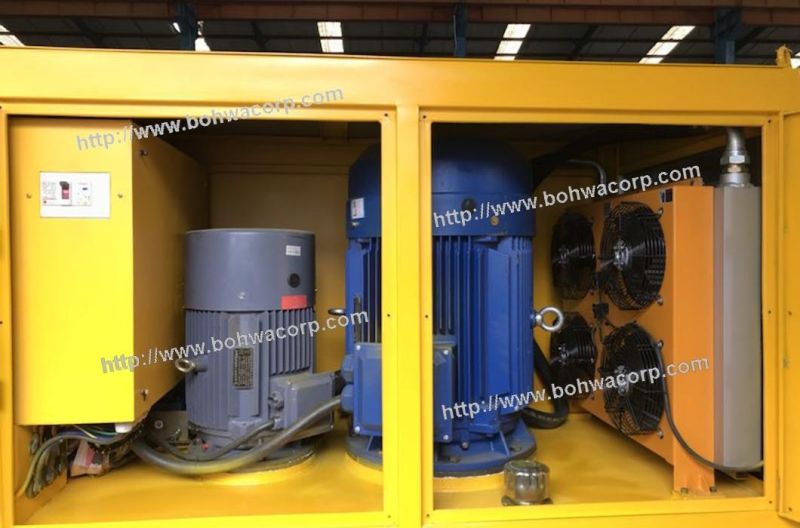

Power UnitDiesel Engine (Optional) Cummins 110KW Pressure Max 31.5Mpa Flow Rate of Rotation 232L/min Flow Rate of Jacking/Retracting 36L/min Length x Width x Height 1.8m x 1.0 x 1.81m
