Xy-3 600m Core Wireline Drilling Rig
Ji Ning Hengwang Mining Machinery Co., Ltd.- Certification：ISO 9001:2000
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：325mm
- Drill Hole Depth：600m
- Bit Type：Diamond Bit
Base Info
- Model NO.：XY-3
- Drilling Way：Rotary
- Open Hole Diameter：325mm
- End Hole Diameter：75mm
- Spindle Speed：32-1057r,Min
- Drill Mast Height：11m
- Transport Package：FCL
- Specification：2600*900*1750mm
- Trademark：Hengwang
- Origin：China
- Production Capacity：1200,Year
Description

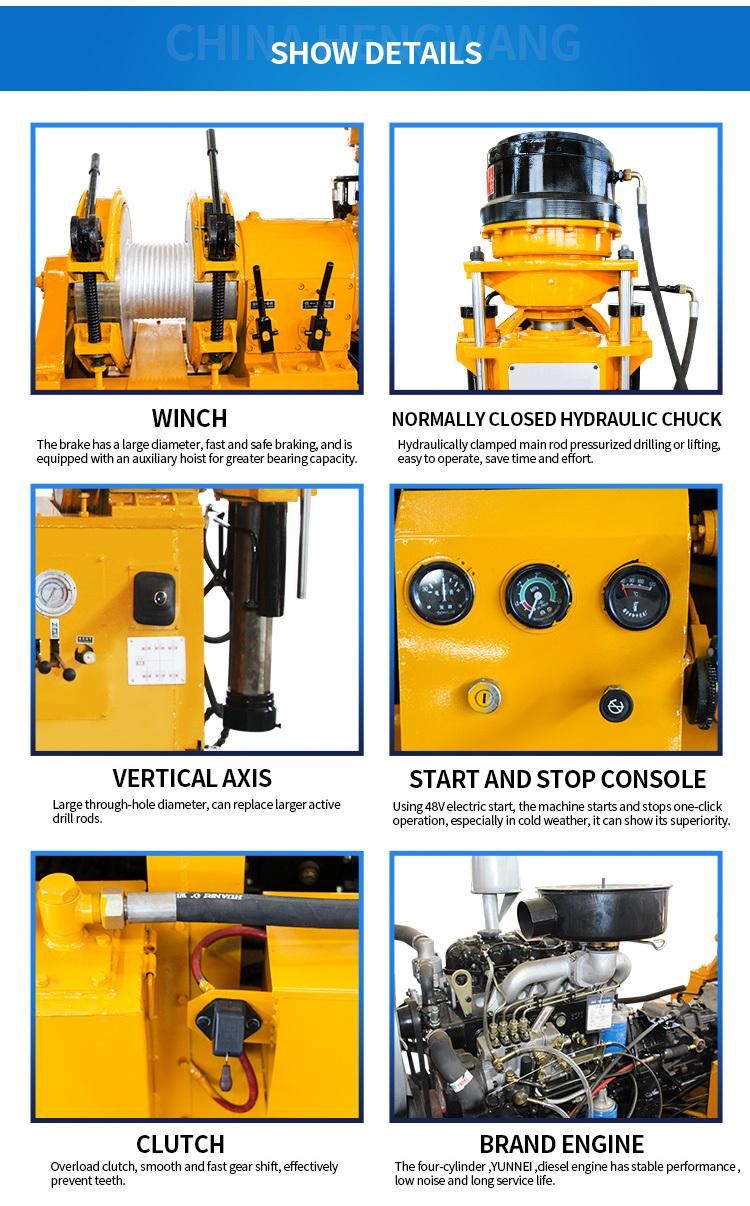

Detailed ImagesDetailed Images of Hydraulic Core Drilling Rig.

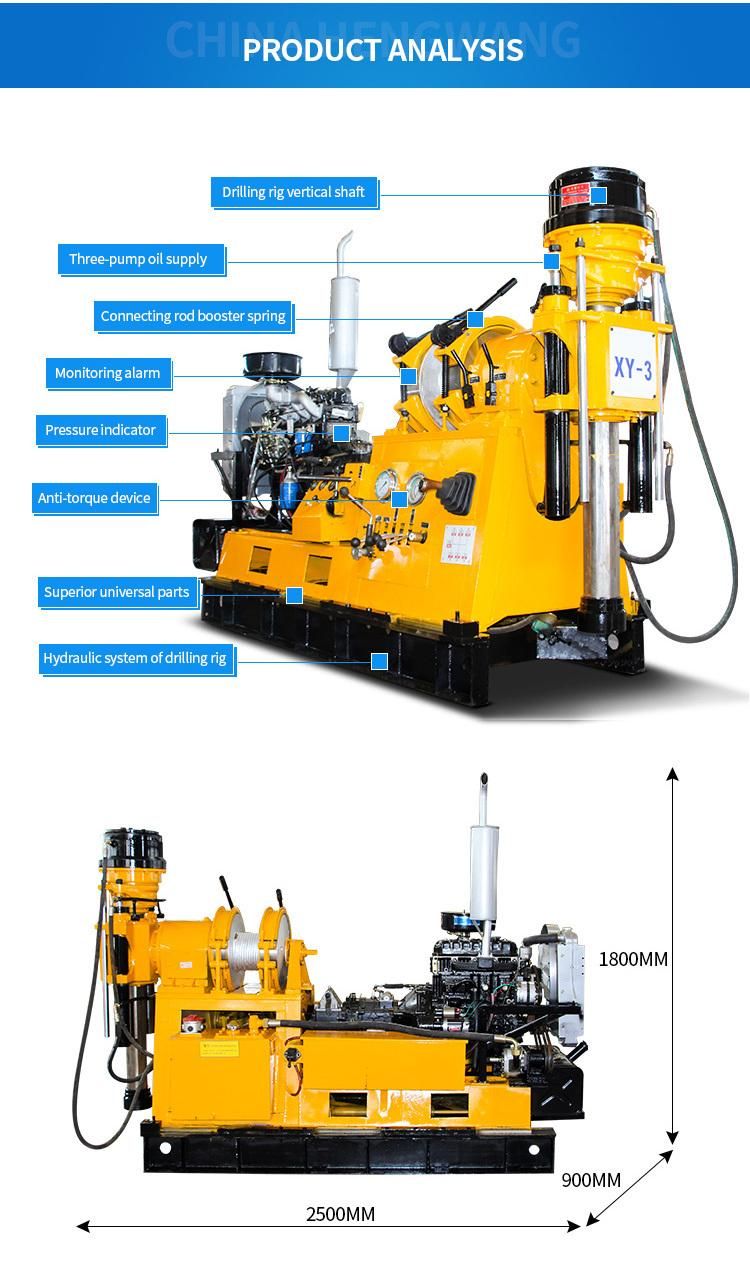

Main Features of XY-3 Geological Exploration Drilling Rig1. The rig is equipped with the latest MW525 car transmission assembly, it owns 10 forward gears and 2 reverse gears, the gear speed design is reasonable to meet the needs of different drilling technology. 2. The drilling rig with capacity easy to handle a variety of underground accidents large output torque and bearing. Mechanical transmission structure is compact, spindle diameter is 96mm, bearing distance is big, drilling rig rigidity is good. 3. Hydraulic system controls the feeding pressure and speed to meet the needs of all kinds of formation drilling. The machine is equipped with pressure indicator at the bottom of the hole, it is easy to grasp the situation inside of the hole. 4. This drilling machine with small size, light weight, easy disassembly, good layout, flexible and reliable operation is convenient for maintenance.

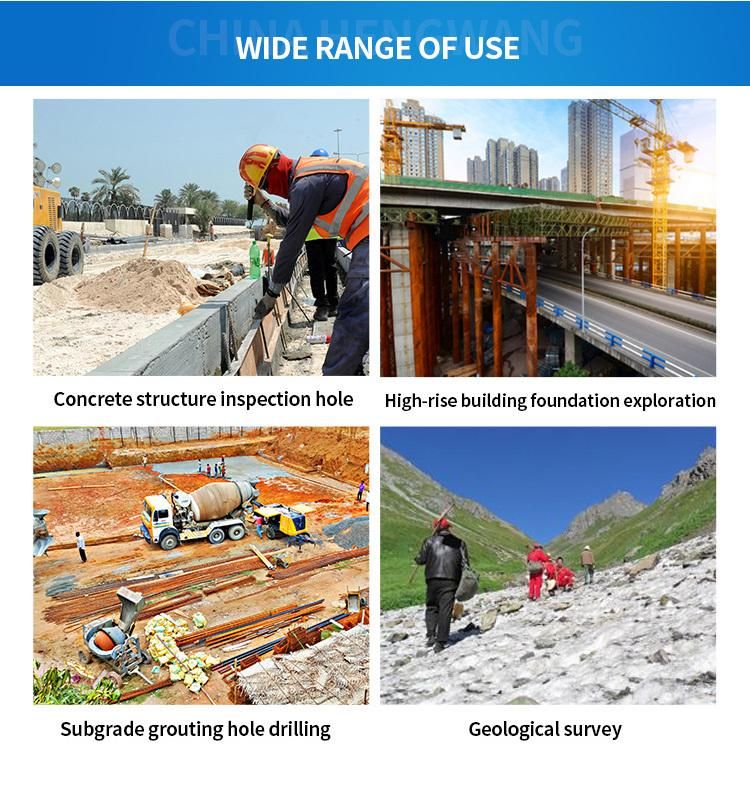

Application of XY-3 drilling rig.
