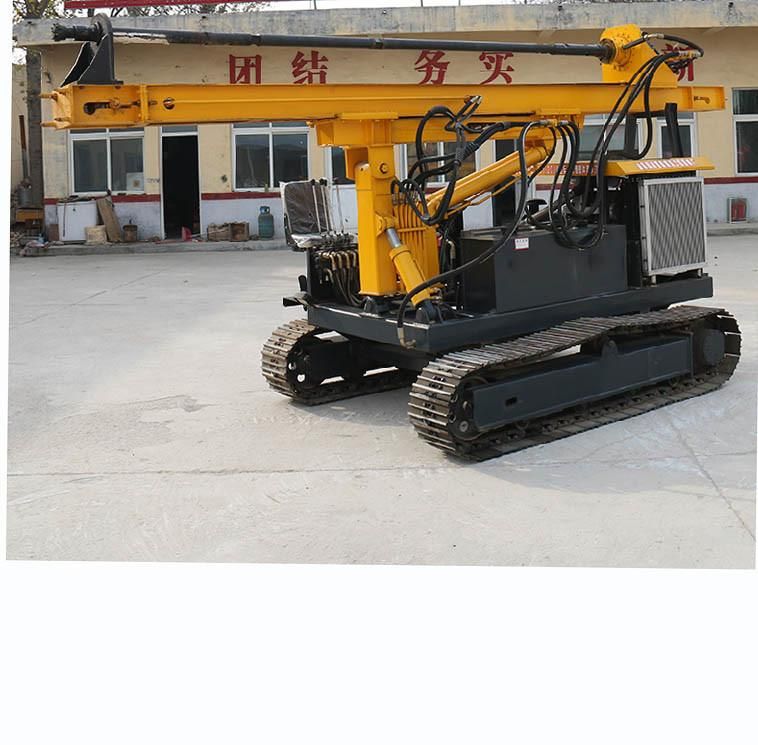

• Model NO.：TL135
• Drilling Depth：6m
• Drilling Diameter：150-400mm
• Drilling Method：DTH Air Drilling, Mud Pump Drilling
• Diesel Engine Power(Kw)：88
• Chassis Model：6t
• Machine Weight(T)：4
• Track Width(mm)：3500
• System Pressure(MPa)：16-22
• System Traffic(MPa)：20-30
• Drive Mode：Hydraulic Drive
• Walking Way：Mechanical Hydraulic Walking
• Driving Speed(Km/H)：5-15
• Transport Dimensions: Length and Breadth：4600*2100*2900
• Mailbox Capacity(L)：Fuel Oil 60, Hydraulic Oil 75
• Drilling Speed(M/Min)：0.5-2.5
• Transport Package：Standard Seaworthy Packing
• Specification：4600*2100*2900mm
• Trademark：Glorytek
• Origin：China
• Production Capacity：10 Sets,Month

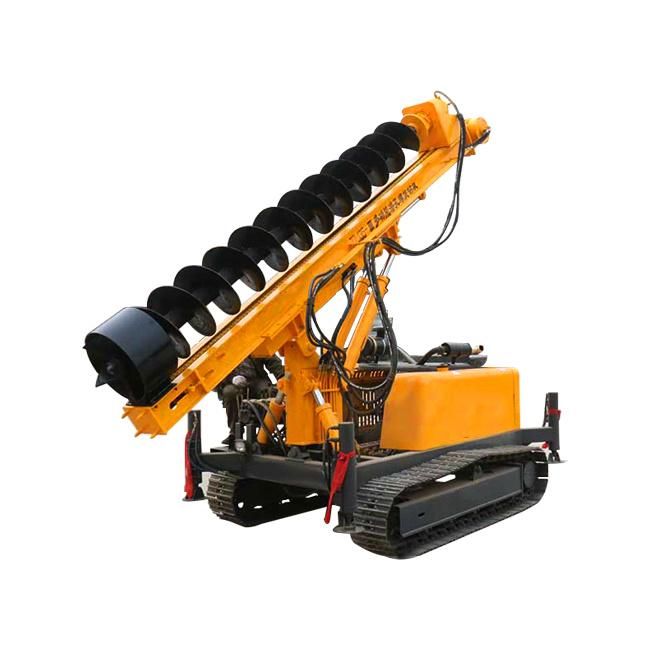

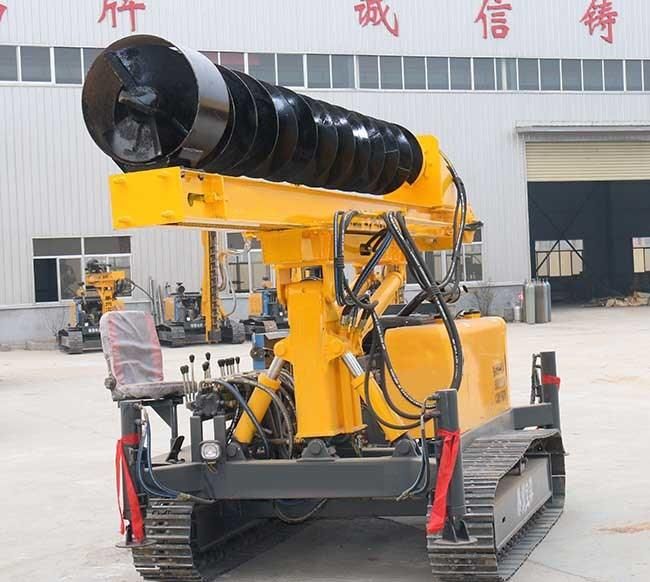

Pile driver modelTL135-3Diesel engine power(kw)88Generator output power(kw) main motor power(kw) Chassis model6TOverall dimensions: length, width and height(mm)4600*2000*2800Machine weight(T)4Track width(mm)3500Mast tilt angle(°)forward and back: ≤30, left and right:≥30System pressure(Mpa)16-22System traffic(Mpa)20-30Drilling depth(m)6Drilling diameter(mm)150-400Drive modehydraulic driveWalking wayMechanical hydraulic walkingDriving speed(km/h)5-15Grade ability (°)≤30Work size: length, width and height(mm)2800*2000*4600Transport dimensions: length and breadth(mm)4600*2100*2900Mailbox Capacity(L)Fuel oil 60, hydraulic oil 75Working radius(mm) Drilling speed(m/min)0.5-2.5Pull drill capacity(T)≥3.5Drilling speed(m/min)15Rotation angle
