• Model NO.：XY-1
• Drilling Way：Rotary

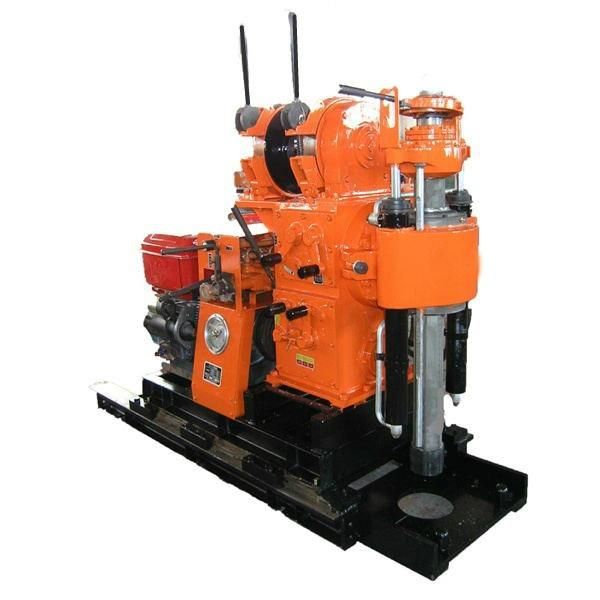

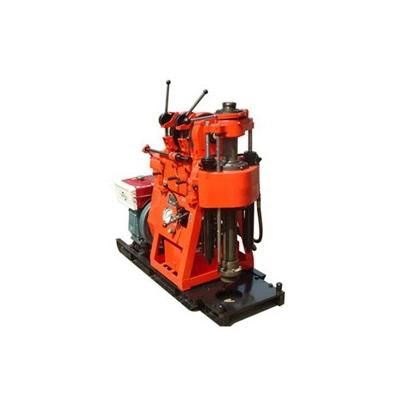

• Item：Xy-1A Core Drilling Rig for Spt
• Drilling Depth：100,180 M
• Initial Hole Dia：150mm
• Final Hole Dia：75,46mm
• Drill Rod Dia：42,43mm
• Angle Range：75-90
• Dimensions：1620*970*1560(mm)
• Weight：620kg
• Migration Distance：350mm
• Spindle Speed(5-Speed)：1010,790,470,295,140r,Min
• Power Type：Diesel
• Type：Core Drilling Rig
• Usage：Core
• Transport Package：Standard Export Packing
• Specification：SGS
• Trademark：GLORYTEK
• Origin：China
• Production Capacity：3000 Sets Per Mouth

Technical SpecificationsDrillDrilling depth100mDrill rod dia42mmInitial hole dia110mmFinal hole dia75mmAngle range90°-75°Dimensions(L×W×H)1640×1030×1440 (mm)Weight(without power unit)500kgSwivel HeadSpindle speed(3-speed)142/285/570 r/minSpindle stroke450mmupward displacement speed of idling vertical spindle0.05m/sDownward displacement speed of idling vertical spindle0.067m/sSpindle pull-down max15KNSpindle lifting capacity max25KNHoistMax .lifting capacity(1-speed,single rope)10KNCable volume (number) of hoisting drum27mWire rope dia9.3mmMud PumpModelHorizontal reciprocating single-acting piston pumpDisplacement max Equipped with diesel engine95L/minEquipped with moto77L/mmAllowable working pressure max1.2MpaContinuous working pressure0.7MpaSuction pipe dia32mmDischarge pipe dia25mm

Used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling etc.With hydro-automatic feeding device, and high drilling efficiency.Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes.Close levers, convenient to operate, safe and reliable operations.Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving.Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.
