Hfj600c Diamond Bit Monitoring Wells Rock Drilling Equipment with Compressor
Zhengzhou Hanfa Prospecting Machinery Co., Ltd.- Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：DC Motor
- Drill Hole Diameter：140-450mm
- Drill Hole Depth：600-800m
- Bit Type：Tricone Bit, DTH Hammer
Base Info
- Model NO.：HFJ600C
- Drilling Way：Impactor
- Type：Crawler
- Drilling Depth：600-800m
- Max. Diameter of Working Floor：140-450mm
- Engine Power：132kw
- Lifting Power：30-37t
- Small Winch Lifting Force：1.5t
- Main Winch Lifting Force：4-5t
- Rotary Torque：14000-24500n.M
- Swing Speed：0-40,80rpm
- One Push Trip：5200-5340mm
- Gradeability：15°
- Transport Package：Standard Export Packing
- Specification：14.1-16.5T
- Trademark：HF
- Origin：Zhengzhou City
- HS Code：843041
- Production Capacity：30sets,Month
Description
Overview
Product Description

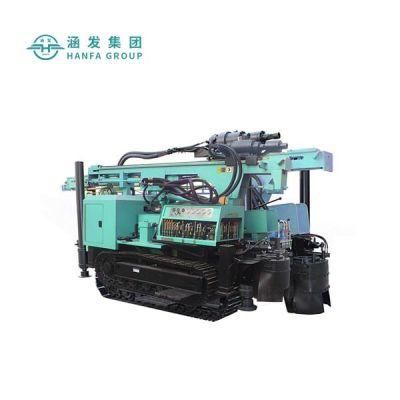

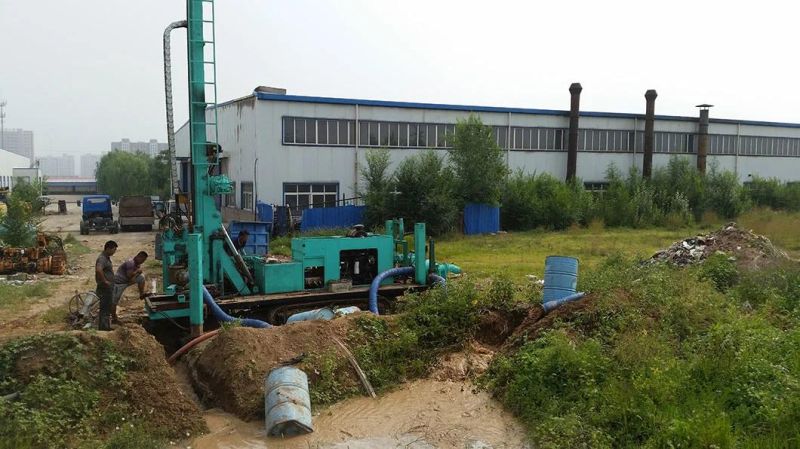

The HFJ600C crawler multifunctional water well drilling rig is a new, efficient and multifunctional hydraulic water well drilling rig. The drilling rig is mainly used for drilling water wells, monitoring wells, dewatering wells, rescue wells, gas formation mining and other exploration projects.
Rock drilling uses down-the-hole hammer operation, air slag discharge, and the footage efficiency is dozens of times that of traditional rotary drilling.
The loose layer on the surface can be used for cutting or roller drilling operations, mud slag removal; also can use impact pipe follow operation, air slag removal; suitable for drilling needs under complex geological conditions.
