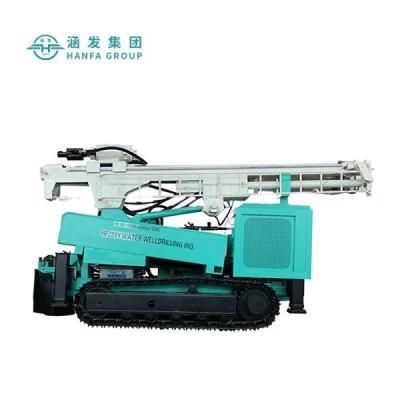

Mini Water Well Drill for Sale Hydraulic Borehole Drilling Machine

Zhengzhou Hanfa Prospecting Machinery Co., Ltd.
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：Diesel
  • Drill Hole Diameter：150--350mm
  • Drill Hole Depth：350m
  • Bit Type：Cone Bit

Base Info

  • Model NO.：HF300Y
  • Drilling Way：Rotary
  • Type：Drilling Machine
  • Bore Diameter：115-350mm
  • Bore Depth：350m
  • Traveling Speed：2.5km,H
  • Rock Hardness：F=6-20
  • Work Pressure：1.05-3.5MPa
  • Air Consumption：16-40m3,Min
  • Feeding Stroke：3600mm
  • Max Ground Clearance：320mm
  • Rotary Speed：0-100r,Min
  • Max Hoist Force：12t
  • Dimension：6500*2100*2600mm
  • Total Weight：8700kg
  • Transport Package：Standard Export Packing
  • Specification：6500*2100*2600mm
  • Trademark：HF
  • Origin：China
  • HS Code：8430490000
  • Production Capacity：20sets,Month

Description

Overview Product Description

Product Parameters

Bore diameter

115-350mm

Bore depth

350m

Traveling speed

2.5km/h

Rock hardness

F=6-20

Work pressure

1.05-3.5Mpa

Air consumption

16-40m3/min

Feeding stroke

3600mm

Max bevel angle

90degree

Max ground clearance

320mm

Rotary speed

0-100r/min

Max rotation torque

5700Nm

Max hoist force

12T

Lifting speed

27m/min

Climb ability

20degree

Dimension(LxWxH)

6500X2100X2600mm

Total weight

8700KG

Working Site

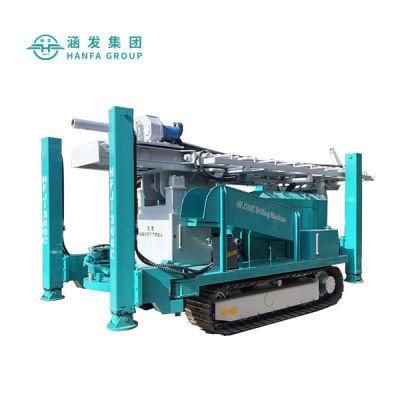

Mini Water Well Drill for Sale Hydraulic Borehole Drilling Machine

Company Profile

Mini Water Well Drill for Sale Hydraulic Borehole Drilling MachineMini Water Well Drill for Sale Hydraulic Borehole Drilling MachineMini Water Well Drill for Sale Hydraulic Borehole Drilling MachineFAQ

1. Are you trading company or manufacturer?

We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.

2.Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.

3. How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.

4. Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.

5.What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.

6. How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
