• Model NO.：YG-220
• Drilling Way：Impactor
• Type：Portable
• Drill Rod Diameter：51mm
• Drill Rod Length：1.5m
• Drive：Gasoline , Diesel
• Power：15HP
• Drill Crushing Method：Screw Thread
• Drill Depth：100m
• Water Pump Power：7.5HP
• Drill Diameter：80-220mm
• Hoisting Height：2.5 M
• Listing Power：800kg
• Transport Package：Wooden Case Export Package
• Specification：80*80*270cm
• Trademark：Yugong
• Origin：China, Henan
• HS Code：8430419000
• Production Capacity：50000

Basic Info.

Model NO. YG-220 Drilling Way Impactor Type Portable Drill Rod Diameter 51mm Drill Rod Length 1.5m Drive Gasoline , Diesel Power 15HP Drill Crushing Method Screw Thread Drill Depth 100m Water Pump Power 7.5HP Drill Diameter 80-220mm Hoisting Height 2.5 M Listing Power 800kg Transport Package Wooden Case Export Package Specification 80*80*270cm Trademark Yugong Origin China, Henan HS Code 8430419000 Production Capacity 50000

Product Description

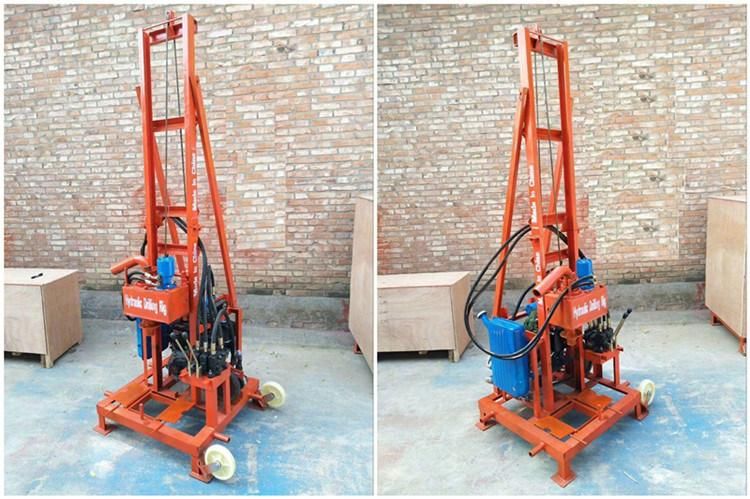

Portable Hydraulic Water Well Drilling Rig

Picture Display

It is mainly for drill for soil, soft rock such as limestone. The advantage is fast drilling.It can drill soil layer for 30 to 40 meters in one hour. It is convenient to move and the price is low.

It is mainly for drill for soil, soft rock such as limestone. The advantage is fast drilling.It can drill soil layer for 30 to 40 meters in one hour. It is convenient to move and the price is low.

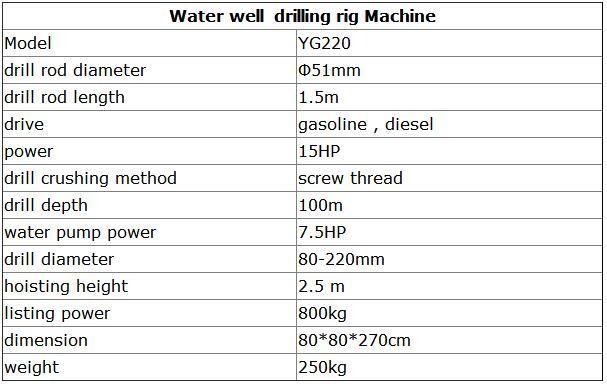

Technical Parameters


Characteristics
· Light weight, energy saving

· Patented product, unique design and simple drilling structure

· Easy to transport and can learn how to handle the machine in short time

· Can drill through hard stratum, unless thick rock layer

· Assure easily operation and long time service life

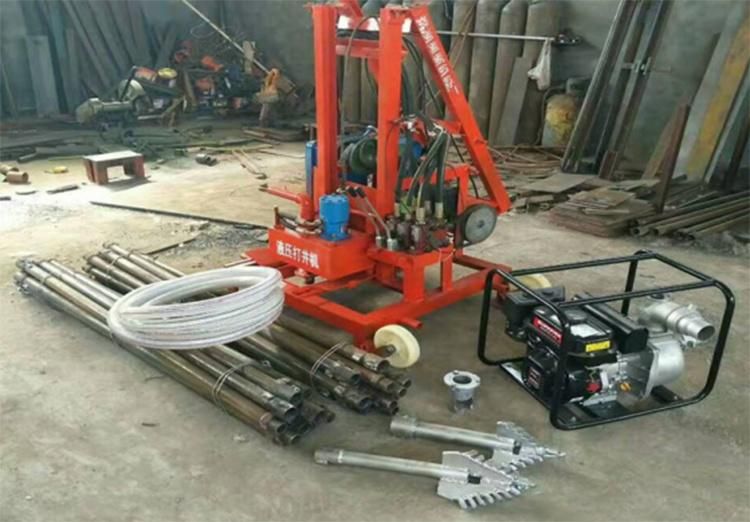

Full set of Drilling Machine
Completed unit of drilling machine include main engine, tolols, drill rod, drilling bit, 1 unit high pressure diesel water pump, 5 meter high pressure water pipe.
