• Drilling Way：Rotary
• Type：Crawler
• Name：Horizontal Directional Drilling Machine
• Usage：Laying of Wires and Cables
• Max Pull/Thrust Force：130-13600kn
• Power：81-1600kw
• Max Inclination Angle：16-20
• Max Backreamer Diameter：400-2500mm
• Transport Package：Contaciner
• Trademark：yugong
• Origin：Henan China
• HS Code：843041000

Basic Info.

Drilling Way Rotary Type Crawler Name Horizontal Directional Drilling Machine Usage Laying of Wires and Cables Max Pull/Thrust Force 130-13600kn Power 81-1600kw Max Inclination Angle 16-20 Max Backreamer Diameter 400-2500mm Transport Package Contaciner Trademark yugong Origin Henan China HS Code 843041000

Product Description

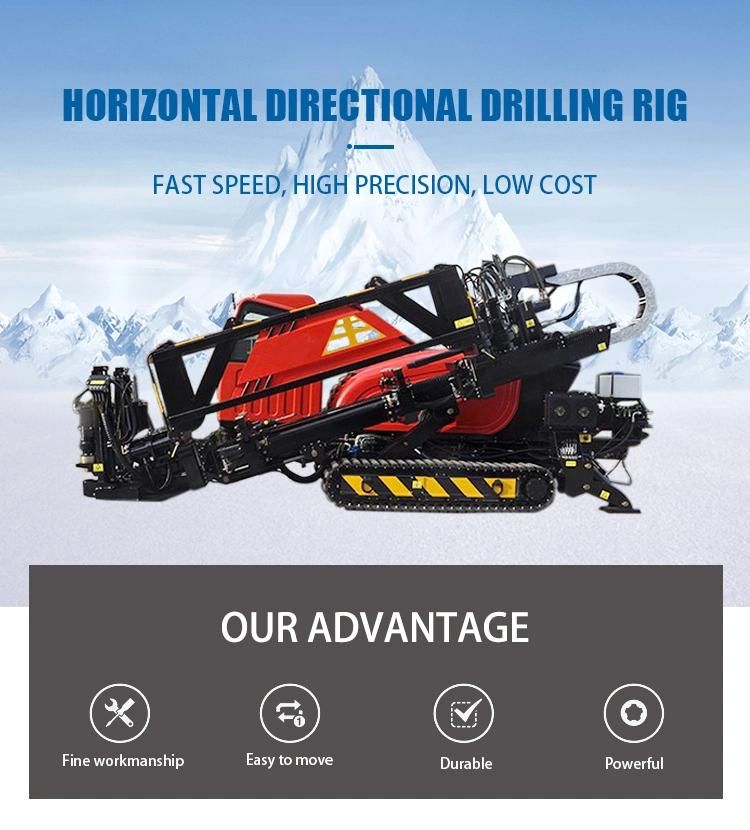

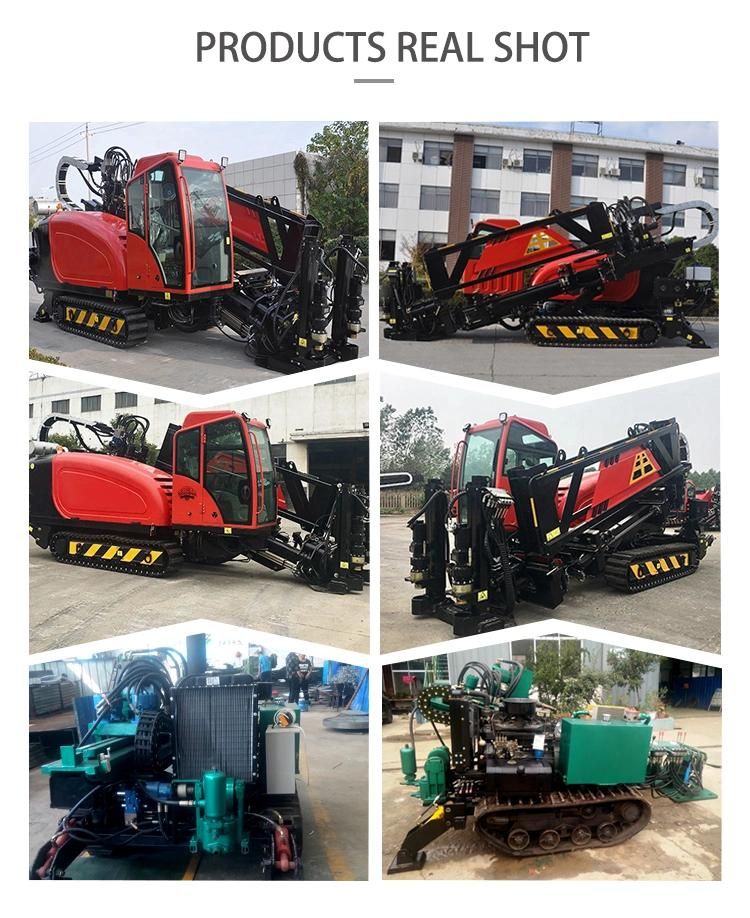

HDD Equipment Horizontal Directional Drilling Machine for Water Supply Irrigation Engineering HDD Machine

1.The machine is equipped with Cummins engine, with high efficiency, large power, low fuel consumption, low noise, strong ability in construction.
2.Rotation adopts American Eaton large torque motor driving directly, with large torque, stable performance, and two gears speed regulation. Push & pull adopts American Eaton motor and three gears speed regulation. The Construction speed is far ahead of other manufactures in the same industry. Driving head reserves reinforced power -push & pull force, which expands the scope of drilling construction.
3.It is equipped with hydraulic gear pump with serious technology. Steel track walks by wire-control, which is convenient for load & unload and transfer.

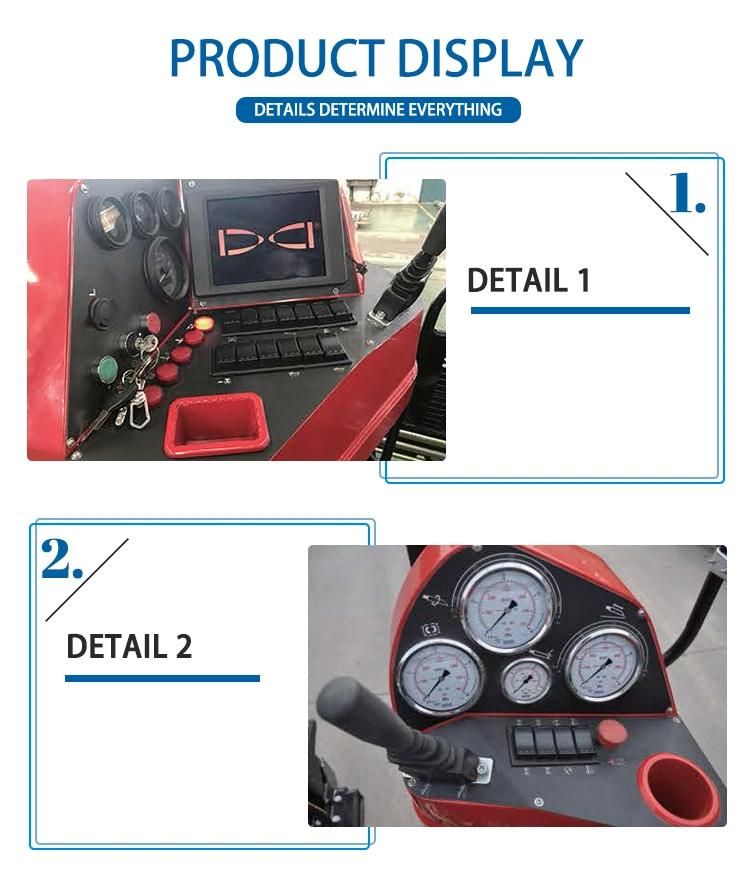

4.Operation table adopts man-machine construction manner with comfortable operation, which greatly reduce workers fatigue level, broad vision, and comfortable seat.
5.Equipped with φ60×3000mm drill rod, the machine uses less field area, meeting the requirement for high efficiency construction in small place.
6. Electric design is reasonable with low failure rate, which is easy to maintain.
7.The rig shape is beautiful, easy to repair, which fully shows "people-oriented" design vision.

Main Technical Parameters


Engine Power	113 kw	Max Torque	6500 N·m
Rig Weight	9500 kg	Dimension(L*W*H)	6750*2050*2400 mm
Max. Push & Pull Force	225/300 kn	Max Rotation Speed	230 r/min
Max.. Push & Pull Speed	60 m/min	Max. Mud Pump Flow	250 L/min
Walking Speed	2.5-4.0 km/h	Max. Mud Pump Pressure	8 Mpa
Enter Drill Angle	12-22°	Max. Climbing Gradient	17°
Max. Aperture Diameter	Φ900 mm(Soil Depended)	Max. Crossing Length	300 m(Soil Depended)
