• Model NO.：XY-400C
• Drilling Way：Rotary
• Type：Crawler
• Usage：Water Well
• Voltage：Customized
• Power(W)：24HP
• Weight：3000kgs
• Diesel Engine：24HP, 2200r,Min
• Application：Water Well, Soil Sampling, Pile Foundation etc
• Stratum：Gravel, Soil, Sand, Hard Rock etc
• Transport Package：Container
• Specification：3980*1950*2750mm
• Trademark：DEFY
• Origin：China Henan
• Production Capacity：200 Sets Per Month

Specifications1. Main Parameters  Max. Drilling Depth400m Diameter of drill pipeΦ42,Φ50,Φ60,Φ76 Angle of vertical spindle0°~90° Drilling capability  Φ75mm drill diameter Max. Depth 400m Φ108mm drill diameter Max. Depth 320m  Φ127mm drill diameter Max. Depth 280m Φ168mm drill diameter Max. Depth 220m Φ219mm drill diameter Max. Depth 160m  Φ273mm drill diameter Max. Depth 130m Φ400mm drill diameter Max. Depth 100m Φ500mm drill diameter Max. Depth 50m Φ600mm drill diameter Max. Depth 30m 2. Vertical Spindle  Rotation speed50-1150r/minForward 8 grades29-137r/minReverse 2 gradesSpindle stroke600mm Hoisting capability6000kg Max. Torque2800N.m 3. Main hoist  Lifting speed of single wire0.5-1.9m/s Diameter of wire rope14.0mm Carry capacity of single wire4000kg Lifting capability of single wire3000kg 4.Auxiliary Hoist  Winding drum140mm Diameter of steel wire rope6mm 5. Mud pump  Horizontal triplex mud pumpBW-200II Displacement200L/min 6.Power supply  Diesel engine17.6kw (24HP) 7. Weight and Dimension of main drilling rig  Weight3000kg Dimension3980×1950×2750mm 8.Six-wheel Trailer  Walking speedLess than 10Km/h Frame carrying capacity8.5 tons Minimum turing angle6.8m

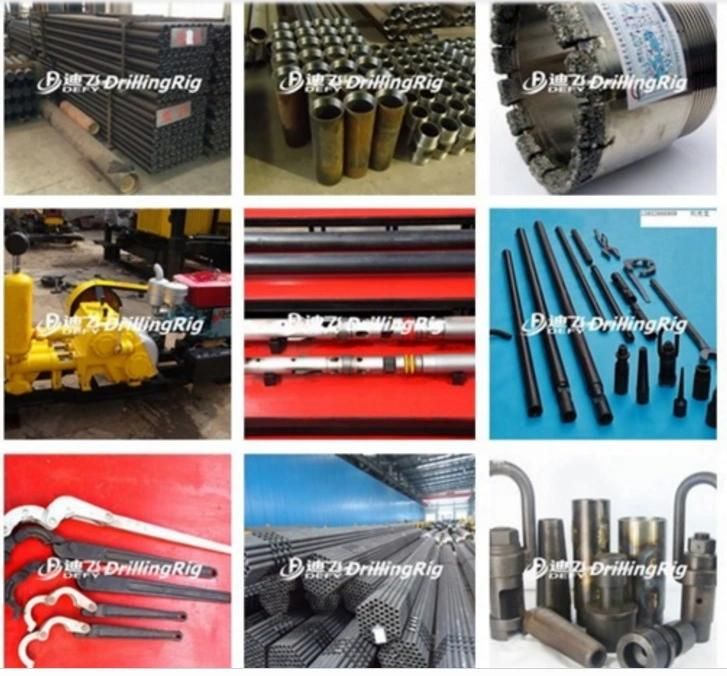

Related accessories

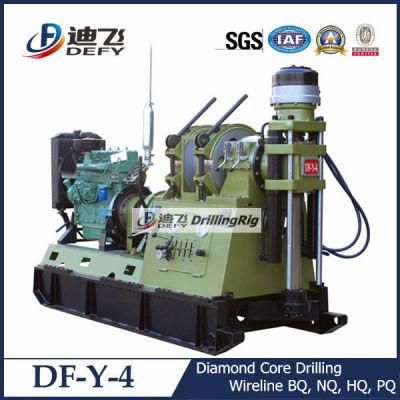

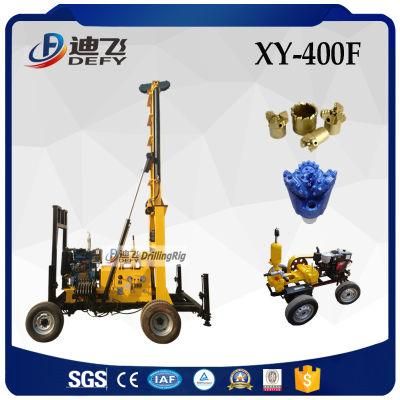

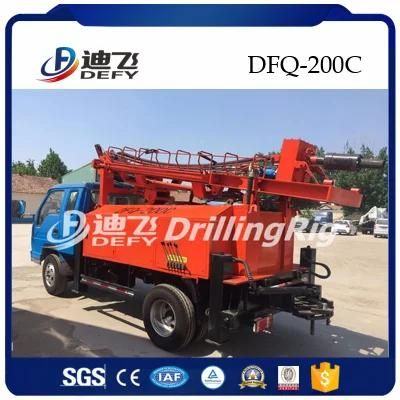

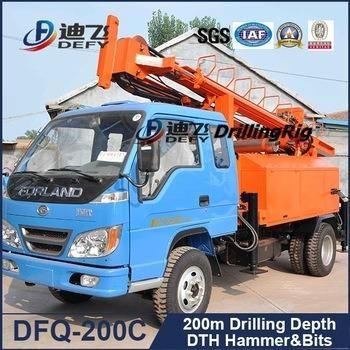

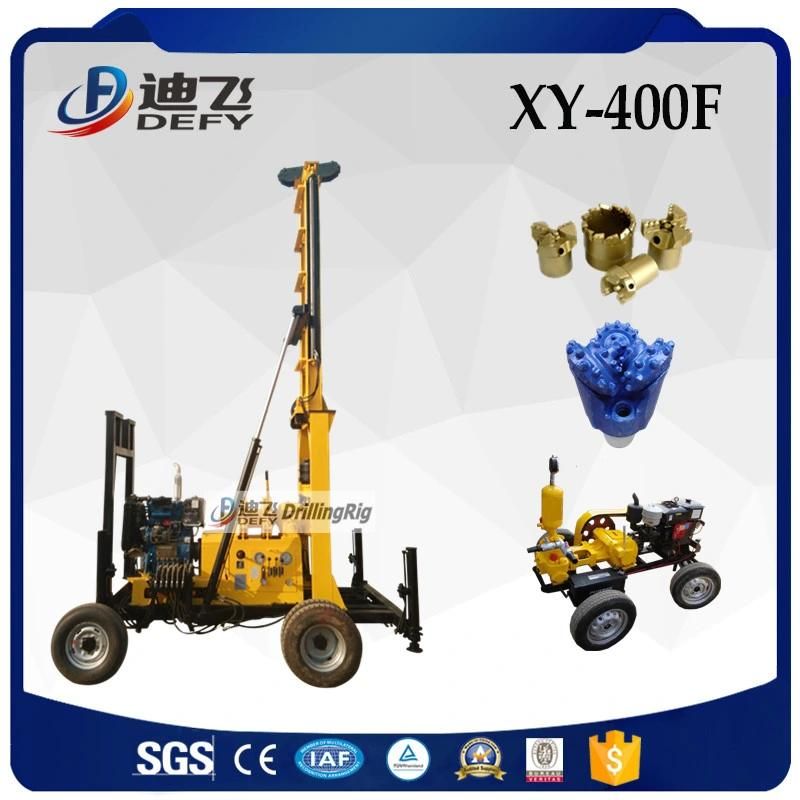

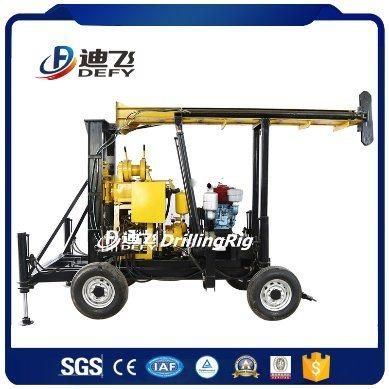

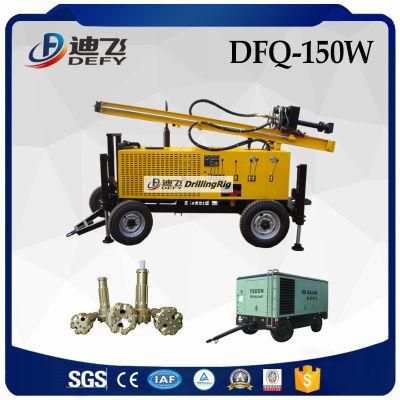

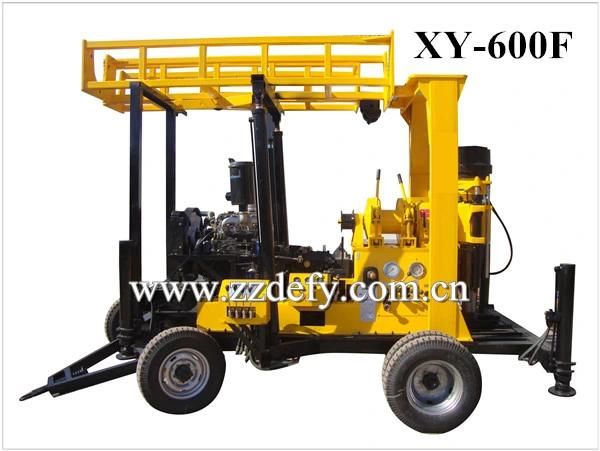

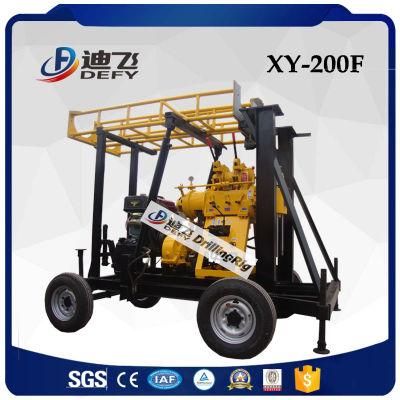

Other Models of Borehole Drilling Machine for Choice:



Delivery and Shipping:


Certifications


Our Service
Pre-Sales Service
We have QC department, before shipping, goods will be strictly checked.
After-Sales Service
- 24 hours * 7 days online pre & after sale service ;
- Factory site training or engineers go to overseas to train the workers ;

Contact Us
Please don`t hesitate to contact us if our New Product!! 400m XY-400C Crawler Hydraulic Well Drilling Rig  is fit for your business. And you are highly appreciated that if you could tell us more details of your business, then we can recommend most suitable model of drilling rig to you.
