• Model NO.：FY450
• Drill Hole Depth：>200m
• Bit Type：DTH
• Drilling Way：Rotary
• Type：Crawler
• The Weight：9.4 Ton
• The Hole Diameter：140-350 mm
• Drilling Depth：450m
• One-Time Advance Length：6.6m
• Using Air Pressure：1.7-3.5 MPa
• Air Consumption：17-36 M3,Min
• Rig Lifting Force：25 T
• Swing Torque：7000-9500 N.M
• Engine Power：103kw
• Transport Package：Nude Package
• Specification：5950*2100*2600mm
• Trademark：cruking
• Origin：China
• HS Code：8430419000
• Production Capacity：30000 Unit,Year

Product Parameters

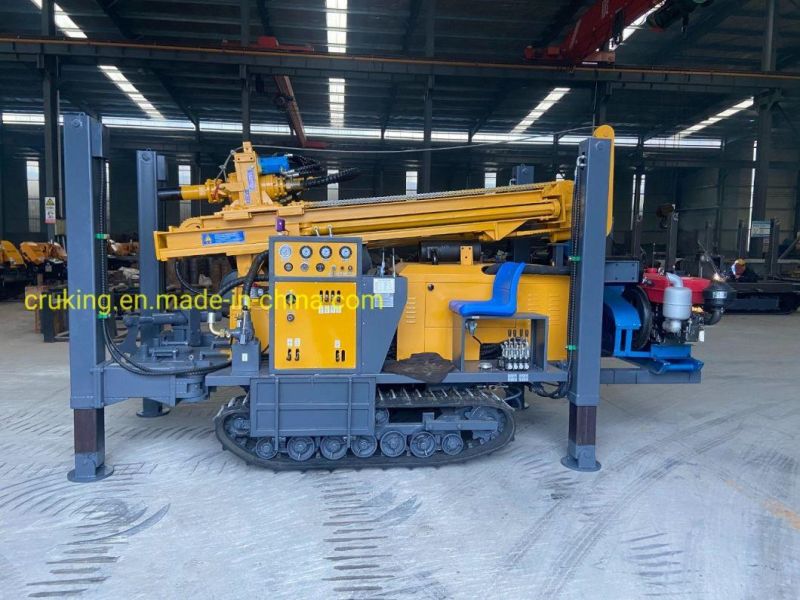

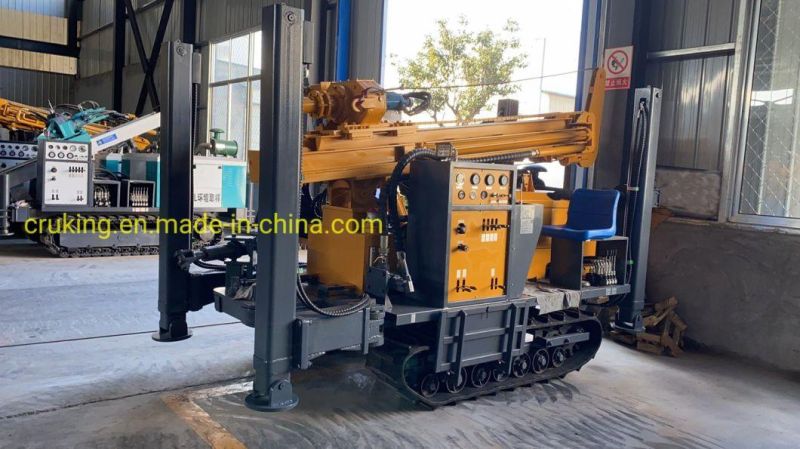

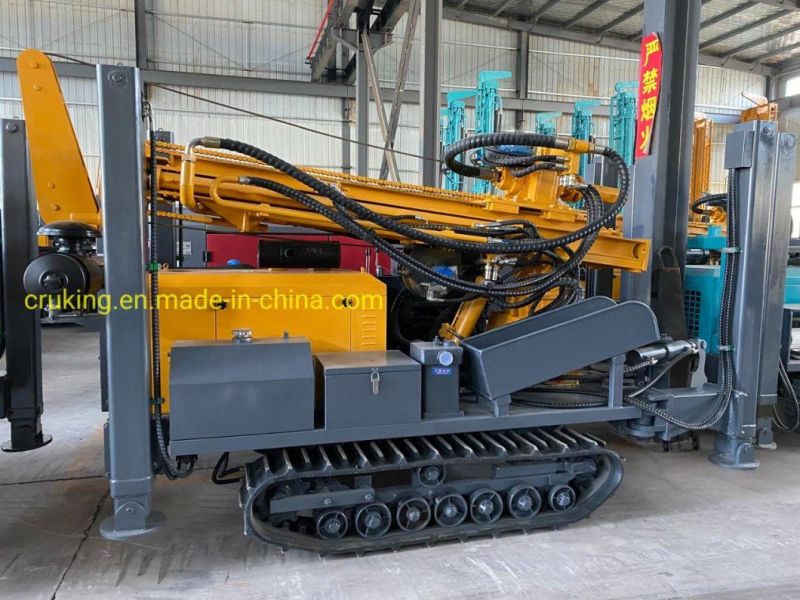

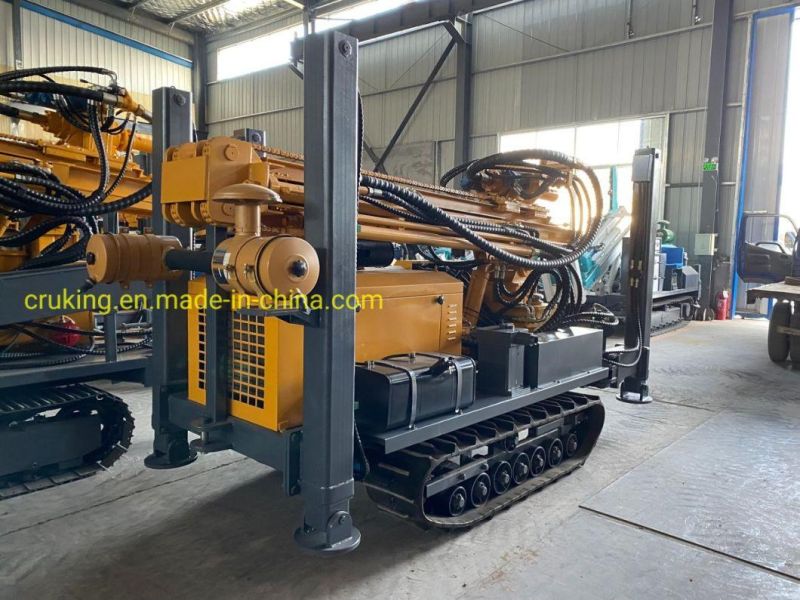

FY 450 crawler water well drilling rig

The weight(T)

  9.4

Drill pipe diameter(mm)

Φ89  Φ102

The hole diameter(mm)

140-350

Drill pipe length(m)

1.5m  2.0m  3.0m  6.0m

Drilling depth(m)

450

Rig lifting force(T)

25

One-time advance length(m)

6.6

Rapid rise speed(m/min)

20

Walking speed(km/h)

2.5

Fast feeding speed(m/min)

40

Climbing angles(Max.)

30

Width of loading(m)

2.8

Equipped capacitor(kw)

103

Hoisting force of winch(T)

2

Using air pressure(MPA)

1.7-3.5

Swing torque(N.m)

7000-9500

Air consumption(m³/min)

17-36

Dimension(mm)

5950×2100×2600

Swing speed(rpm)

50-135

Equipped with hammer

Medium and high wind pressure series

The penetration efficiency(m/h)

15-35

High leg stroke(m)

1.6

The engine brand

Weichai engine ( National III )
