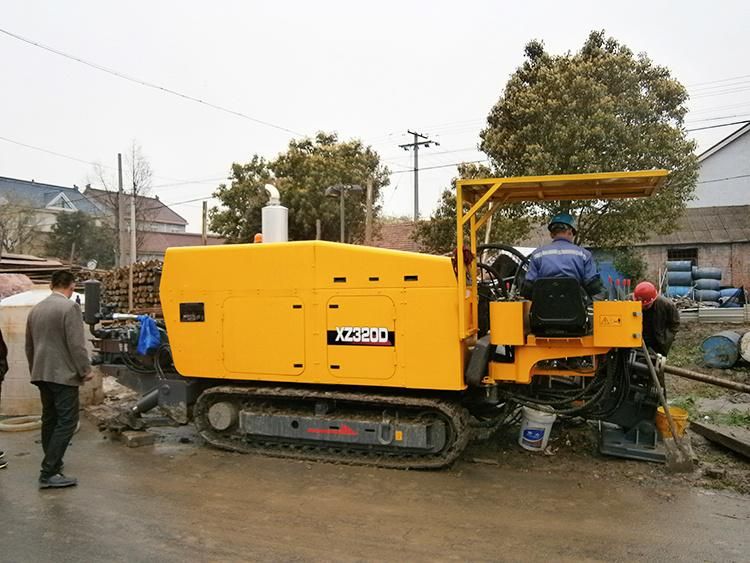

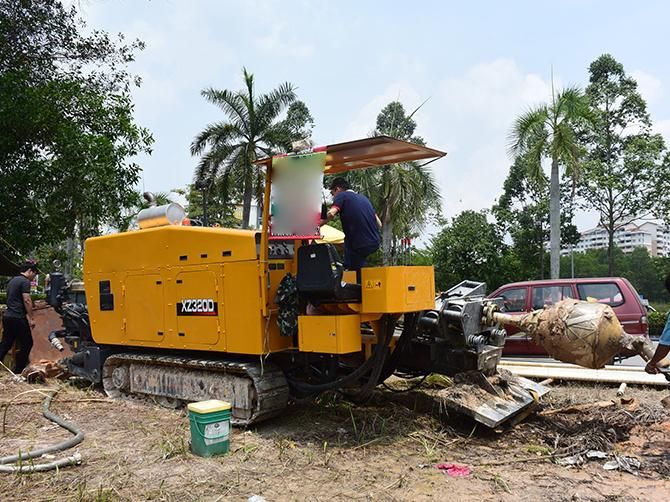

Chinese HDD Machine Construction Directional Drilling Rig Xz320

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • After-sales Service：One Year Warranty
  • Warranty：One Year Warranty
  • Condition：New
  • Drill Hole Diameter：>300mm
  • Type：Crawler
  • Engine：Shangchai

Base Info

  • Model NO.：XZ320
  • Rated Power：140kw
  • Transport Package：Nude Packing by Roro or Container Vessel
  • Specification：7100*2250*2450mm
  • Trademark：SINOMADA
  • Origin：China
  • HS Code：84295100
  • Production Capacity：100units,Year

Description

Overview Product Description



Product ParametersDescriptionUnitParameter valueEngineManufacturers Dongfeng CumminsChina IIIModel QSB5.9-C210Rated PowerkW /(r/min)154 / 2200China IIModel 6BTAA5.9-C205Rated PowerkW /(r/min)153/ 2200China IIIModel QSB6.7-C220EU Stage IIIARated PowerkW /(r/min)164/2200Thrust-PullType Pinion and rack driveMax thrust-pull forcekN370/370Max thrust-pull speedm/min32RotationType four motorTorqueN·m13200Max spindle speedr/min140Loader Crance//Max inclination angle°20PipeDiameter × Lengthmm×mmΦ73/83×3000Mud pumpMax Flow rateL/min400Max pressureMPa8Weightkg10500Chinese HDD Machine Construction Directional Drilling Rig Xz320Chinese HDD Machine Construction Directional Drilling Rig Xz320
