Yuchai 150kn Torque Water Drilling Rig Machine Price
Newindu Construction Engineering (Shanghai) Co., Ltd.- After-sales Service：Overseas Service
- Warranty：One Year
- Certification：ISO 9001:2000
- Condition：New
- Drill Hole Diameter：>300mm
- Drill Hole Depth：50-70m
Base Info
- Model NO.：YCR150
- Bit Type：Cone Bit
- Drilling Way：Rotary
- Type：Crawler
- Operating Weight：45.5t
- Engine Model：Qsb6.7
- Rated Power：142kw
- Traction Force：300kn
- Transport Package：Nude Packing
- Specification：18488x4000x3237mm
- Trademark：YUCHAI
- Origin：China
- HS Code：84304122
- Production Capacity：20units, Month
Description
Basic Info.
Model NO. YCR150 Bit Type Cone Bit Drilling Way Rotary Type Crawler Operating Weight 45.5t Engine Model Qsb6.7 Rated Power 142kw Traction Force 300kn Transport Package Nude Packing Specification 18488x4000x3237mm Trademark YUCHAI Origin China HS Code 84304122 Production Capacity 20units/ MonthProduct Description

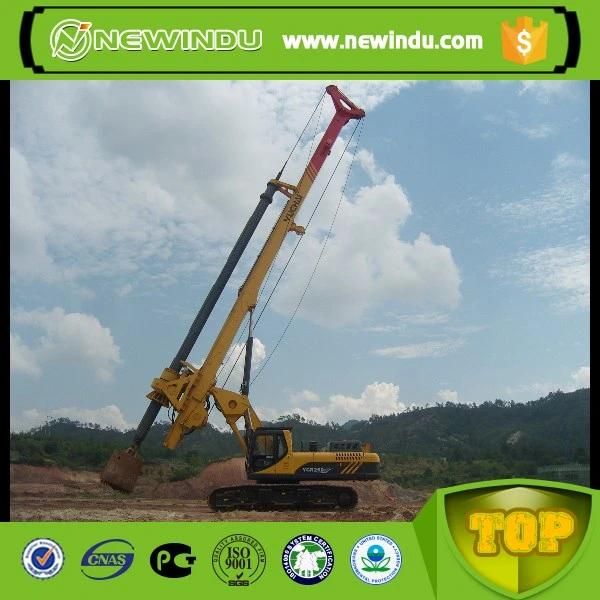

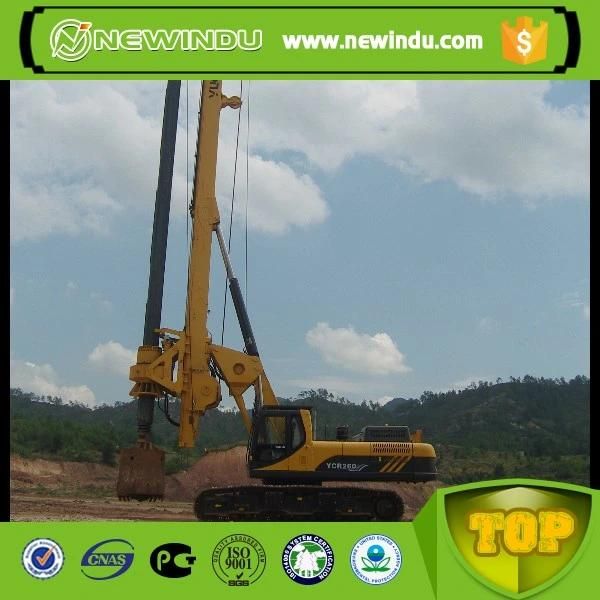

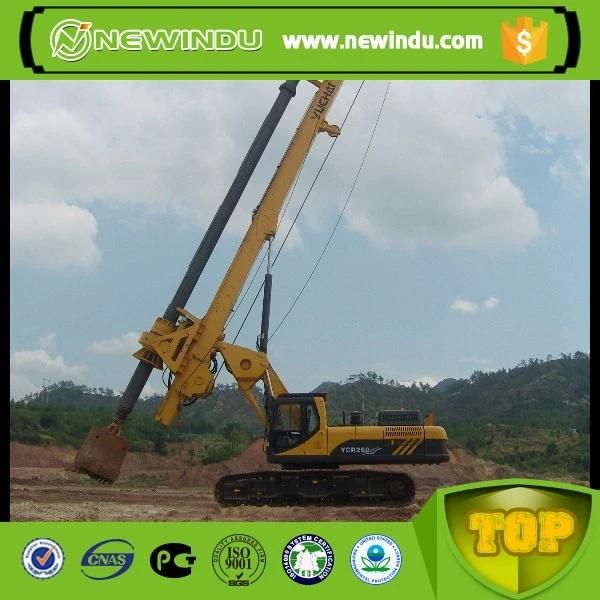

Yuchai 150KN torque water drilling rig machine price
Excellent Performance
YCR150 is powered by turbo direct injection and inter-cooled engine QSB6.7 imported form . According to different geological conditions, it can go on post-grouting pile construction with dry excavation or slurry wall protection.
Main characteristics
Operating weight: 45.5 tons.
Achieving the optimal working status with international advanced power system.
Energy conservation, environment protection, less mud, fast cleaner by adopting energy-saving design.
Max torque: 150kN.m
Automatic detection of the mast verticality and drilling depth.
Compact construction.
Advanced monitoring system.
Safety and reliability.
Stable performance and easy operation.
High construction efficiency.
Convenient transportation.
