Piling Machine Pile Diameter 4m Pile Depth 150m Rotary Drilling Rig (SR580R-H11)

Evangel Industrial (Shanghai) Co., Ltd.

After-sales Service：1 Year
Warranty：1 Year
Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
Condition：New
Drill Hole Diameter：>300mm
Drill Hole Depth：100-150m

Base Info

Model NO.：SR580R-H11
Bit Type：Drag Bit
Drilling Way：Rotary
Type：Crawler
Engine Power：470kw
Max. Pile Depth：150,125,100m
Lifting Capacity：550kn
Operating Weight：230t
Transport Package：Nude
Specification：CE, ISO
Origin：China, Hunan
HS Code：8430509000
Production Capacity：50 Sets,Month

Description

3500/4000mm
150/125/100m

580kN·m
6~38rpm

460kN
550kN
11500mm

550kN
50mm
54m/min

C18
470/1800kW/rpm
Tier III

37860mm
230T
3900mm
3640mm
Pictures

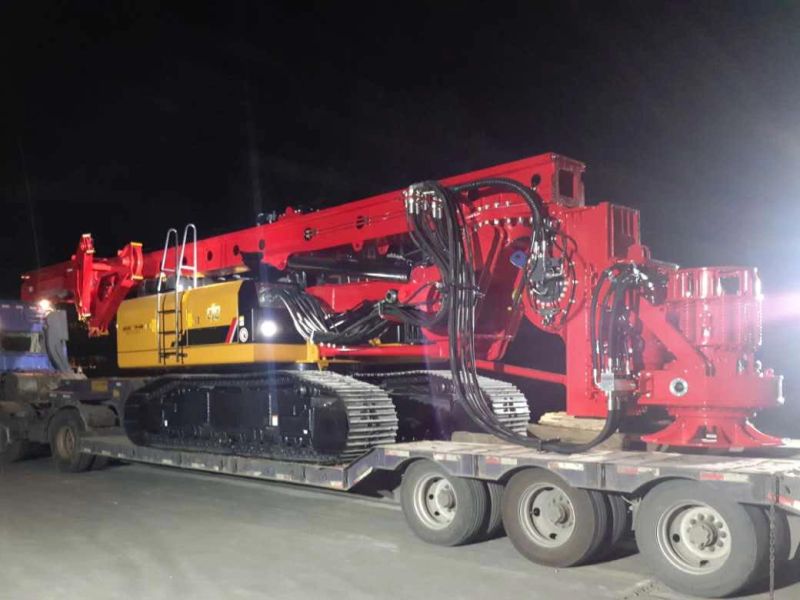

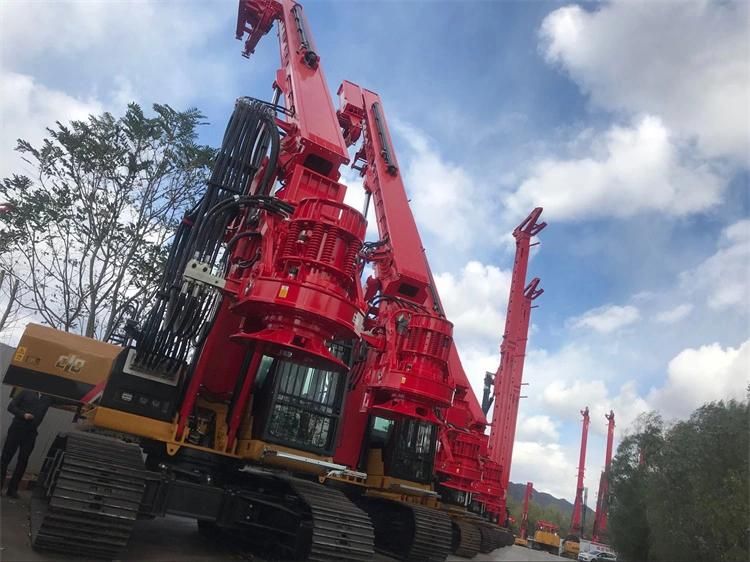

Piling Machine Pile Diameter 4m Pile Depth 150m Rotary Drilling Rig (SR580R-H11)

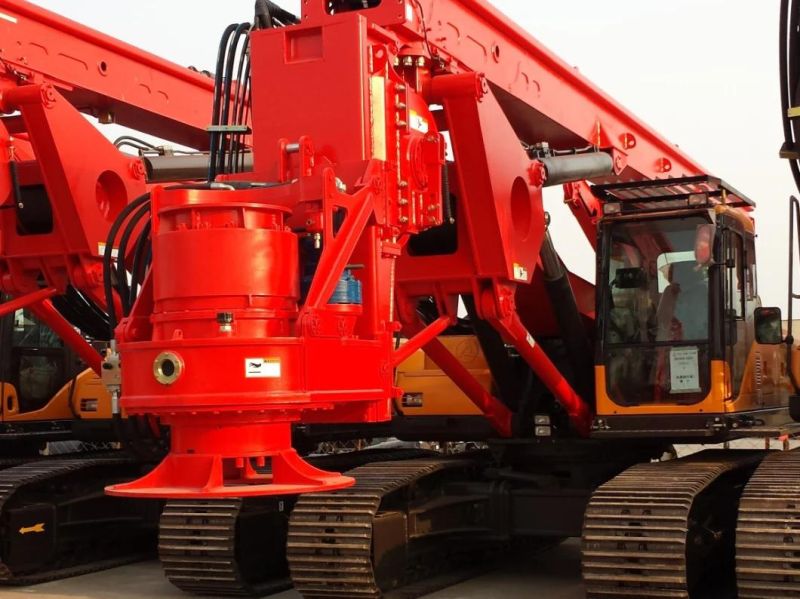

Piling Machine Pile Diameter 4m Pile Depth 150m Rotary Drilling Rig (SR580R-H11)

Product Map
Piling Machine Pile Diameter 4m Pile Depth 150m Rotary Drilling Rig (SR580R-H11)

Our Factory Piling Machine Pile Diameter 4m Pile Depth 150m Rotary Drilling Rig (SR580R-H11)
