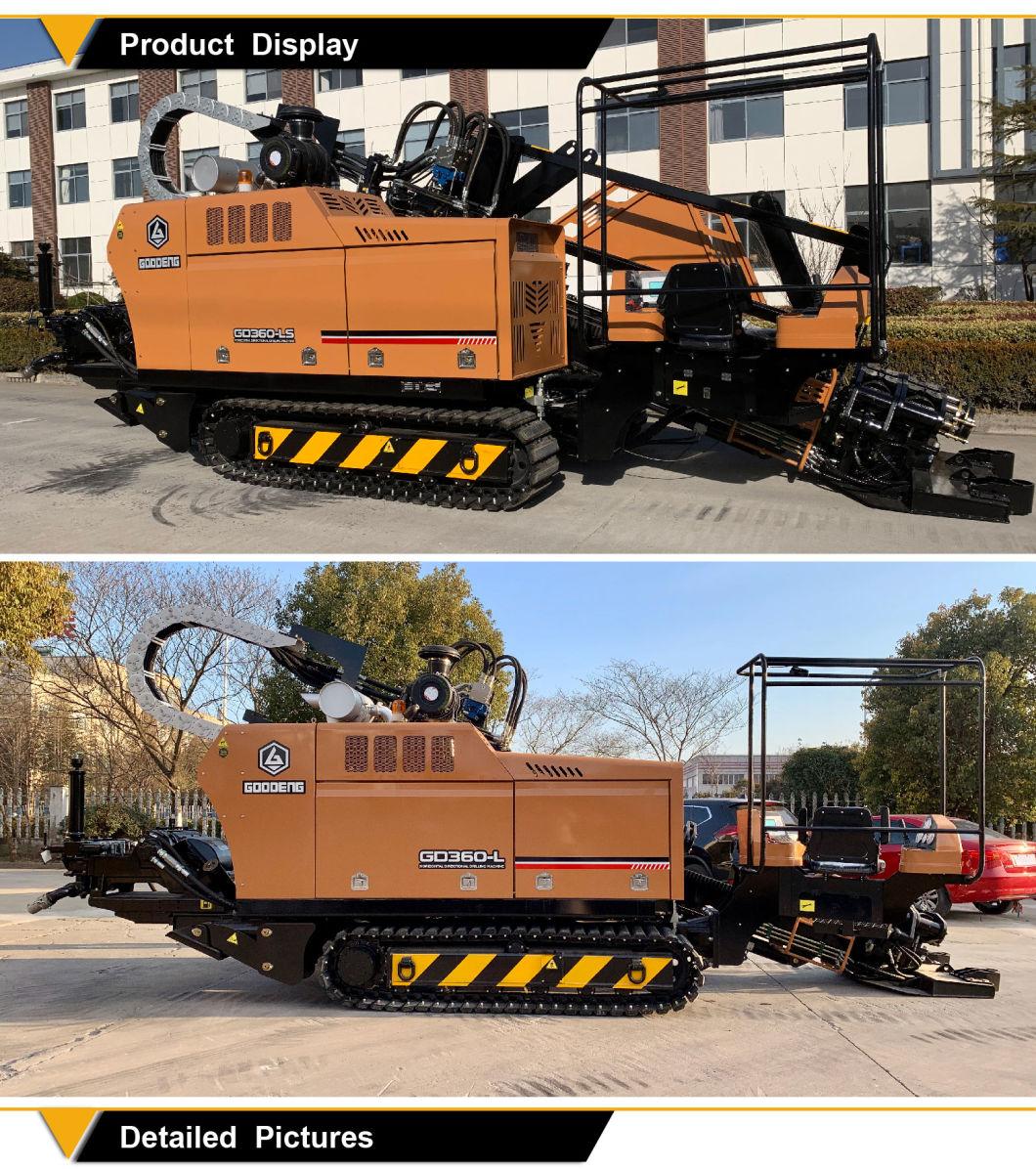

Goodeng 36T hdd rig GD360-L/LS Trenchless Machine

Jiangsu Goodeng Heavy Machinery Equipment Technology Co., Ltd.
  • After-sales Service：provided
  • Warranty：provided
  • Certification：ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：1200 mm
  • Drill Hole Depth：450 m

Base Info

  • Model NO.：GD360-L,LS
  • Bit Type：Drag Bit
  • Drilling Way：Rotary
  • Type：Track
  • Engine Power：153,154 kW
  • Max. Torque：14000 N.m
  • Max. Mud Pump Flow：400 L,Min
  • Transport Package：Nude Packing
  • Specification：7300*2230*2310 mm
  • Trademark：Goodeng
  • Origin：China
  • HS Code：843041
  • Production Capacity：2000,Year

Description

Rig Weight9500/10500 kgDimension(L*W*H)7300*2230*2310(mm)Max. Push&Pull Force380/760 kNMax. Torque14000 N·mMax. Push&Pull Speed36 m/minMax. Rotation Speed135 r/minEngine Power153 kW/154 kWMax. Mud Pump Flow400 L/min Walking Speed2.5-4.0(km/h)Max. Mud Pump Pressure8 MpaEntry Drill Angle13°-23°Max. Climbing Gradient18°Max. Aperture Diameterø1200mm(Soil Depended)Max. Crossing length450m(Soil Depended)
Goodeng 36T hdd rig GD360-L/LS Trenchless MachineGoodeng 36T hdd rig GD360-L/LS Trenchless MachineGoodeng 36T hdd rig GD360-L/LS Trenchless MachineGoodeng 36T hdd rig GD360-L/LS Trenchless MachineGoodeng 36T hdd rig GD360-L/LS Trenchless MachineGoodeng 36T hdd rig GD360-L/LS Trenchless Machine

1. What about the warranty time?

    A:12 months after shipment or 2000 working hours,whichever occurs first.

2. What about the delivery time?

    A:10-20 days after receiving the deposit.

3.What kind terms of payment can be accepted?

    A: On T/T term, 30% down payment is required in advance, and 70% balance shall be before shipment, or against the copy of original BL for old client.

        On L/C term, 100% irrevocable L/C without "soft clause" can be accepted.

4.What logistics ways we can work for shipment?

    A: We can ship machine by sea and road.

 5. What about the after-sales service?

    A: We have office and professional after-sales service team in many countries. After you receiving the new machine, we will provide you one engineering training installation and debugging service for 3-5days. If there are some problems, our after-sales service team will arrive the project site in shortest time.
