• Model NO.：DR-150
• Type：Crawler or Wheel
• Usage：Pile Driver, Drill Hole Flling Pile Construction
• Engine：Cummins
• Drilling Diameter：500-1800mm
• Power Source：Diesel
• Color：Customized
• Weight：30t
• Depth：30m
• Chassis Length：4200mm
• Track Width：600mm
• Power Head Speed：10-50rpm
• Drill Rod Type：Lock
• Transport Status Width：4200mm
• Transport Status Height：3500mm
• Working State Width：4200mm
• Length of Thansport Status：13000
• Transport Package：Rotary Drilling Rig Package According to The Custo
• Specification：12500mm*2800mm*3550mm
• Trademark：DingLi
• Origin：China
• HS Code：8430509000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DR-150 Type Crawler or Wheel Usage Pile Driver, Drill Hole Flling Pile Construction Engine Cummins Drilling Diameter 500-1800mm Power Source Diesel Color Customized Weight 30t Depth 30m Chassis Length 4200mm Track Width 600mm Power Head Speed 10-50rpm Drill Rod Type Lock Transport Status Width 4200mm Transport Status Height 3500mm Working State Width 4200mm Length of Thansport Status 13000 Transport Package Rotary Drilling Rig Package According to The Custo Specification 12500mm*2800mm*3550mm Trademark DingLi Origin China HS Code 8430509000 Production Capacity 20 Sets/Month

Product Description

Product Details

The drilling rig has a maximum depth of 30 meters and is equipped with a retractable chassis. The drilling diameter is 500-1600 mm. It is suitable for comprehensive civil engineering. The company's products have been exported to more than 30 countries and regions and are widely recognized by the international market. For more information,  welcome your inquiry!





 Features
1.Excellent performance, fast lifting, large lifting weight, drilling rig can be 360 degree rotary construction.

2.Full hydraulic system control can ensure that all indexes of pile foundation verticality, hole position, hole depth and sedimentation thickness meet the requirements of construction specifications.

3.Driving power is strong, the power head acts directly on the drill bit and keeps the torque unabated during piling.

4.The hole wall drilled by rotary drilling rig has good stability, complete hole cleaning after hole completion and fast construction progress.


5.Small investment,quick gains:
The utility model also has high cost performance, wide application scope and high social and economic benefits;

6.The characteristic of stabilization, credibility, speediness and high capability which makes the Rotary Drilling Rig is favored.

Parameter


model	DR-150
Working mode	hydraulic oil cylinder pressure
Drilling diameter (mm)	Φ500-Φ1800
drilling depth (m)	5-40m
Diamension (mm)	12500X2800X3550mm
Total weight (t)	30T
Power head max output torque (KN.m)	150KN.m
Rotary speed (r/min)	10-50RPM
Main winch max lifting force	150KN
Main winch max lifting speed	50m/min
Assisting winch max lifting force	15KN
Assiting winch max lifting speed	50m/min
Mast sidewards inclination	±4°
Mast forwards inclination	4°
Max working pressure	32Mpa
pilot pressure	3.5Mpa
Travelling speed (km/h)	4 km/h
Diesel engine power (KW)	158KW ,cummins ,water cooling ,turbo charger

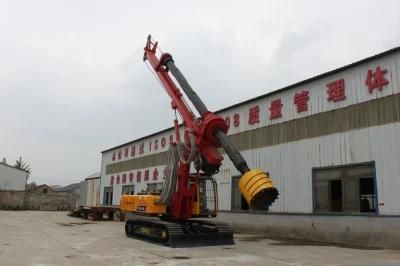

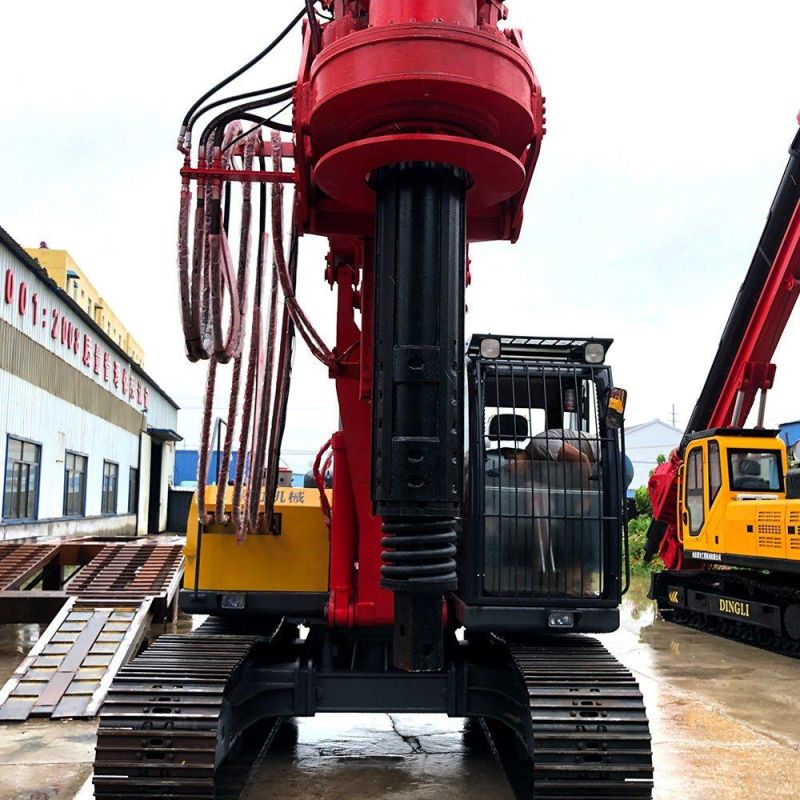

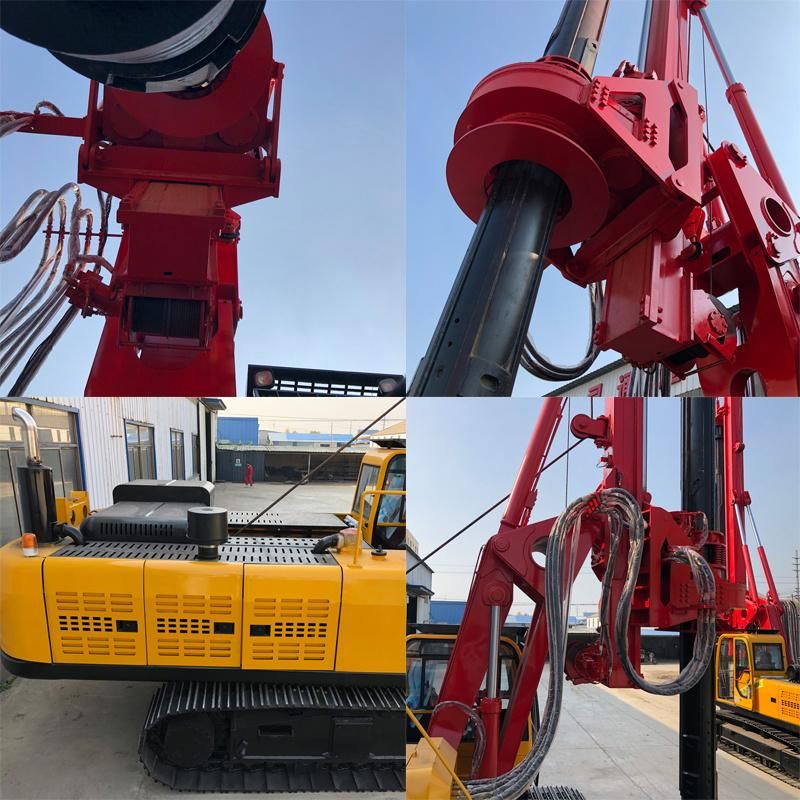

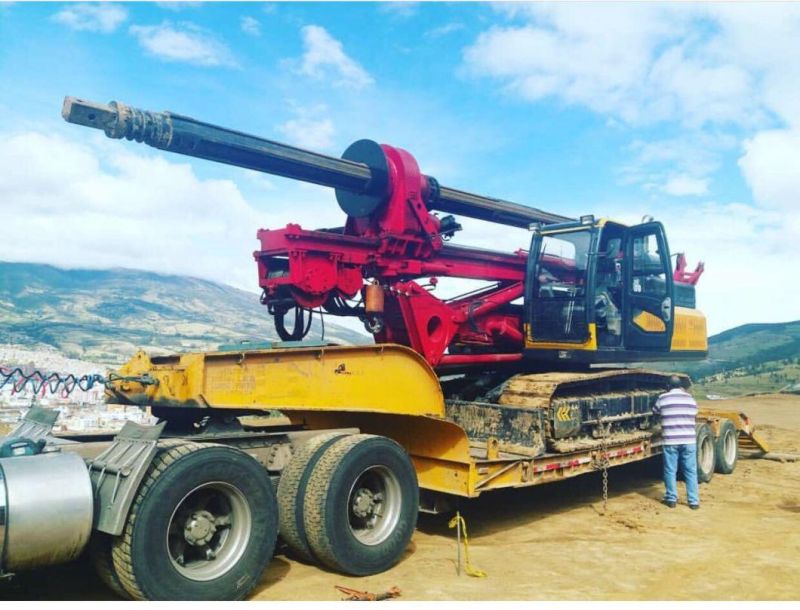

Machine Photos

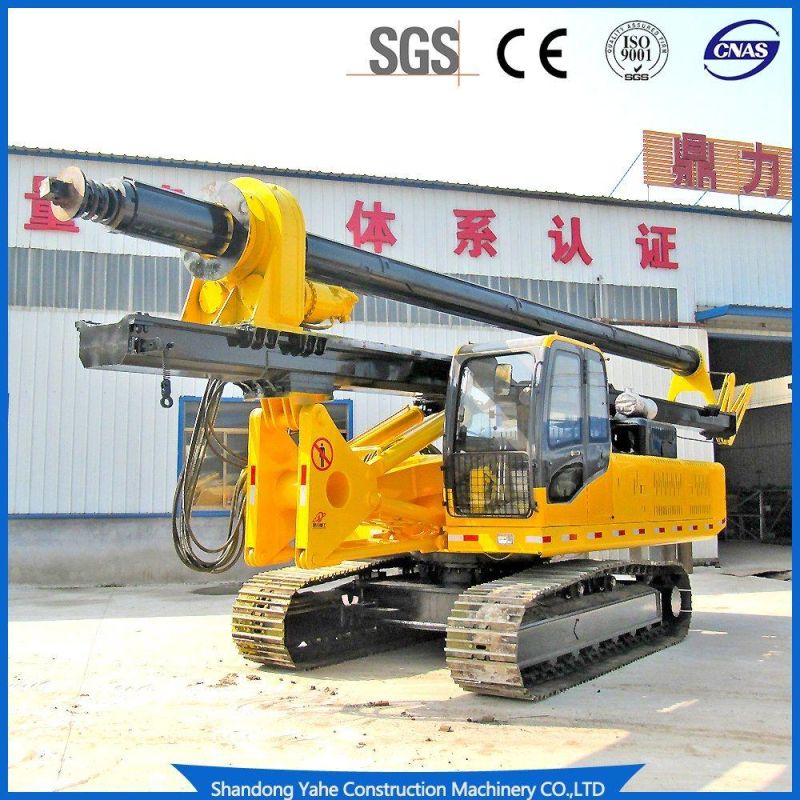

Certification

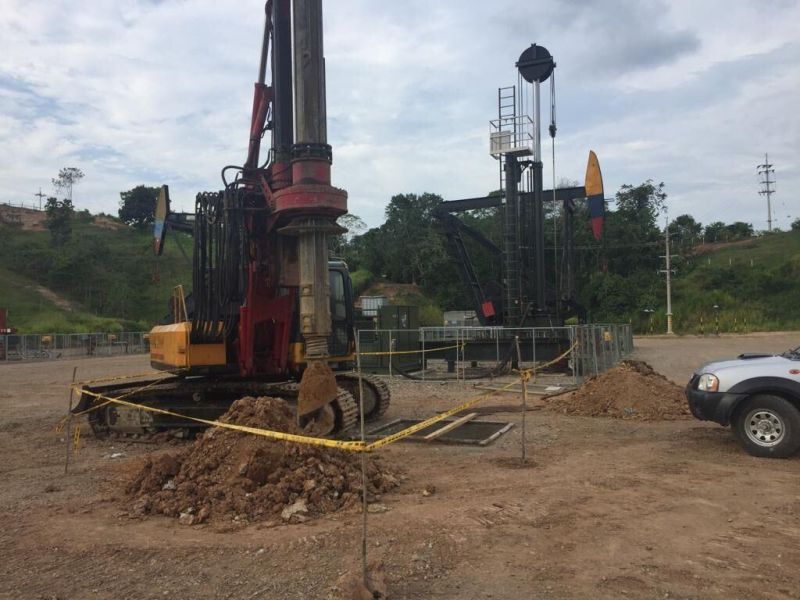

Working video

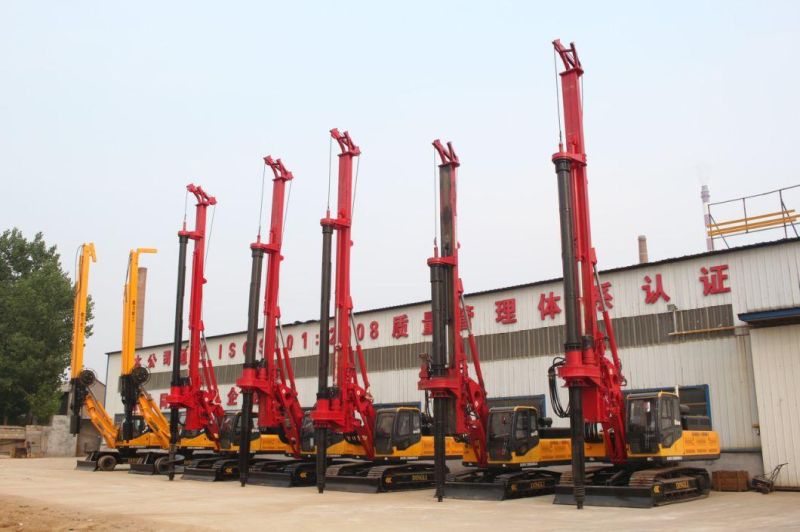

 Company profile

    Shandong Yahe Construction Machinery Co., Ltd. is a leading enterprise focusing on the development and manufacture of small and medium-sized pile machinery. It is a modern high-tech enterprise with complete qualifications, advanced production technology and perfect after-sales service in southern Shandong. In the same industry, we have passed ISO 9001:2008 quality management system certification. Products include crawler rotary drilling rig, wheel rotary drilling rig, long screw rotary drilling rig and diesel hammer pile driver and other engineering machinery. DR series small rotary drilling rigs and DL square rod series rotary drilling rigs are widely recognized and praised by customers.



 FAQ


1.Q: Are you a manufacturer?

A: Yes, we are a professional rotary drilling rig  manufacturer.

2.Q: What does your company produce?

A: The main products of our company include rotary drilling rig.

3.Q: How about your delivery time?

A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.

4.Q: What methods of payment do you accept?

A: We accept T/T, L/C.

5.Q: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price
