Crawler Type Engineering Drilling Machine for Municipal Construction
Shandong Yahe Construction Machinery Co., Ltd.- Certification:CE, RoHS, ISO 9001:2000, ISO 9001:2008
- Condition:New
- Drill Hole Diameter:>300mm
- Drill Hole Depth:5-30m
- Bit Type:Twist Bit and Barrel Drill
- Drilling Way:Rotary
Base Info
- Model NO.:DR-120
- Type:Crawler or Wheel
- Usage:Pile Driver,Drill Hole Flling Pile Construction
- Engine:Cummins
- Drilling Diameter:500-1800mm
- Power Source:Diesel
- Transport Package:Rotary Drilling Rig Package According to The Custo
- Specification:11500mm*2800mm*3400mm
- Trademark:DingLi
- Origin:China
- HS Code:8430509000
- Production Capacity:20 Sets,Month
Description
Basic Info.
Model NO. DR-120 Type Crawler or Wheel Usage Pile Driver,Drill Hole Flling Pile Construction Engine Cummins Drilling Diameter 500-1800mm Power Source Diesel Transport Package Rotary Drilling Rig Package According to The Custo Specification 11500mm*2800mm*3400mm Trademark DingLi Origin China HS Code 8430509000 Production Capacity 20 Sets/MonthProduct Description
Product Details

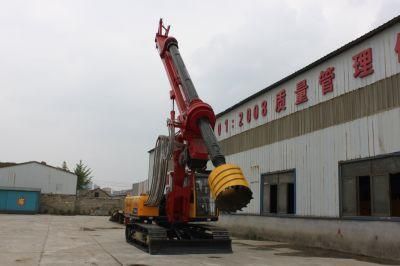

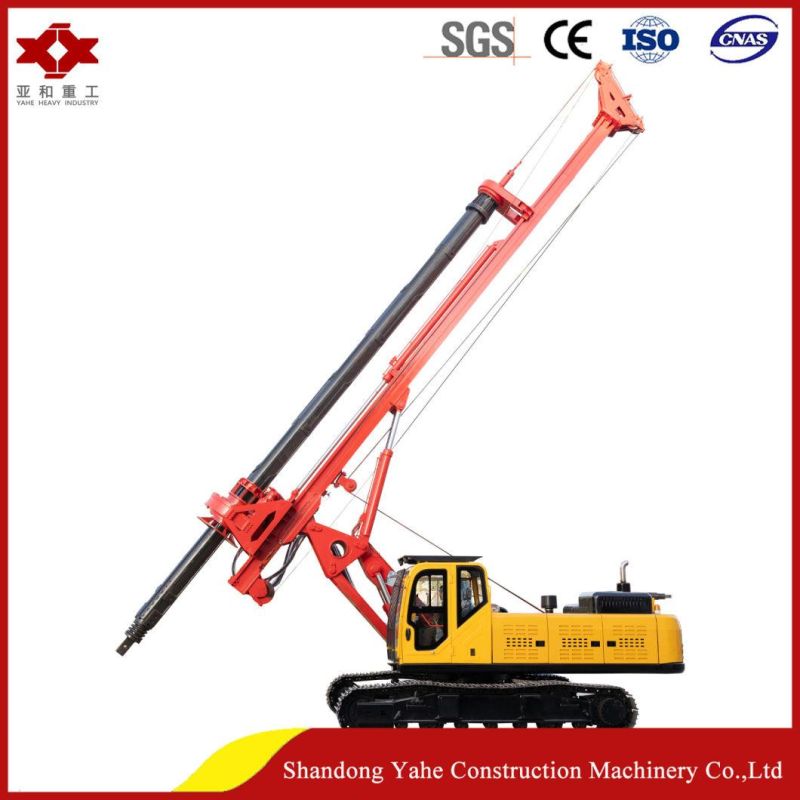

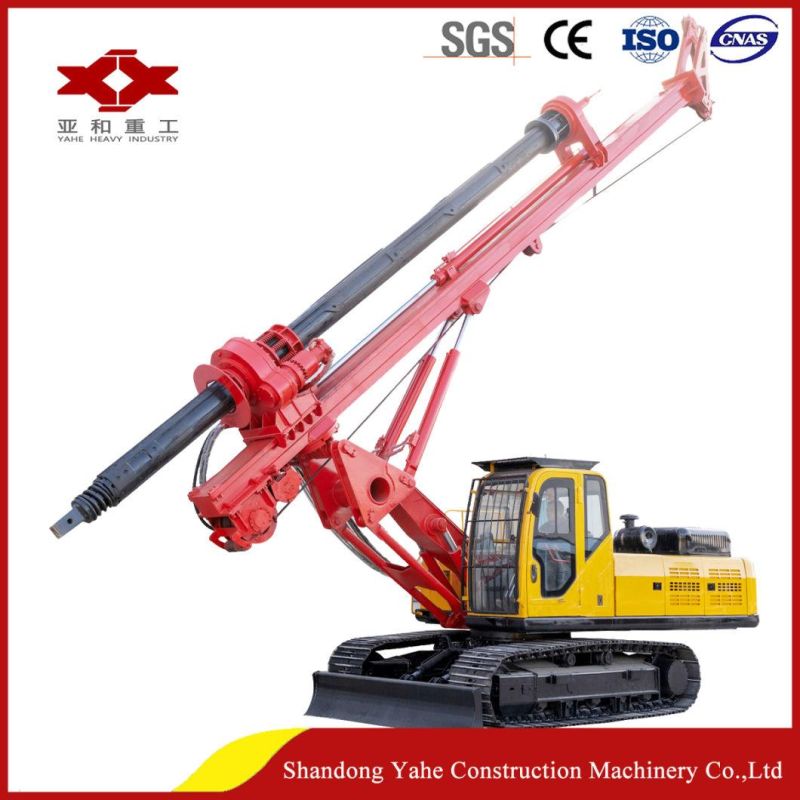

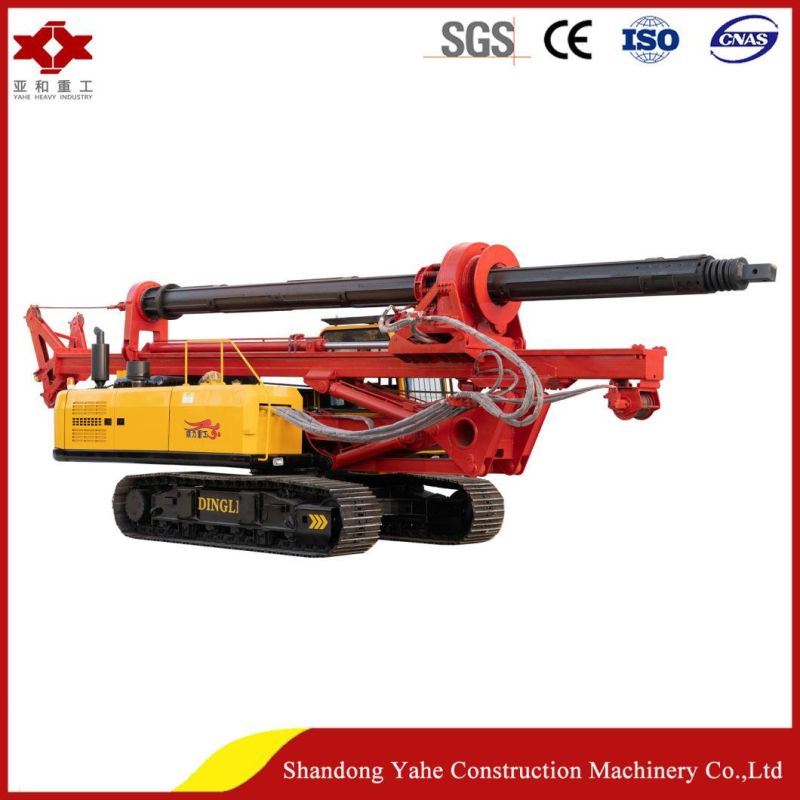

1.Full hydraulic crawler type rotary drilling rig adopt pressurized drilling mode, enabling rotary drilling depth is 5~50m. matching the different specifications of drilling tools, pile hole diameter range up to 500-1800mm.
2.Powered by Ameraic engine with rated power from 121 kW@2400 rpm to 191 kW@2400 rpm, power efficiency is significantly improved.
Maximum output torque reaches 150kN.m, maximum pile depth of friction is 50m, pile depth of interlocking is 40m.
New design of main winch delivers faster line speed of 70m/min, bigger lifting power with 200kN line pull.
3.This machine is applicable to slop shield piles,civil construction, new rural construction, municipal construction,and the strata contain:soil, clay, fill soil, silt, silt layer, and even some geology with pebbles, gravel; widely used in high-speed rail trestle piles, slop shield piles, photovoltaic power station foundation pile, power grids, landscaping and other projects.
4.Safe and reliable

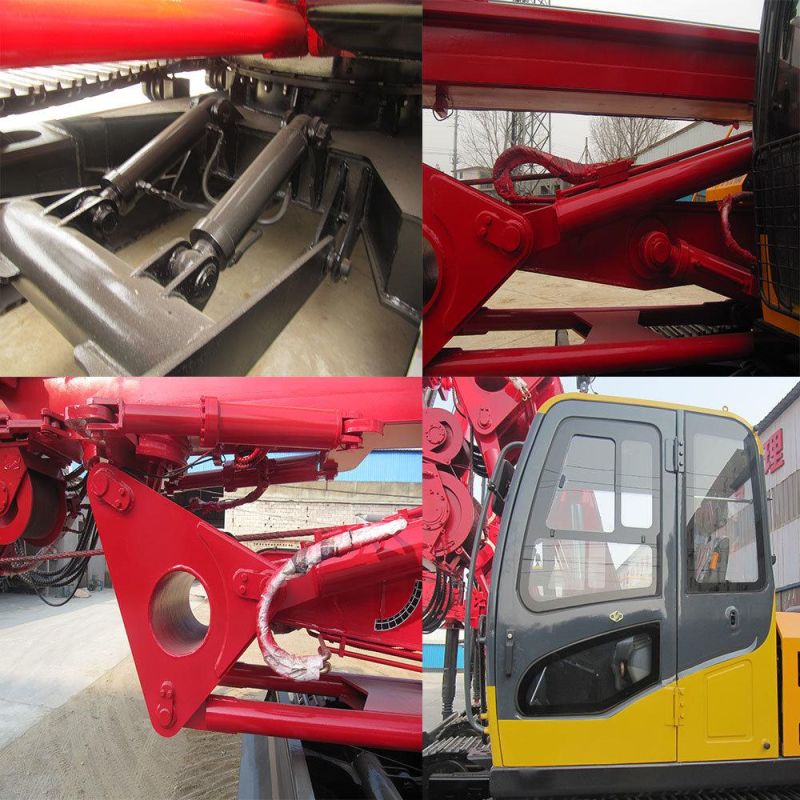

The new generation rotary drive adopts multi-gear control, self-adaptive techniques, and double buffering system which can increase drilling efficiency and safety.
Highly automatization system, advanced hydraulic system and heavy wide chassis ensure efficient, safe and stable operation.
Excellent master worker ensure high precision and quality of the core components.
Features
1.Excellent performance, fast lifting, large lifting weight, drilling rig can be 360 degree rotary construction.
2.Full hydraulic system control can ensure that all indexes of pile foundation verticality, hole position, hole depth and sedimentation thickness meet the requirements of construction specifications.
3.Driving power is strong, the power head acts directly on the drill bit and keeps the torque unabated during piling.
4.The hole wall drilled by rotary drilling rig has good stability, complete hole cleaning after hole completion and fast construction progress.
5.Small investment,quick gains:
The utility model also has high cost performance, wide application scope and high social and economic benefits;
6.The characteristic of stabilization, credibility, speediness and high capability which makes the Rotary Drilling Rig is favored. Parameter
Working mode | hydraulic oil cylinder pressure |
Drilling diameter (mm) | Φ500-Φ1800 |
drilling depth (m) | 5-30m |
Diamension (mm) | 11500X2800X3400mm |
Total weight (t) | 25T |
Power head max output torque (KN.m) | 120KN.m |
Rotary speed (r/min) | 10-50RPM |
Main winch max lifting force | 150KN |
Main winch max lifting speed | 50m/min |
Assisting winch max lifting force | 15KN |
Assiting winch max lifting speed | 50m/min |
Mast sidewards inclination | ±4° |
Mast forwards inclination | 4° |
Max working pressure | 32Mpa |
pilot pressure | 3.5Mpa |
Travelling speed (km/h) | 4 km/h |
Diesel engine power (KW) | 151KW ,cummins ,water cooling ,turbo charger |
Our service
1. Pre-sale service:
1) DingLi will provide production design, quotation sheet, working sites video, machinery photos.
2) Welcome to visit us at any time, we will pick you up.
2. Sale service:
1) Keep clients updated when our company gets advance payment.
2) Confirm production details with clients.
3) Take photos and send all pictures to customers during production.
4) Inspection and testing the product before delivery;
5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.
6) logistics service if needed.
3. After Sale service:
1) Provide foundation drawing to the clients for installation.
2) Besides, our engineers are available to help with installation and workers training.
3) Repairing and maintenance if any problem during the warranty.
Company profile
Shandong Yahe Construction Machinery Co., Ltd. is a leading enterprise focusing on the development and manufacture of small and medium-sized pile machinery. It is a modern high-tech enterprise with complete qualifications, advanced production technology and perfect after-sales service in southern Shandong. In the same industry, we have passed ISO 9001:2008 quality management system certification. Products include crawler rotary drilling rig, wheel rotary drilling rig, long screw rotary drilling rig and diesel hammer pile driver and other engineering machinery. DR series small rotary drilling rigs and DL square rod series rotary drilling rigs are widely recognized and praised by customers.
Shandong Yahe Construction Machinery has been devoted to the development and improvement of rotary drilling rigs for many years, and has passed the CE certification of the European Union. It is widely used in the construction projects of urbanization, metro, viaduct, high-rise buildings, residential buildings and other fields. Rotary drilling rig is highly praised by customers at home and abroad for its high construction efficiency, energy saving, environmental protection and reliable performance. The equipment has been exported to more than 10 countries and regions overseas, such as Australia, Saudi Arabia, Myanmar, Bangladesh and Sudan, and has become a pile foundation facility serving global engineering construction and "new urbanization". Optimum equipment for engineering.
FAQ
1.Q: Are you a manufacturer?
A: Yes, we are a professional rotary drilling rig manufacturer.
2.Q: What does your company produce?
A: The main products of our company include rotary drilling rig.
3.Q: How about your delivery time?
A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.
4.Q: What methods of payment do you accept?
A: We accept T/T, L/C.
5.Q: Do you offer any deals or discounts?
A: Yes, price depends on different quantity, different quantity will give you different price.
