Brand New Drilling Machine Newindui Horizontal Directional Drilling Xz280
Newindu Construction Engineering (Shanghai) Co., Ltd.- After-sales Service：Online Service
- Warranty：One-Year Warranty
- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Drill Hole Diameter：250-300mm
- Drill Hole Depth：30-50m
Base Info
- Model NO.：XZ280
- Bit Type：Diamond Bit
- Drilling Way：Compound
- Type：Crawler
- Spindle Torque ：1000n.M
- Backreaming Dismeter：750mm
- Bore Diameter：400m
- Tubing Length：3m
- Transport Package：Nude
- Specification：6400x2270x2340mm
- Trademark：NEWINDU
- Origin：Jiangsu
- HS Code：84306919
- Production Capacity：10
Description
Basic Info.
Model NO. XZ280 Bit Type Diamond Bit Drilling Way Compound Type Crawler Spindle Torque 1000n.M Backreaming Dismeter 750mm Bore Diameter 400m Tubing Length 3m Transport Package Nude Specification 6400x2270x2340mm Trademark NEWINDU Origin Jiangsu HS Code 84306919 Production Capacity 10Product Description
brand new newindu Horizontal Directional Drilling XZ280Description
1.Pullback/thrusting:280/280KN.m
2.Engine:140 kw Shangchai
3.Spindle torque:10000N.m
4.Backreaming diameter:750mm
140kw engine, 280kN of push-pull, 10000N.m of Max.spindle torque, motor dual speed chain push-pull system, self-propelled rubber tracks chassis, automatic loading and unloading drill rod device, rotatable control board, patent technology for floating vice, and onboard high-capacity mud pump (250L/min).
Parameter
Model | XZ280 |
Engine | Shangchai D6114ZG |
Rated power | 140kw/2300rpm |
Max.pullback/thrusting | 280/280KN |
Spindle torque (max) | 10000N.m |
Spindle speed | 0~120r/min |
Bore diameter (max) | 400m |
Backreaming dismeter | 750mm |
Tubing length (single) | 3m |
Tubing diameter | 73mm |
Entry angle | 10~23° |
Mud flow rate (max) | 250L/min |
Mud pressure (max) | 80bar |
Overall weight | 12500kg |
Dimension (L×W×H) | 7208×2200×2450mm |

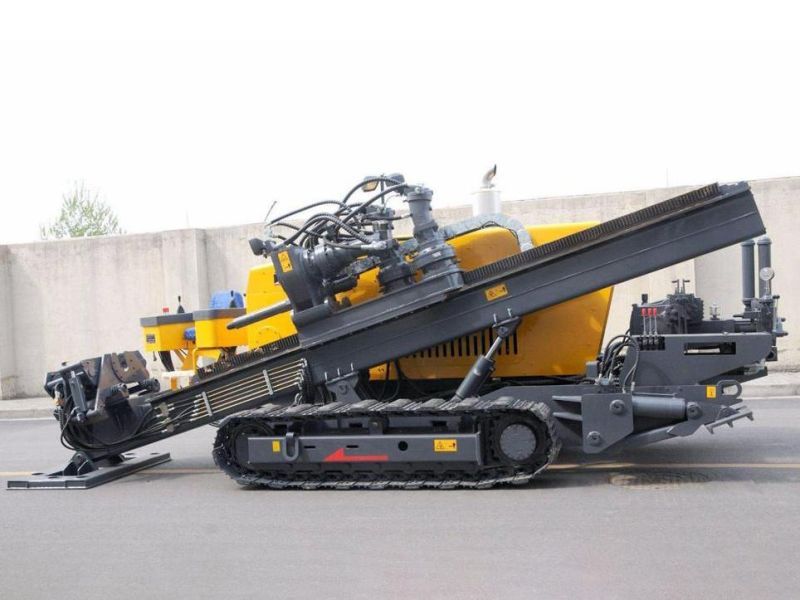

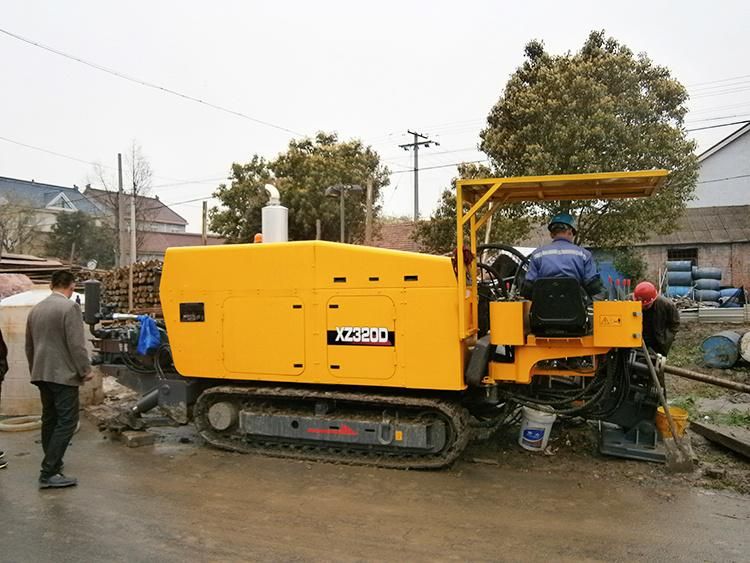

Product image
