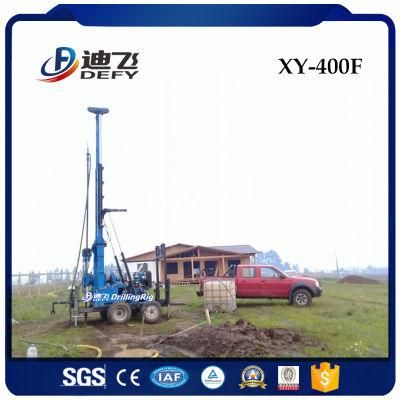

• Model NO.：XY-400F
• Type：Four-Wheel trailer
• Usage：Water Well
• Voltage：Customized
• Power(W)：24HP
• Weight：3000kgs
• Warranty：One Year
• Diesel Engine：24HP, 2200r,Min
• Application：Water Well, Soil Sampling, Pile Foundation etc
• Stratum：Gravel, Soil, Sand, Hard Rock etc
• Control System：Hydraulic System.High Efficiency
• Color：Green,Blue,Yellow or as Your Requirement
• Transport Package：Container
• Specification：3980*1950*2750mm
• Trademark：DEFY
• Origin：China Henan
• Production Capacity：200 Sets Per Month

1. Main ParametersMax. Drilling Depth400m Diameter of drill pipeΦ42,Φ50,Φ60,Φ76 Angle of vertical spindle0°~90° Drilling capability  Φ75mm drill diameterMax. Depth 400m Φ108mm drill diameterMax. Depth 320m Φ127mm drill diameterMax. Depth 280m Φ168mm drill diameterMax. Depth 220m Φ219mm drill diameterMax. Depth 160m Φ273mm drill diameterMax. Depth 130m Φ400mm drill diameterMax. Depth 100m Φ500mm drill diameterMax. Depth 50m Φ600mm drill diameterMax. Depth 30m 2. Vertical SpindleRotation speedForward 8 grades50-1150r/minReverse 2 grades29-137r/minSpindle stroke600mm Spindle bore62mm Hoisting capability6000kg Max. Torque2800N.m 3. Main hoistLifting speed of single wire0.5-1.9m/s Diameter of wire rope14.0mm Carry capacity of single wire4000kg Diameter of winding drum300mm Volume of winding drum50m Lifting capability of single wire3000kg 4.Auxiliary HoistWinding drum140mm Diameter of steel wire rope6mm Volume of winding drum450m 5. Mud pump(as per your choice)Horizontal triplex mud pumpBW-200II Displacement200L/min Working pressure50kg/cm² @ 5MPa Diameter of water inlet hose65mm Diameter of water outlet hose38mm 6.Power supply(choose one between the following two)Diesel engine17.6kw (24HP) Electrical motorY160L-4,18.5kw 7. Weight and Dimension of main drilling rigWeight3000kg Dimension3980×1950×2750mm 8.Six-wheel TrailerWalking speedLess than 10Km/h Frame carrying capacity8.5 tons Steering wheel 600-14(Single wheel)0.68 tons Bearing wheel 650-14(double wheels)0.9 tons Minimum turing angle6.8m
Related accessories
Certifications
Our Service
Pre-Sales Service
We have QC department, before shipping, goods will be strictly checked.

After-Sales Service

- 24 hours * 7 days online pre & after sale service ;
- Factory site training or engineers go to overseas to train the workers ;

Contact Us
Please don`t hesitate to contact us if XY-400F BoreholeWater Well Drilling Rig with Hydraulic Telescope machine is fit for your business. And you are highly appreciated that if you could tell us more details of your business, then we can recommend most suitable model of drilling rig to you.
