• Model NO.：CMM1-18y
• Drill Hole Depth：>300m
• Bit Type：Diamond Bit
• Drilling Way：Rotary
• Transport Package：International Carton
• Specification：3.5* 0.8* 2.0
• Trademark：JIKAI
• Origin：Shijiazhuang City Hebei Province China
• Production Capacity：1000pieces ,Year

Basic Info.

Model NO. CMM1-18y Drill Hole Depth >300m Bit Type Diamond Bit Drilling Way Rotary Transport Package International Carton Specification 3.5* 0.8* 2.0 Trademark JIKAI Origin Shijiazhuang City Hebei Province China Production Capacity 1000pieces /Year

Product Description

JIKAI Technology Company is Professional
Manufacturer of Underground Mining Equipment

Product Description

1. Product Introduction:

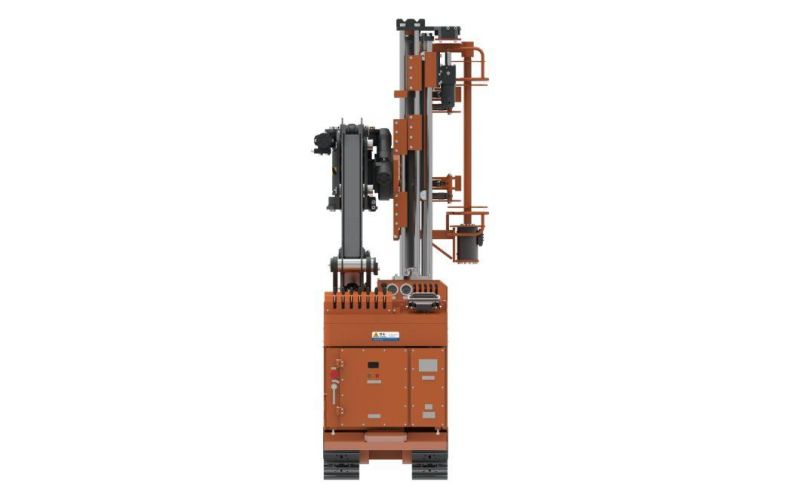

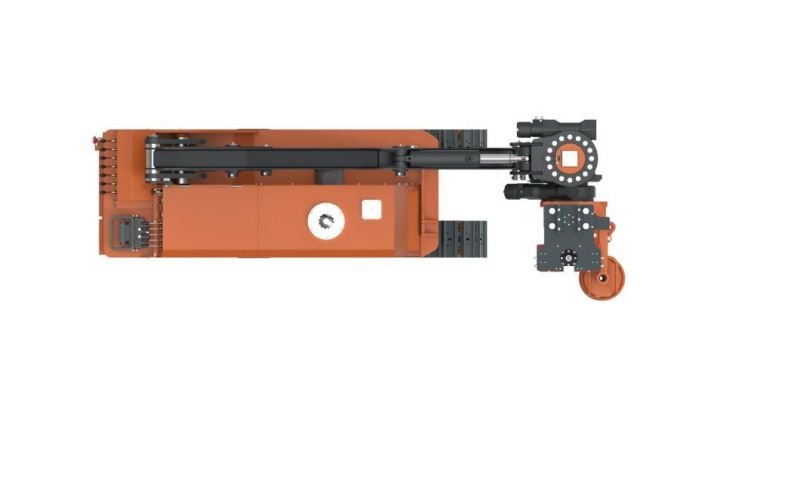

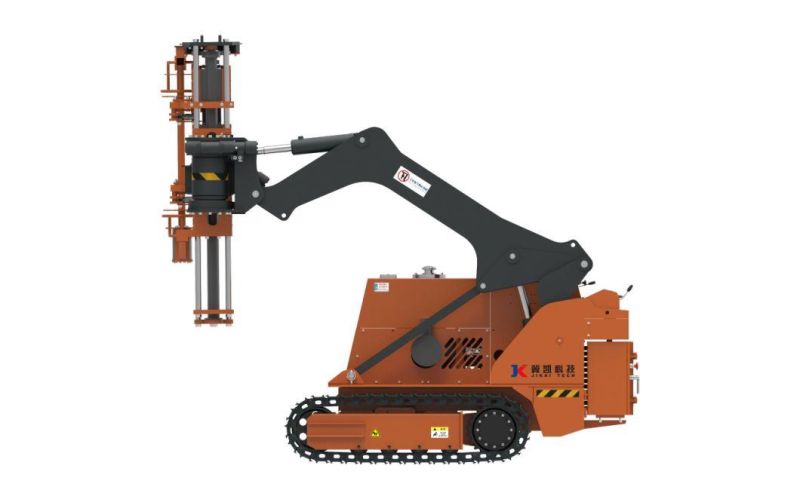

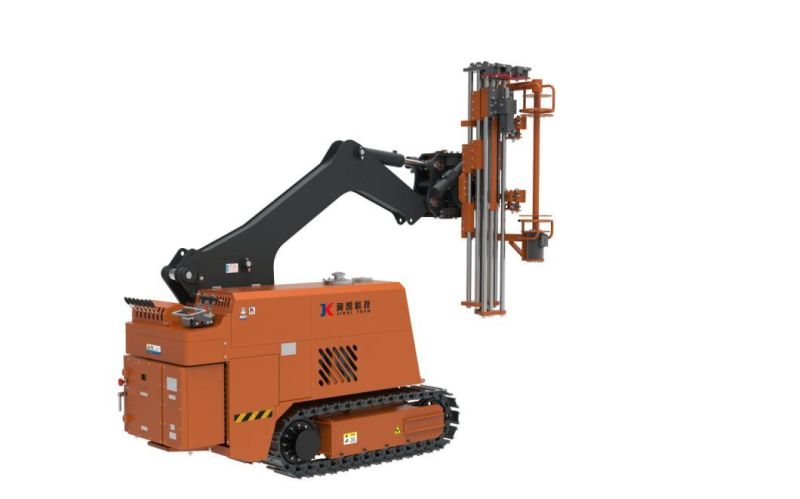

The drilling and bolting jumbo is developed by our company with mature and advanced engineering machinery structure which can be controlled by wireless remote control.It can be used for the mechanized construction of bolts and cables for tunnels with small and medium sections in roadway excavation projects such as coal mines, non-coal mines, tunnels and culverts.

1. Technical features

Flexible
Small size; Light weight; Flexible; Minimum width:0.8m.
Telescopic chassis
Telescopic chassis ;Crawler extension width:1.2m;Good stability.
Single handle operation
Single handle controls the walking of the drill jumbo, which is simple and flexible, and can be operated by wireless remote control.
Easy to position
Four-bar linkage vertical lifting to ensure each hole is in a vertical position when drilling side.
One key drilling
One-key automatic drilling, without manual intervention, equipped with a drill rodstoreroom and a manipulator, automatically connects and disassembles the drill rod, the drilling depth is 11 meters.

1. Parameter:

Item	CMM1-18Y
Boom number	1
Working range height(m)	2.5~4.5
Working range width(m)	≥3
Minimum turning radius in working state(m)	2
Stable width in working state(m)	1.2
Outer edge width of crawler(m)	0.8~1.2
Dimension(L×W×H)(mm)	4000×1200×1850
Weight(Kg)	4000
Power(kW)	22
Rated torque(N·m)	200
Max.torque(N·m)	350
Rated rotational speed(r/min)	500
Propel stroke(mm)	1400
Attitude angel(°)	±180
Rotation angle(°)	±90
Walking speed(km/h)	1.5
Climbing ability(°)	±18

  At present, our company has built an advanced R&D system:Since 2007, the company has realized the network and digitization of R&D and design work;3D solid design and finite element analysis;Implemented product data lifecycle management (PLM);project workflow management; the integration of PLM system and ERP system;the paperless application of drawings and all technical data.
For example: 3D integral casting scraper conveyor not only greatly improves the service life of the scraper, but also promotes the intelligent construction of fully mechanized mining;Anti-gas and anti-groundpressure automatic drilling rig, equipped with remote control and video monitoring system, with real-time data collection functions, with one-key drilling function and anti-stucking functions, suitable for groundpressure prevention;The national III standard explosion-proof diesel engine monorail crane locomotive realizes multi-point direct transportation of hydraulic supports (48T); the drilling and bolting jumbo can drill with one key, and realize the automatic construction of anchor rods and anchor cable holes.
All products have corresponding quality control standards, which are completed simultaneously with design drawings and processes, and are recorded in the information management system.

Each product is marked with a unique permanent laser identification code when it is submitted for inspection. The inspection items and records correspond to each identification code, which realizes:1. Unique product quality identification; 2. Traceability of product quality problems; 3. Lifelong responsibility for product quality; 4. The basis for improvement is accurate and sufficient, and the improvement effect is tracked in place.
In recent years, we have been rated as Hebei Provincial Enterprise Technology Center, Shijiazhuang Coal Mining Machinery Engineering Technology Research Center, Hebei Coal Mine Safety Equipment Engineering Technology Research Center (in preparation), Hebei Coal Mine Safety Equipment Inspection and Testing Platform (in preparation), The public technology research and development platform for coal mining machinery and equipment of the Ministry of Commerce has been fully affirmed by relevant departments in terms of product research and development, quality inspection, engineering technology transformation, and public services.
  In the future, the engineering laboratory will obtain income through technical patents and paid use of new products, undertaking technical engineering research and development tasks for coal mine safety equipment industry, government scientific research funding, technical training and technical services, etc. "The virtuous cycle operation mode, and strive to achieve the sustainable development of the laboratory.
