Borehole Portable Pneumatic Diesel Drilling Crawler Machine Rigs
Shandong JK Machinery Co., Ltd.- Certification：CE, ISO 9001:2008
- Condition：New
- Motor：DC Motor
- Drill Hole Diameter：140-350mm
- Drill Hole Depth：600m
- Bit Type：Diamond Bit
Base Info
- Model NO.：JK-DR600
- Drilling Way：Rotary
- Type：Crawler

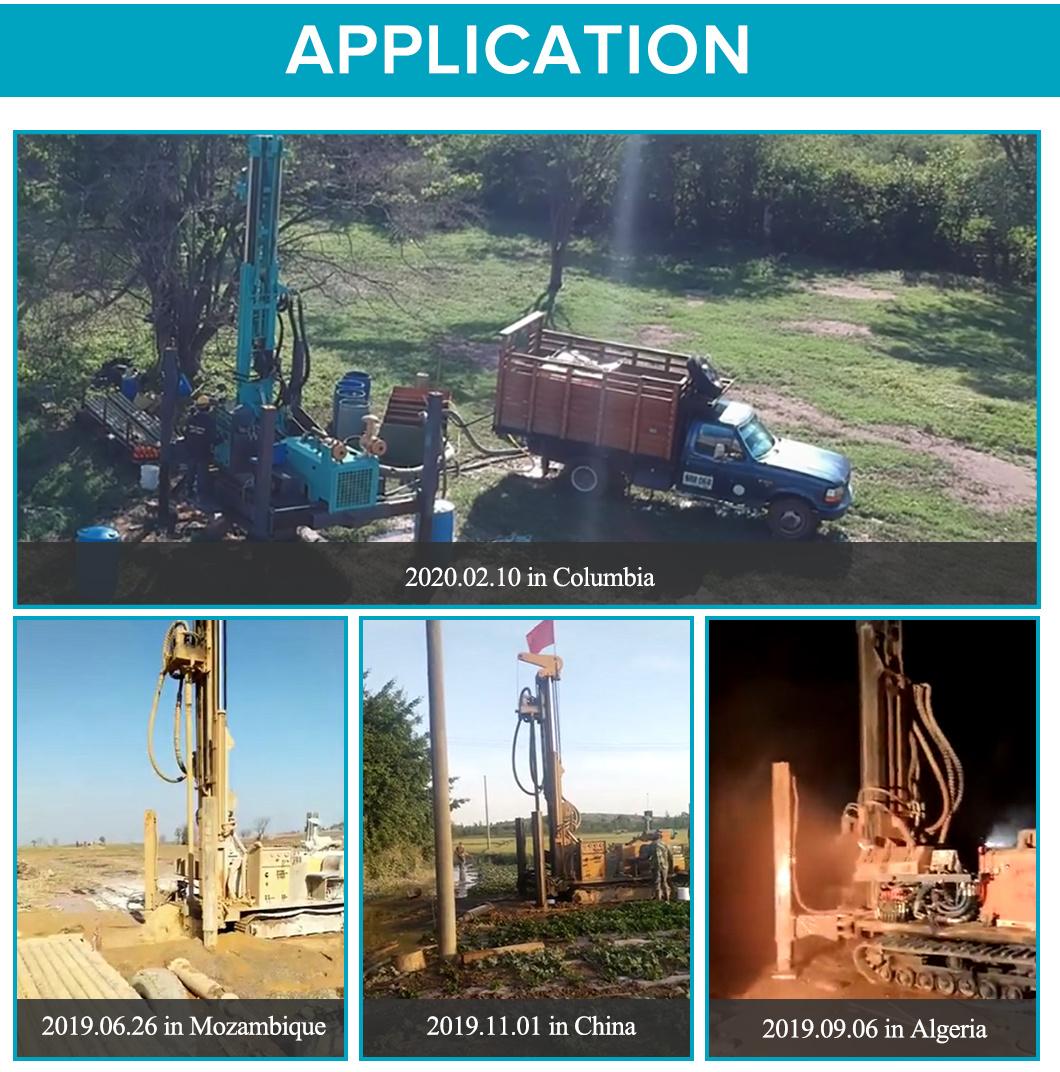

- Usage：Water Well
- Voltage：24V
- Weight：12t
- Warranty：1 Year
- Power Type：Diesel
- Product Name：Water Well Drilling Rig
- Power：132kw

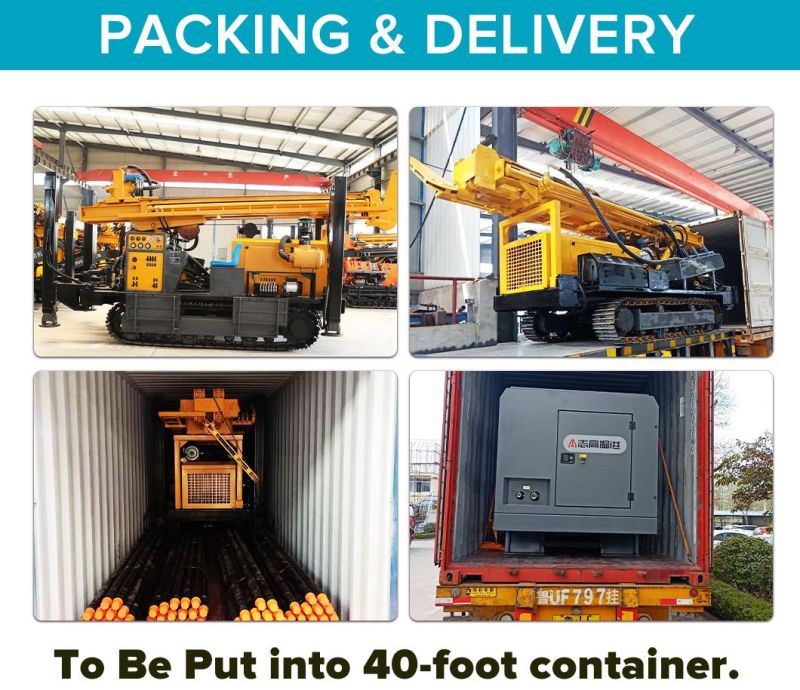

- Transport Package：40hc
- Specification：6000*2200*2850mm
- Trademark：SDJK
- Origin：Shandong
- HS Code：8430419000
- Production Capacity：100sets,Month
Description

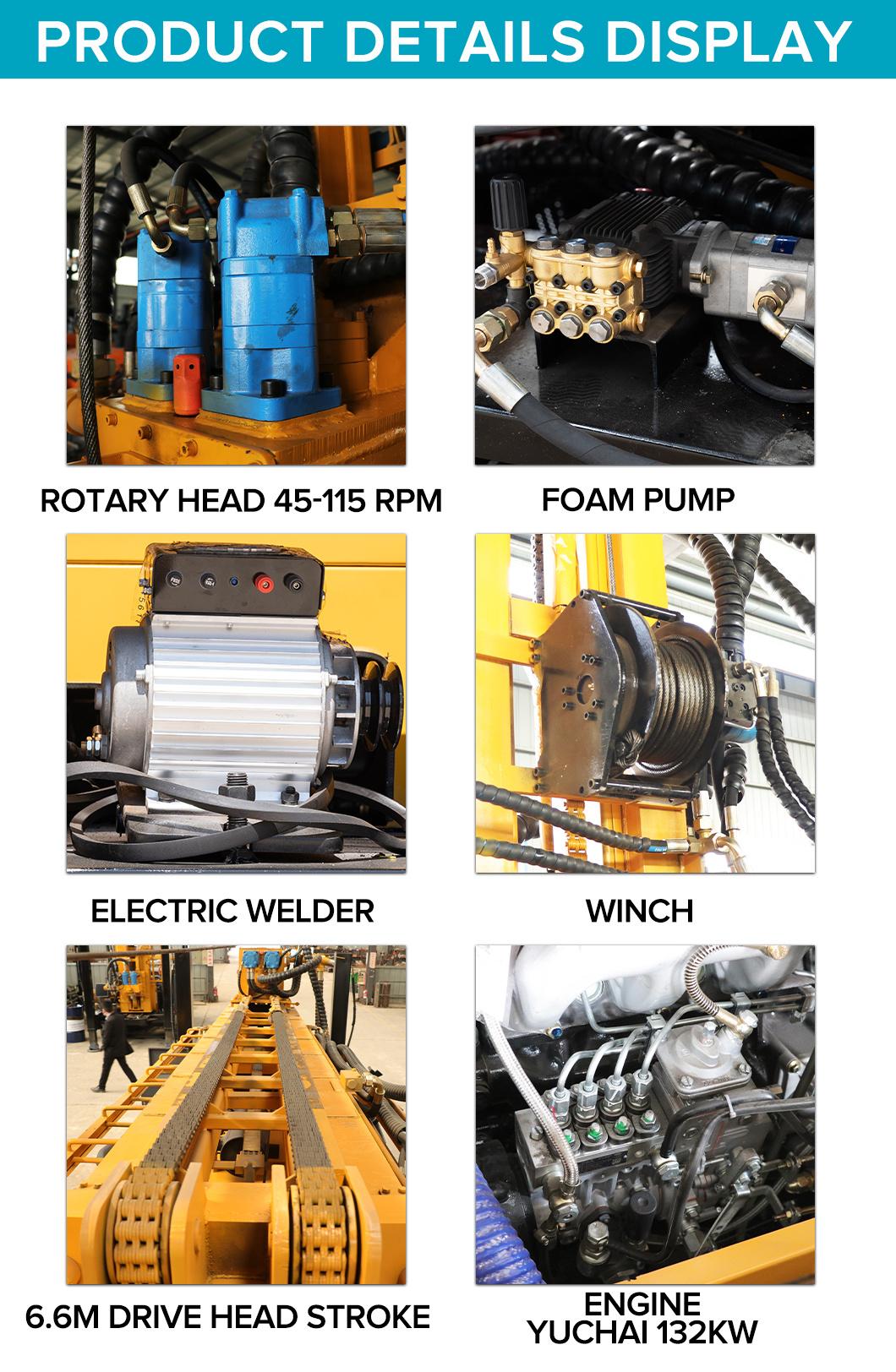

The Main Parameters Model JK-DR600 Weight 12T Bore diameter 140-350mm Drilling depth 600m Stroke 6.6m Travelling speed 2.5km/h Gradeability 30% Power 132KW Rated pressure 1.7-3.5mpa Air consumption 17-35m³/min Drill rod diameter Φ102, Φ108 , Φ114 Drill rod length 1.5m 2.0m 3.0m 6.0m Elevating capacity 28T Swing speed 45-115rpm Swing torque 8500-11000N.M Dimensions 6000*2200*2850mm
