• Model NO.：XJ350
• Condition：New
• Motor：AC Motor
• Drill Hole Diameter：>300mm
• Drill Hole Depth：>300m
• Bit Type：Cone Bit
• Drilling Way：Rotary
• Specification：18.5*2.9*4.2m
• Trademark：Beyond
• Origin：China
• HS Code：8431431000
• Production Capacity：1000pecies,Year
• Package size per unit product：1850.00cm * 290.00cm * 420.00cm
• Gross weight per unit product：510000.000kg

Overview Product Description

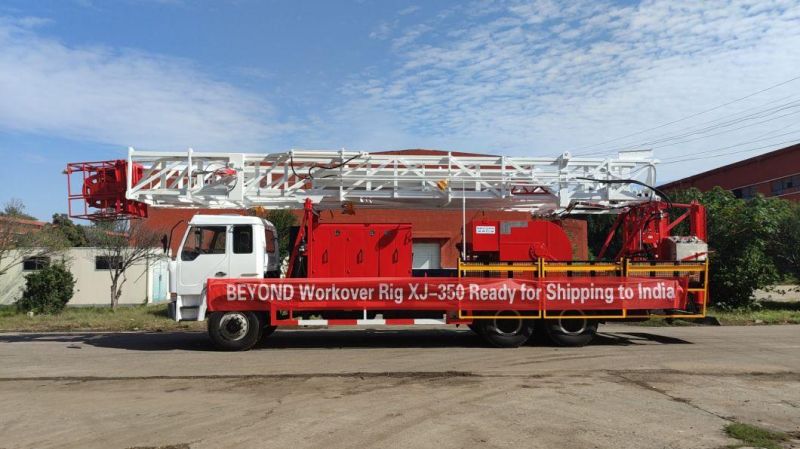

XJ350 Drilling&Workover Rig is the most famous product in international workover rig market. Beyondpetro has developed the XJ350 series based on different chassis, engines and configurations to achieve various types of operation including well workover, well service and well drilling. In Oklahoma, Texas and Kansas, hundreds of XJ350s with American flag colored derricks are standing as the signature of Beyond Petro in United States.



Product ParametersXJ350 Workover Rig (Overhaul)XJ350 Workover Rig (Servicing)Workover Depth3,200m (10,500ft, 2-7/8″DP)2,500m (8,200ft, 3-1/2″DP) Servicing Depth4,000m (13,120ft, 2-7/8″EUE Tubing)Rated Hook Load600kN (134,900 lbf)Max. Hook Load900kN (202,330 lbf)Traveling System3×4 {Φ26mm (1'') Wireline}Hook Hoisting Speed0.25~1.4m/s (0.82~4.6ft/s)Overall Dimensions(l×w×h)18.5×2.9×4.2m60.7ft×9.5ft×13.8 ft18.5×2.85×4.2m60.7×9.4×13.8ftTotal Weight51,000kg (112,440 lb)49,500kg (109,130 lb)Max.Travel Speed45km/h (28mil/h)CarrierSelf-propeller 10×8Engine Model andRated PowerCaterpillar C9260kW (350hp)/2100rpmDetroit S6063298kW (400hp)/2100rpmTransmissionAllison 4700 OFSAllison M5610sDerrick Height31.7m (104ft)Max. Static Load900kN (202,330 lbf)Racking Board Capacity4,000m (13,120 ft, 2-7/8″EUE Tubing)Racking board Height16.8m (55 ft)Drawwork Rated Power224kW (300hp, Double drum)238kW (320hp)Main DrumΦ406×890mm (Φ16″×35'')Φ429×965mm (Φ16.9″×38'')Max. Faster Line Pull180kN (40,470 lbf )Sanding DrumΦ965×264mm (Φ38″×10.4'')Air Assist Brake SystemKOBELT Disc4-7-35″ Caliper 5026-CMKOBELT Disc4-7-48″ Caliper 5026-CMDrill Floor (l×w×h)4.2×4.2×3.7m (13.8×13.8×12.1 ft) Swivel Model and Max. LoadSL90  900kN (202,330 lbf) ZP125 Rotary Table

Max. Load 900 kN (202, 330 lbf

Max. Open Dia. 292mm (11.5")



Features:
1. The mast is available in 31m, 29m or 25m.
2. The chassis has good cross-country performance. The single drum work-over rig is with 8×8 full-driven chassis. The double drum work-over rig is with 10×8 chassis.
3. Workover unit is with the characteristic of reasonable arrangement, compact structure, good transportation performance and easy for field installation and maintenance, etc.
4. The drawworks auxiliary brake is water brake. Pneumatic tong brake and pneumatic water cooling disc brake are optional.
5. Substructure and simple working platform are optional.
