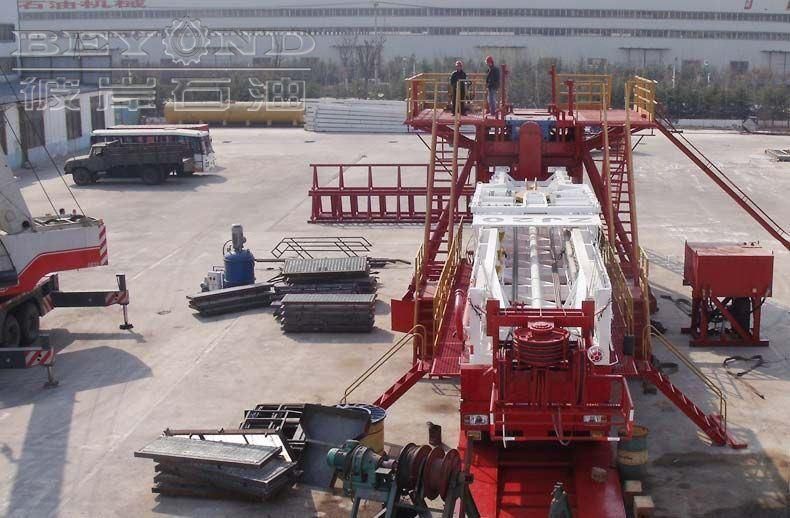

Xj550 Workover Rig for Oilfield

Shandong Beyond Petroleum Equipment Co., Ltd.
  • After-sales Service：1year
  • Warranty：1 Year
  • Certification：API
  • Condition：New
  • Motor：Diesel
  • Drill Hole Diameter：250-300mm

Base Info

  • Model NO.：XJ550
  • Drill Hole Depth：>300m
  • Bit Type：Diamond Bit
  • Drilling Way：Rotary
  • Drilling Depth：2000m
  • Max. Hood Load：1350kn
  • Rated Power：550HP
  • Mast Height：32m
  • Racking Board Height：16m
  • Traveling System：5*4
  • Transportation Size：19*3.2*4.5m
  • Max. Drive Speed：45km,H
  • Transport Package：Export Packing
  • Trademark：Beyond Petroleum
  • Origin：China
  • HS Code：8431431000

Description

Hydraulic winchIYJ3 set1IYJ5 set129Drilling pipe V-door and catwalk way Catwalk 2 pcs (total length 13.5m, height 0.8m),Pipe rack,Height : 0.8m;set130Mast base  set131Rig base Entire boat base and mast base are connected by V type support , the forepart  can be folded.     set132Driller room Driller room has windproof and warmth-preservation functions.  Installing opened and disassembled integrally protective fence outside the glass window, removable and overturning protective fence on top viewing window and equipped with windscreen wiper; The body has good sealing. Drawworks drum, hydraulic, rotary table, diesel engine throttle, flameout,  drum emergency brake, air slips, crown-saver, hydraulic winch, clamp cylinder and oil pump are controlled in the room. The worktop is reasonable layout, easy to operate. All liquid-gas pipeline arranged out centrally, set identifier, and easy to install.Five-way valve is located outside of the driller room.set133
Instrumentation at Driller's Console Weight indicator, stand pipe pressure gauge, torque indicator, speed indicator, hook position indicator, tongs pull indicator, mud pump stoke totalizer, mud pit volume totalizer, mud flow rate indicator and trip tank level indicatorset134The reverse winding mechanism of wireline Drive type: Electrical or pneumatic motor.Wireline capacity:  1500 m Minimum input torque:  8 kN*mset135Kelly3 1/2" joint136Master bushing 2 3/8"-5 5/8" four pin driveset137Roller kelly bushing3 1/2"  4 1/2" set1KAssembly & test cost  set1LPainting & Packing cost  set1MDocuments  set1NFactory to the port freight  set1Xj550 Workover Rig for Oilfield
