• Model NO.：DR-120
• Type：Crawler or Wheel
• Usage：Pile Driver, Drill Hole Flling Pile Construction
• Engine：Cummins
• Drilling Diameter：500-1600mm
• Power Source：Diesel
• Color：Customized
• Weight：26t
• Depth：10-30m
• Chassis Length：4200mm
• Track Width：600mm
• Application：Pile Driving
• Drill Rid：Kelly Bar
• Drill Tools：Optional 500-1500mm Drill Bit
• Engine Rated Power：151kw
• Transport Status Width：2800mm
• Transport Status Height：3400mm
• Transport Package：Rotary Drilling Rig Package According to The Custo
• Specification：11500mm*2800mm*3400mm
• Trademark：DingLi
• Origin：China
• HS Code：8430509000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DR-120 Type Crawler or Wheel Usage Pile Driver, Drill Hole Flling Pile Construction Engine Cummins Drilling Diameter 500-1600mm Power Source Diesel Color Customized Weight 26t Depth 10-30m Chassis Length 4200mm Track Width 600mm Application Pile Driving Drill Rid Kelly Bar Drill Tools Optional 500-1500mm Drill Bit Engine Rated Power 151kw Transport Status Width 2800mm Transport Status Height 3400mm Transport Package Rotary Drilling Rig Package According to The Custo Specification 11500mm*2800mm*3400mm Trademark DingLi Origin China HS Code 8430509000 Production Capacity 20 Sets/Month

Product Description

Product Details

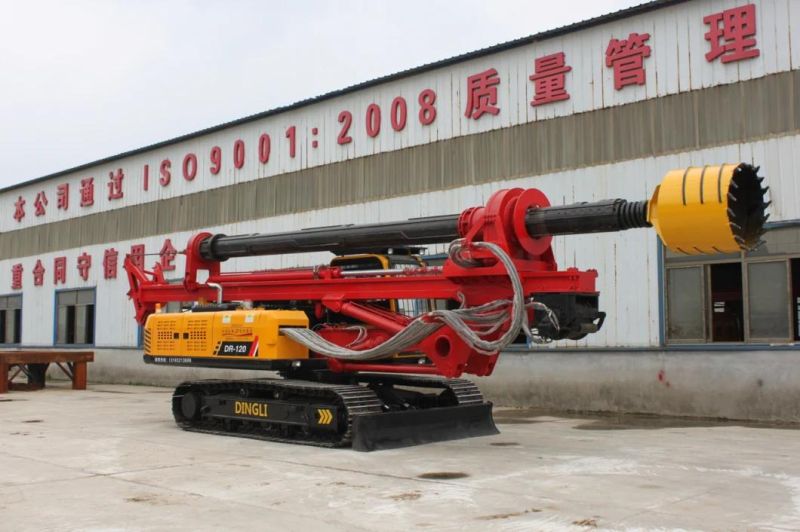

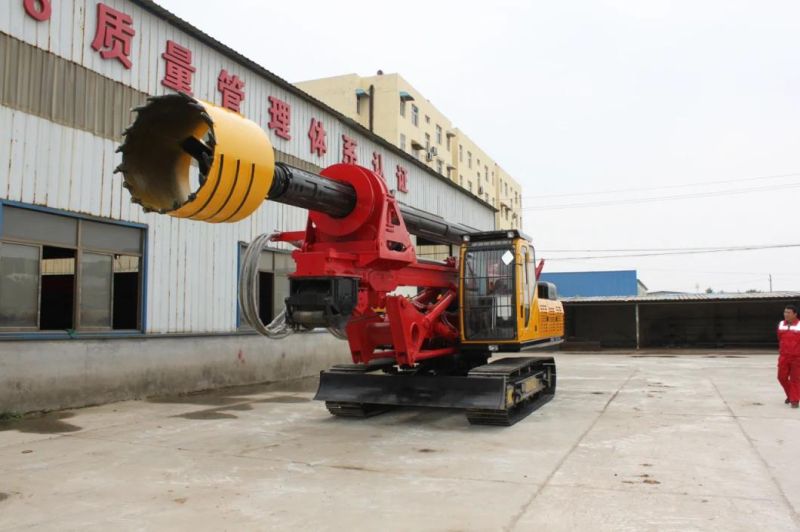

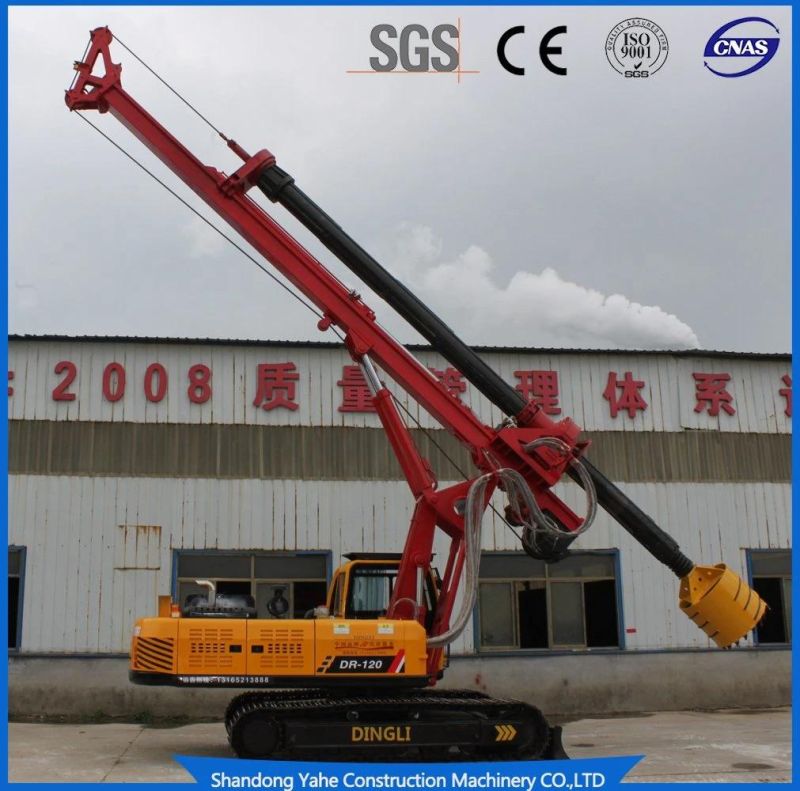

The maximum turning depth of this rotary drilling rig is 30 meters, the drilling diameter is 500-1600MM, and the mast can be adjusted vertically. The mast is also equipped with an auxiliary hoist, which can assist in hoisting the required objects. The upper body has an automatic reset function. It is convenient for the drill rod to align with the drill hole and improve the operation efficiency.





 Parameter

Working mode	hydraulic oil cylinder pressure
Drilling diameter (mm)	Φ500-Φ1800
drilling depth (m)	5-30m
Diamension (mm)	11500X2800X3400mm
Total weight (t)	25T
Power head max output torque (KN.m)	120KN.m
Rotary speed (r/min)	10-50RPM
Main winch max lifting force	150KN
Main winch max lifting speed	50m/min
Assisting winch max lifting force	15KN
Assiting winch max lifting speed	50m/min
Mast sidewards inclination	±4°
Mast forwards inclination	4°
Max working pressure	32Mpa
pilot pressure	3.5Mpa
Travelling speed (km/h)	4 km/h
Diesel engine power (KW)	151KW ,cummins ,water cooling ,turbo charger

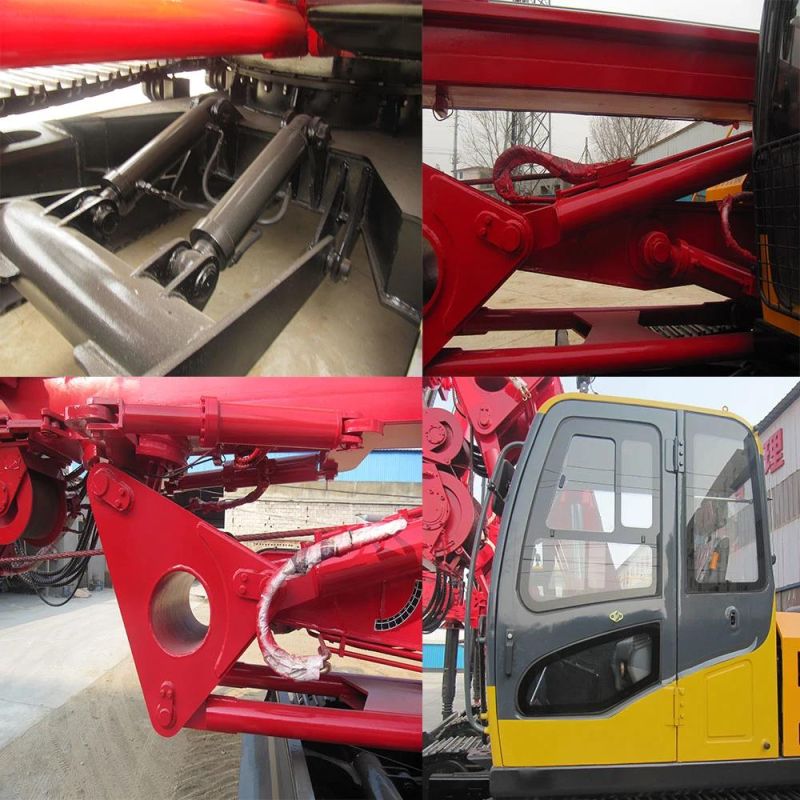

Details Photos









Certification








Exhibition









 Company profile

    Shandong Yahe Construction Machinery Co., Ltd. is a leading enterprise focusing on the development and manufacture of small and medium-sized pile machinery. It is a modern high-tech enterprise with complete qualifications, advanced production technology and perfect after-sales service in southern Shandong. In the same industry, we have passed ISO 9001:2008 quality management system certification. Products include crawler rotary drilling rig, wheel rotary drilling rig, long screw rotary drilling rig and diesel hammer pile driver and other engineering machinery. DR series small rotary drilling rigs and DL square rod series rotary drilling rigs are widely recognized and praised by customers.





  FAQ



Q: Are you a manufacturer?

A: Yes, we are a professional rotary drilling rig  manufacturer.

Q: What does your company produce?

A: The main products of our company include rotary drilling rig.

Q: How about your delivery time?

A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.

Q: What methods of payment do you accept?

A: We accept T/T, L/C.

Q: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price
