• Drilling Way：Rotary
• Material：Cast Iron
• Air Pressure：0.6-0.8MPa
• Drilling Diameter：65-130mm
• Drilling Depth： ≥30m
• Transport Package：Wooden Box
• Specification：4 cubic meters
• Trademark：ZHONGTUO
• Origin：China
• HS Code：8430390000
• Production Capacity：50piecces,Month

Basic Info.

Drilling Way Rotary Material Cast Iron Air Pressure 0.6-0.8MPa Drilling Diameter 65-130mm Drilling Depth  ≥30m Transport Package Wooden Box Specification 4 cubic meters Trademark ZHONGTUO Origin China HS Code 8430390000 Production Capacity 50piecces/Month

Product Description

Description of Down the hole drilling|rotary|diamond hammer

With down the hole hammer drilling, the drill principle consists of a combination of percussion and rotation. Unlike the top hammer, here the hammer drill is located directly in the borehole. These devices, known as 'down-the-hole hammers', are connected to the rotating drill pipes.

The down the hole hammer drilling rig is driven directly by the flushing medium. Compressed air is usually used for this purpose. Special procedures, though, can also involve flushing with water. The flushing medium is pressed through the drill pipes, down-the-hole hammer and drill bit and is forced back out at the mouth of the borehole, along with the loosened drill cuttings, through the annular gap between the drill pipes and the borehole wall.

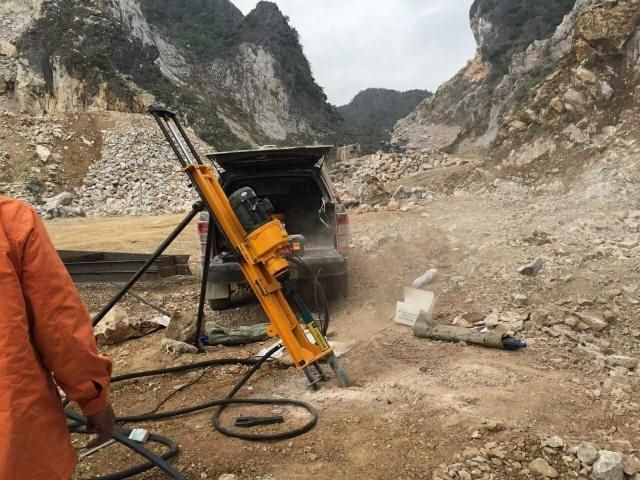

Down-the-hole hammers are mainly used for drilling boreholes into hard rock in bedrock. These boreholes serve as anchor holes, blast holes, injection holes and pilot holes.

In the field of anchoring technology, this process can be used to produce both short- and long-term anchors. Typical applications include:Anchored retaining walls, Slope stabilisation,Building pit supports,Braces

Advantages of Down the hole drilling rig:


Parameters of Down the hole drilling rig:

model	Q-100
Voltage	380V
Air pressure	0.6-0.8mpa
Drilling diameter	65-130mm
Motor Power	4.0kw
Drilling direction	0°-90°
Hose Diameter	38mm
Drilling depth	≥30m
Cylinder advance stroke	1000

FAQ:

Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.

Q2: What the exactly address of your factory?
A2:  No.27, Beichen Village Industrial Park, Weiyang District, Shaanxi Province China.
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equipment.

Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)

Q7: How long will you take to arrange production?
A7: we can delivery the normal goods within 7-15 days. Other nonstandard electrical items we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.

Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of freight.

Q11: What is your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.

Our Company Information:

We have been focusing on high-quality mechanical equipment and construction products for more than 20 years. Especially have rich experience at mining equipment, main products include:

Ultra Large Rock Splitter
Submersible Drilling Rig
Spraying Machine
Grinding Machine

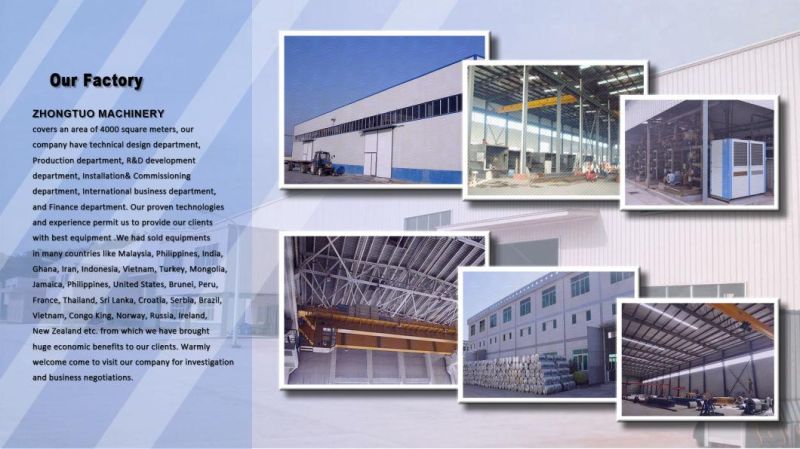

About Our Factory:



About the products:


Packing and Shipping:

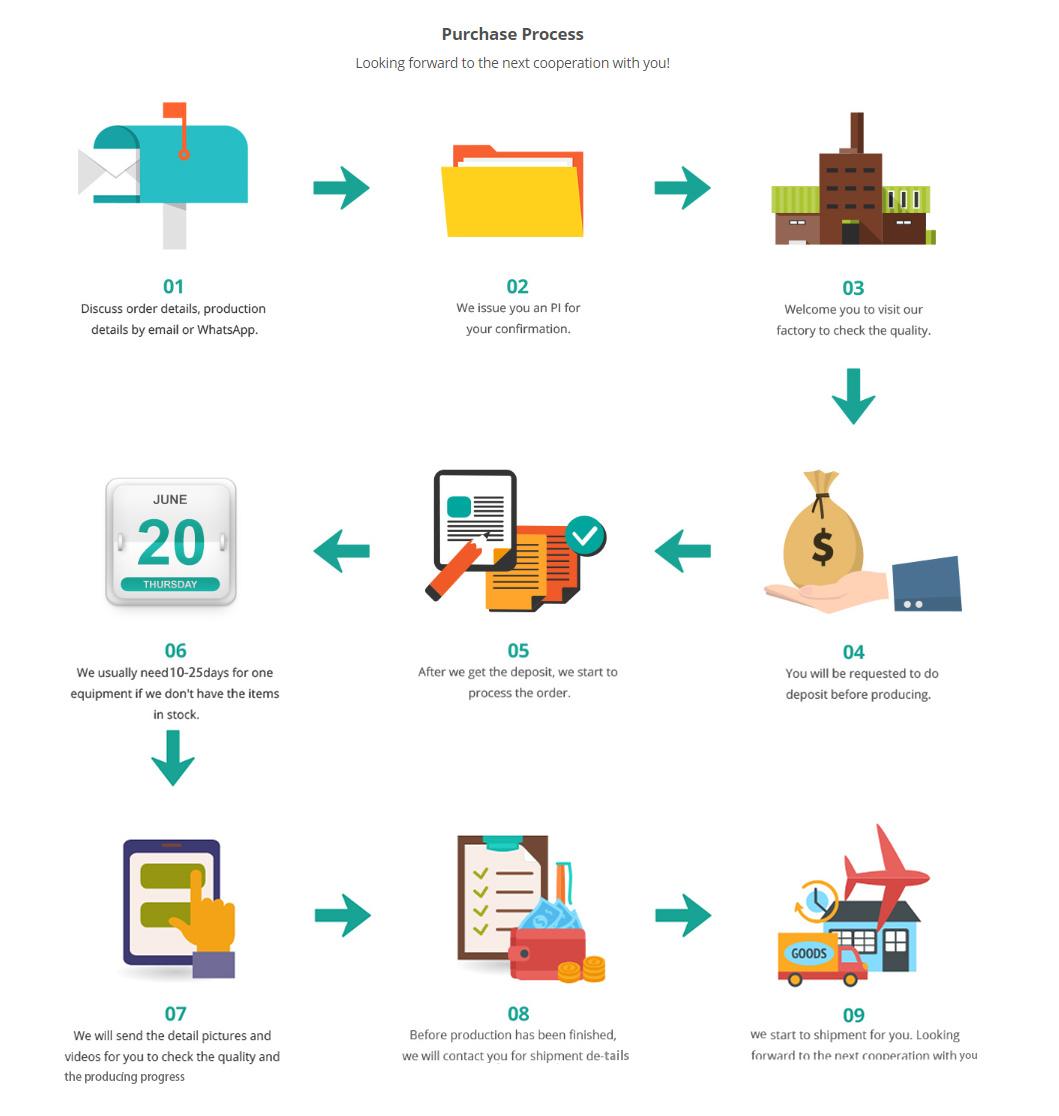

Purchase Process:


About the Quality:

Others:


Why you choose us:

1. We are a real factory offering products and provide free technical advice.
2. Company in business for many years and served Over 50 countries customers.
3. All machine with CE, ISO,SGS certificate. Machine and spindle warranty 1 year.
4. We have phone support in English, if you have any questions, you can call us, and we can give you the best solution within 24 hours.
5. Fast delivery, save your time.
