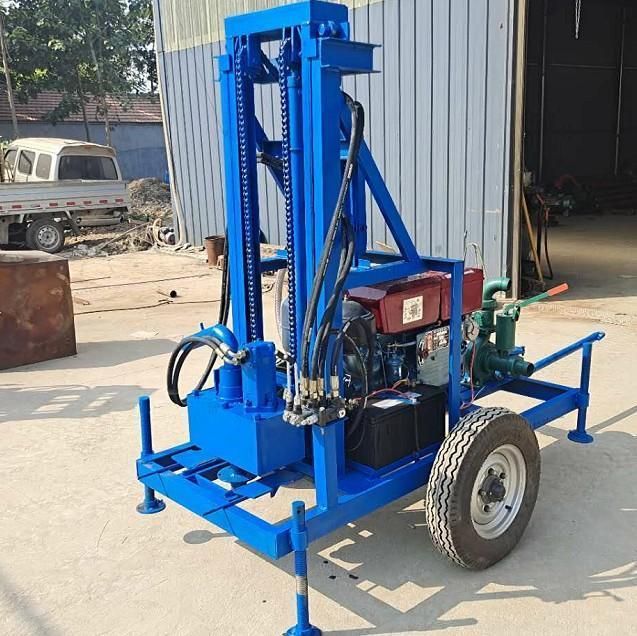

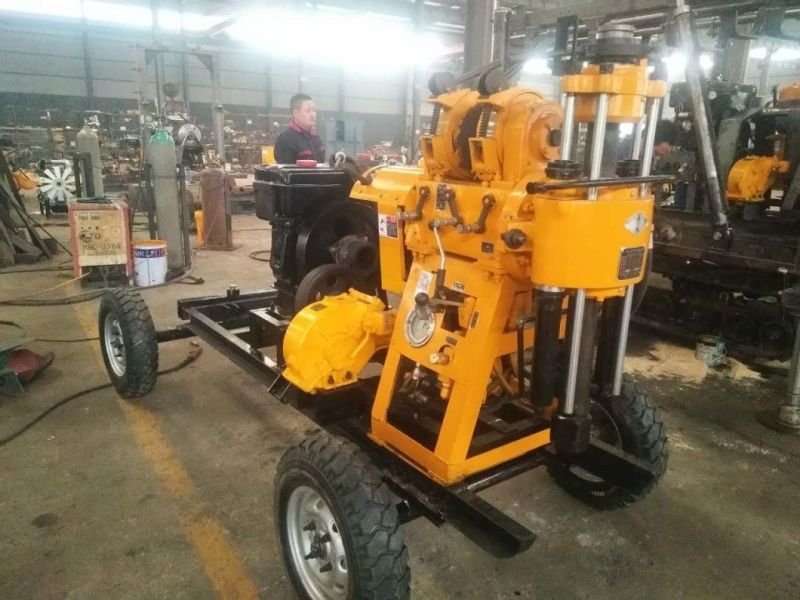

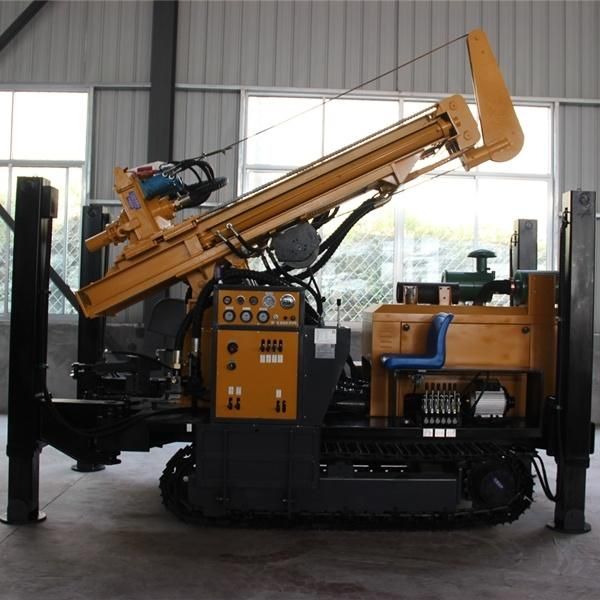

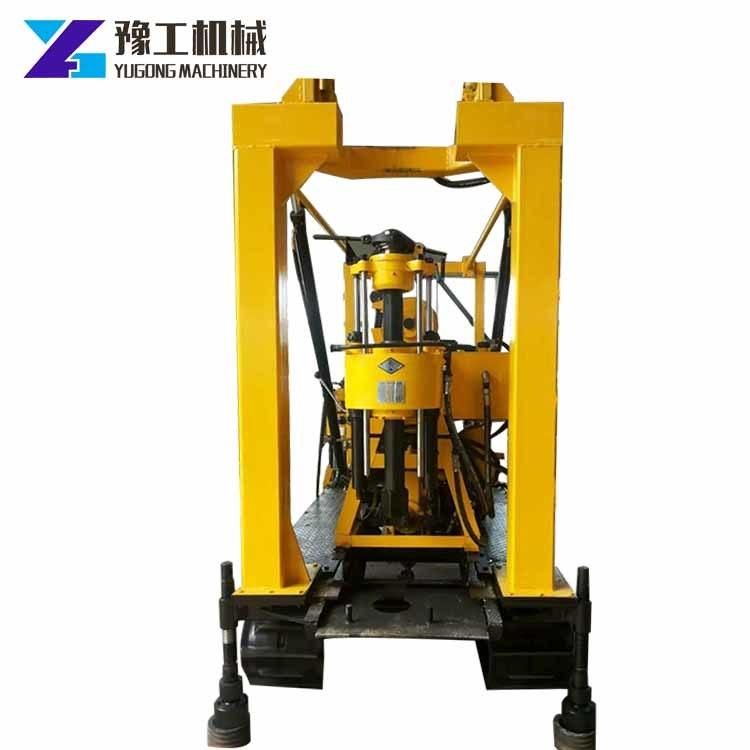

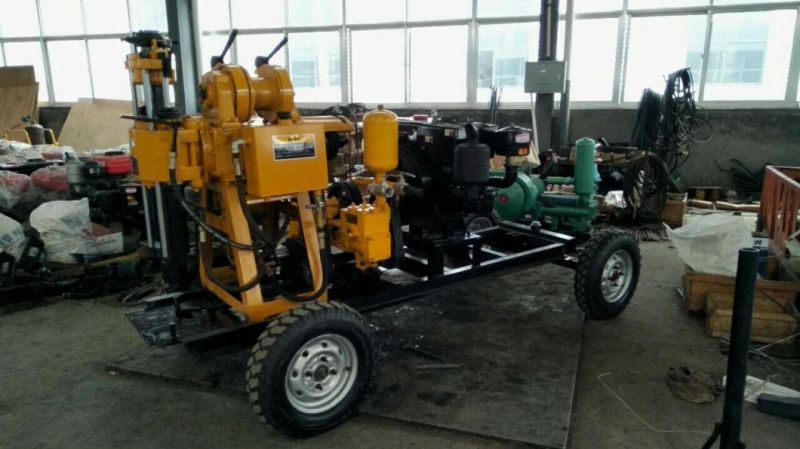

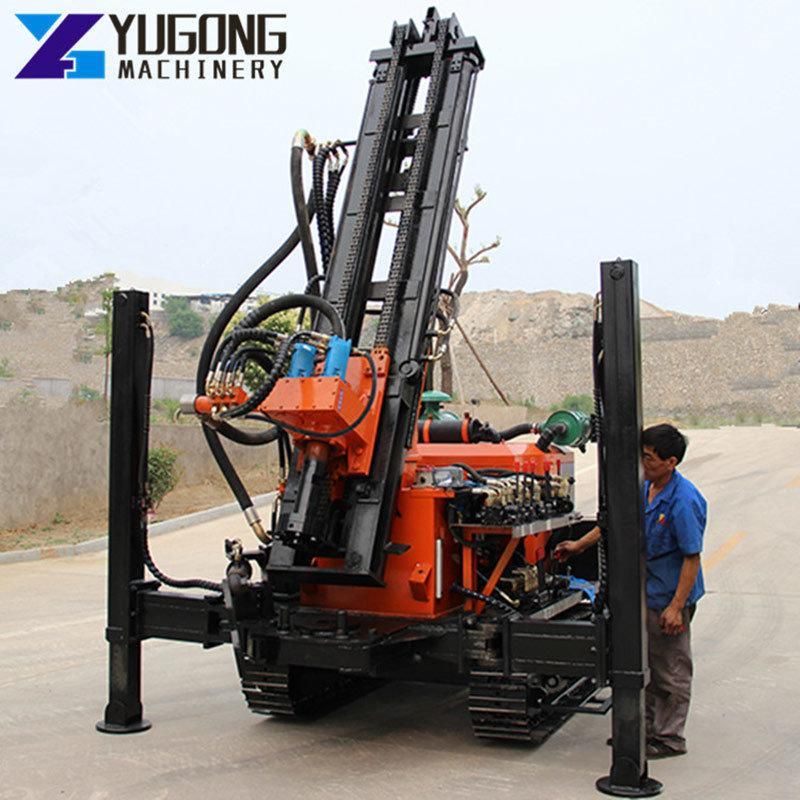

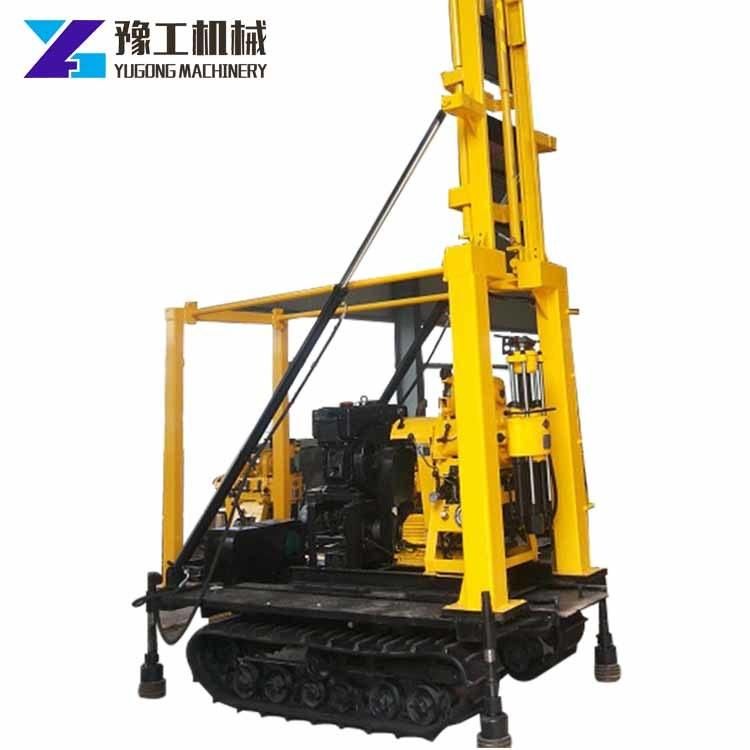

High Powerful Hydraulic Rock Drilling Rig/Water Well Drilling Machine
Henan Yugong Machinery Co., Ltd.- Certification：CE, ISO 9001:2008
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：>300mm
- Drill Hole Depth：>200m
- Bit Type：Diamond Bit
Base Info
- Model NO.：YG-130,YG-180,YG-200
- Drilling Way：Rotary
- Product Name：Drilling Rig
- Model：Xy-44A
- Max. Drilling Depth：1400m
- Maximum Opening Diameter：1000mm
- Drill Pipe Diameter：42-89mm
- Electric Motor：37,1480kw,R,Min
- Diesel Motor：81,2800kw,R,Min
- Spindle L.D：93mm
- Spindle Speed：60-1476r,Min
- Max. Torque of Spindle：8000n.M
- Transport Package：Container
- Specification：Drilling rig
- Trademark：Yugong
- Origin：China
- HS Code：8430419000
- Production Capacity：6000
Description
Model
YG-130
YG-200
YG-300
YG-400
Weight(Ton)
3
5.5
9
10
Drilling Diameter(mm)
100~219
140~305
140~325
140~350
Drilling Depth(mm)
130
200
300
400
Walking Speed(Km/h)
0.8
2.5
2.5
2.5
Climbing Angles
30
30
30
30
Power(Kw)
32
65
84
95
Pressure(Mpa)
1.45~2.5
1.7~3.0
1.7~3.3
1.7~3.5
Air Consumption(m³/Min)
15~29
17~30
17~35
17~35
Drilling Pipe Length(M)
1/1.5
1.5/2.0/3.0
1.5/2.0/3.0
1.5/2.0/3.0
Rig Lifting Force(T)
5
18
28
24
Dimension
4000*1450
*2050
3800*1700
*2350
5500*1950
*2780
5200*2000
*2780
