• Model NO.：XY-44TL
• Drilling Way：Rotary
• Drilling Depth：600-1000m
• Drill Angle：45-90°
• Max.Spindle Speed：3800n.M
• Spindle Feeding Stroke：600mm
• Spindle Hold Diameter：92mm
• Max.Lifting Capacity of Spindle：120kn
• Max.Pressuring Force of Spindle：90kn
• Steel Wire Diameter：17.5mm
• Winding Drum Capacity：110m
• Max. Hoisting Force：45kn
• Drill-Tower Height：10m
• Mud Pump：250L,Min
• Auxiliary Hoister：12kn
• Max. Load of Mast：100kn
• Moving Speed：1.5km,H
• Transport Package：Nude Package
• Specification：Power: 97kw
• Trademark：BOHWA
• Origin：China
• HS Code：8430412900
• Production Capacity：20 Set,Sets Per Month

Basic Info.

Model NO. XY-44TL Drilling Way Rotary Drilling Depth 600-1000m Drill Angle 45-90° Max.Spindle Speed 3800n.M Spindle Feeding Stroke 600mm Spindle Hold Diameter 92mm Max.Lifting Capacity of Spindle 120kn Max.Pressuring Force of Spindle 90kn Steel Wire Diameter 17.5mm Winding Drum Capacity 110m Max. Hoisting Force 45kn Drill-Tower Height 10m Mud Pump 250L/Min Auxiliary Hoister 12kn Max. Load of Mast 100kn Moving Speed 1.5km/H Transport Package Nude Package Specification Power: 97kw Trademark BOHWA Origin China HS Code 8430412900 Production Capacity 20 Set/Sets Per Month

Product Description

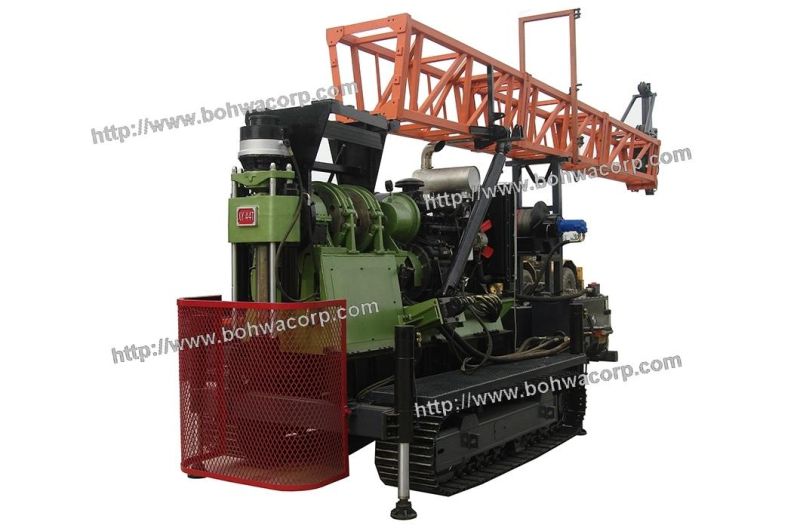

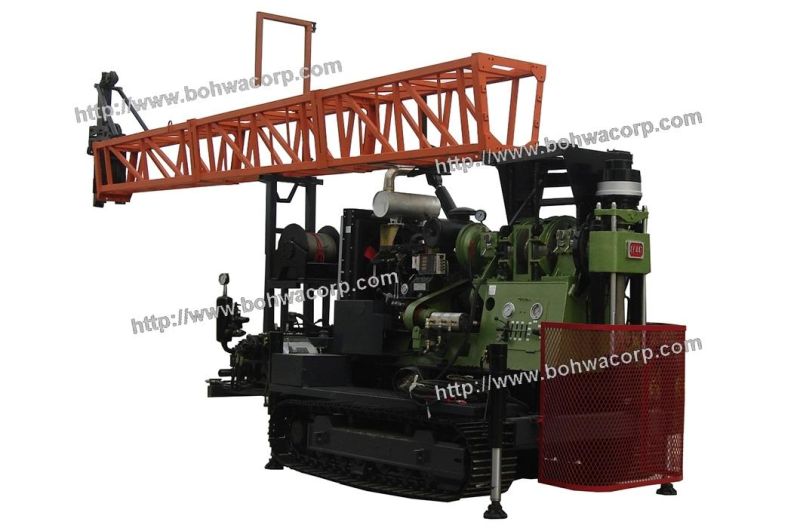

XY-44TL Diamond Core Drilling Rig On Crawler Base

XY-44TL core drill is the integrated spindle type diamond core drilling rig on crawler base for geological exploration core drilling.

In addition to diamond core drilling, XY-44TL drilling rig can be used also for engineering drilling, hydrological drilling, big hole foundation drilling, water well drilling etc.

I. Features:

1. The hydraulic system has combined with the traditional mechanism drilling perfectly.
2. The accessory hydraulic winch and the mud pump have been installed on the same base with the main drilling rig. The whole ,machine is with compact structure and easy to operate.
3. The drilling mast is hydraulic controlled.
4. Four hydraulic jack legs make the drilling more stable when working.
5. The crawler base makes the drilling rig moving conveniently.

II. Technical Specifications
 1.Drilling CapacityWireline Core Drilling

Hole Size      Drilling Depth
BQ ------------------ 1,000m
NQ ------------------ 800m
HQ ------------------ 500m

2. Drilling Angel:45° ~ 90°

Spindle
Spindle I.D (mm)               :       93
Speed of Spindle:

Positive Rotating Speed(r/min)	83,152,217,316,254,468,667,970
Negative Speed(r/min)	67,206

Max. Torque of Spindle (kN.m):                3.2
Spindle Stroke (mm):                                600
Max. Lifting Force of Spindle(kN):            120
Max. Thrust of Spindle (kN):                     90

3.Winch
Wire Rope Dia: 17.5mm
Drum Capacity for Rope: (17.5mm Steel Wire Rope) (170kg/mm²) 110m
Max. Lifting Force(single rope) (kN): 45

4.Drill Mast
Height: 10m
Max. Laoding:100kN

5.Power: Diesel Engine 97Kw,2200r/min

6.Travelling Speed: 1.5km/h

7.Gradeability: 30°

8.Overall Dimension: 4,785x2,220x10,524mm( when tower is straight)

Weight of Drill (without power unit): 10ton
