Jk-Dr300 Portable 300m Depth Hydraulic Rotary Drilling Rig
Shandong JK Machinery Co., Ltd.- Certification：CE, ISO 9001:2008
- Condition：New
- Motor：DC Motor
- Drill Hole Diameter：140-325mm
- Drill Hole Depth：300m
- Bit Type：140-254mm
Base Info
- Model NO.：JK-DR300
- Drilling Way：Rotary
- Type：Crawler
- Usage：Water Well
- Voltage：24V
- Weight：7t
- Warranty：1 Year
- Power Type：Diesel
- Product Name：Water Well Drilling Rig
- Transport Package：40hc
- Specification：4100*1950*2600mm
- Trademark：SDJK
- Origin：Shandong
- HS Code：8430412100
- Production Capacity：100sets,Month
Description
The Main Parameters Model JK-DR300 Weight 7T Bore diameter 140-325mm Drilling depth 300m Stroke 3.4m Travelling speed 2.5km/h Gradeability 30% Power 75.8KW Rated pressure 1.7-3.0mpa Air consumption 17-35m³/min Drill rod diameter Φ76, Φ89, Φ102 Drill rod length 1.5m 2.0m 3.0m Elevating capacity 16T Swing speed 40-70rpm Swing torque 5700-7500N.M Dimensions 4100*1950*2600mm

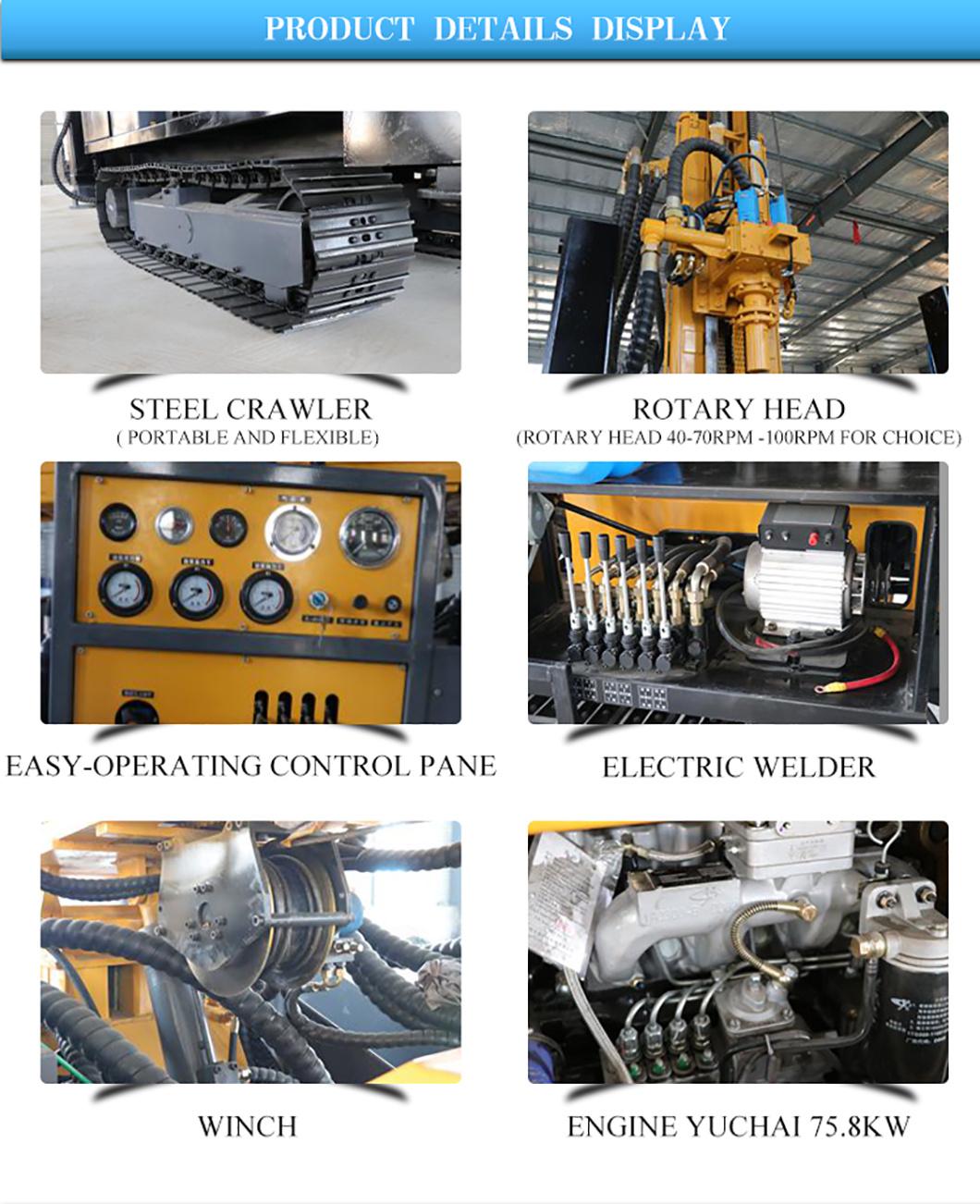

1. The engine uses YUCHAI 75.8 KW turbocharged engine;
2. Walking Type: crawler mounted ,trailer mounted for choice.
3. Hydraulic oil pump:Parallel gearbox design separates the oil pump unit, the power supply is adequately distributed, the hydraulic system is uniquely designed, and the maintenance cost is small;
4.Rotary head device:gearbox integrated casting, dual motor power, large torque, durable, low maintenance costs;
5.Drilling machine chassis:professional digging chassis, durable, heavy bearing, wide chain plate, less damage to hard roads;
6.Lifting force:design composite tower, 3.4m long stroke, double cylinder lift capacity 18 ton.
7. Each rig is equipped with a relief valve to raise the boom to protect the cylinder and ensure work safety;
8. Each hydraulic oil pipe is covered with a protective jacket to make the oil pipe last longer.
1. The engine uses YUCHAI 75.8 KW turbocharged engine;
2. Walking Type: crawler mounted ,trailer mounted for choice.
3. Hydraulic oil pump:Parallel gearbox design separates the oil pump unit, the power supply is adequately distributed, the hydraulic system is uniquely designed, and the maintenance cost is small;
4.Rotary head device:gearbox integrated casting, dual motor power, large torque, durable, low maintenance costs;
5.Drilling machine chassis:professional digging chassis, durable, heavy bearing, wide chain plate, less damage to hard roads;
6.Lifting force:design composite tower, 3.4m long stroke, double cylinder lift capacity 18 ton.
7. Each rig is equipped with a relief valve to raise the boom to protect the cylinder and ensure work safety;
8. Each hydraulic oil pipe is covered with a protective jacket to make the oil pipe last longer.
