Hfg-45 30m Crawler Separated DTH Drill Rig

Zhengzhou Hanfa Prospecting Machinery Co., Ltd.
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：110-152mm
  • Drill Hole Depth：30m
  • Bit Type：DTH Hammer,DTH Bit

Base Info

  • Model NO.：HFG-45
  • Drilling Way：Impactor
  • Drilling Diameter：110-152mm
  • Drilling Depth：30m
  • Engine Power：73.5 Kw
  • Drill Pipe Specifications：76 X 3,000mm
  • Total Propeller Length：5645 mm
  • Promote Compensation：960 mm
  • Max. Propulsive Force：20 Kn
  • Walking Speed：2.5 Km,H
  • DTH Hammer：4 ", 5"
  • Rotary Torque：3200n.M
  • Transport Package：Standard Export Packing or as You Needs
  • Specification：6450*2280*2650mm
  • Trademark：HF
  • Origin：Zhengzhou City, China
  • HS Code：8430490000
  • Production Capacity：10sets,Month

Description

Overview Product Description

Features

1. High-pressure oil pump, two-speed piston motor, heavy engineering track, humanized two-position operation platform, outstanding off-road performance.

2. Cummins engine, large torque power head, anti-torque bending performance of the heavy beam, to provide support for efficient drilling.

3. Equipped with dry dust collector system, efficient and environmental protection.

Hfg-45 30m Crawler Separated DTH Drill Rig

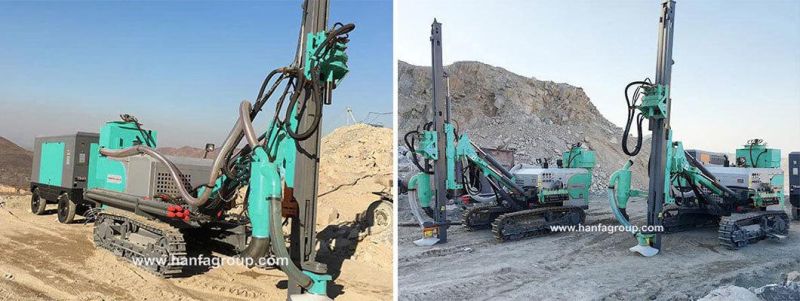

Product ParametersWorking SiteHfg-45 30m Crawler Separated DTH Drill RigCompany Profile

Hfg-45 30m Crawler Separated DTH Drill RigHfg-45 30m Crawler Separated DTH Drill RigHfg-45 30m Crawler Separated DTH Drill RigFAQ

1.Are you trading company or manufacturer?

We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.

2.Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.

3.How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.

4.Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.

5.What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.

6.How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
