Cheaper 30m Crawler Mounted Rock Drill for Mining

Henan Jeao Heavy Industry Machinery Co., Ltd.
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：90-130mm
  • Drill Hole Depth：25-30
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：HC726A1
  • Drilling Way：Impactor
  • Rock Hardness：F=6~20
  • Walking Speed：2.5km,H
  • Working Pressure：0.7~1.6 MPa
  • Air Consumption：7-15m3
  • Rotate Speed：0-70rpm
  • Drill Rod：76*3000mm
  • Drill Bit：90mm
  • Hammer：930
  • Weight：4200kg
  • Size：5260*2045*1950mm
  • Transport Package：Nude Packing
  • Trademark：HONGWUHUAN
  • Origin：China
  • HS Code：8432412200
  • Production Capacity：300sets,Month

Description













Whole MachineTo adapt to the rock hardness6~25diameter of bore90~130Economic drill deepth25Stand-alone gradeability30Propulsion modeoil cylinderFeeding stroke(m)3250Maximum lift capacity15Rotary torque1300Rotary speed30~90Work pressure0.7~1.6Air consumption7~15Main Power40Drill arm horizontal pendulum AngleLeft35/Right35Walking speed(km/h)2.5Ground clearance300Dimensions5200*100*2000Weight(kg)4200
Detailed Images HC726A1 Cheaper 30m Deep Ore Rock Drill For Mining
Cheaper 30m Crawler Mounted Rock Drill for Mining



Cheaper 30m Crawler Mounted Rock Drill for Mining


Matching Air Compressor HC726A1 Cheaper 30m Deep Ore Rock Drill For Mining

Cheaper 30m Crawler Mounted Rock Drill for Mining

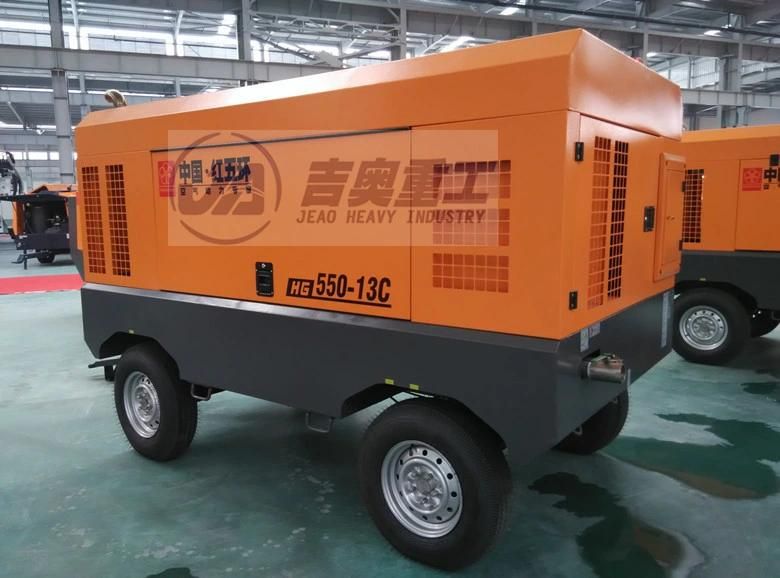

Specification for HG550-13C Diesel Screw Air Compressor For Borehole Blasting Drill Rigs

Cheaper 30m Crawler Mounted Rock Drill for Mining

Cheaper 30m Crawler Mounted Rock Drill for Mining
