Borehole Blasting Usage and 4000kg Weight Crawler Mounted Drill Rigs

Henan Jeao Heavy Industry Machinery Co., Ltd.
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：90-130mm
  • Drill Hole Depth：25-30
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：HC726A1
  • Drilling Way：Impactor
  • Rock Hardness：F=6~20
  • Walking Speed：2.5km,H
  • Working Pressure：0.7~1.6 MPa
  • Air Consumption：7-15m3
  • Rotate Speed：0-70rpm
  • Drill Rod：76*3000mm
  • Drill Bit：90mm
  • Hammer：930
  • Weight：4200kg
  • Size：5260*2045*1950mm
  • Transport Package：Nude Packing
  • Trademark：HONGWUHUAN
  • Origin：China
  • HS Code：8432412200
  • Production Capacity：300sets,Month

Description













Whole MachineTo adapt to the rock hardness6~20diameter of bore90~130Economic drill deepth25Stand-alone gradeability30Propulsion modeoil cylinderFeeding stroke(m)3250Maximum lift capacity15Rotary torque1300Rotary speed30~90Work pressure0.7~1.6Air consumption7~15Main Power40Drill arm horizontal pendulum AngleLeft35/Right35Walking speed(km/h)2.5Ground clearance300Dimensions5200*100*2000Weight(kg)4200

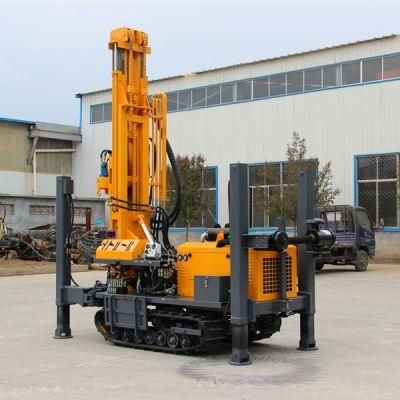

Detailed Images HC726A1 borehole blasting rock drill rigs
Borehole Blasting Usage and 4000kg Weight Crawler Mounted Drill Rigs



Borehole Blasting Usage and 4000kg Weight Crawler Mounted Drill Rigs

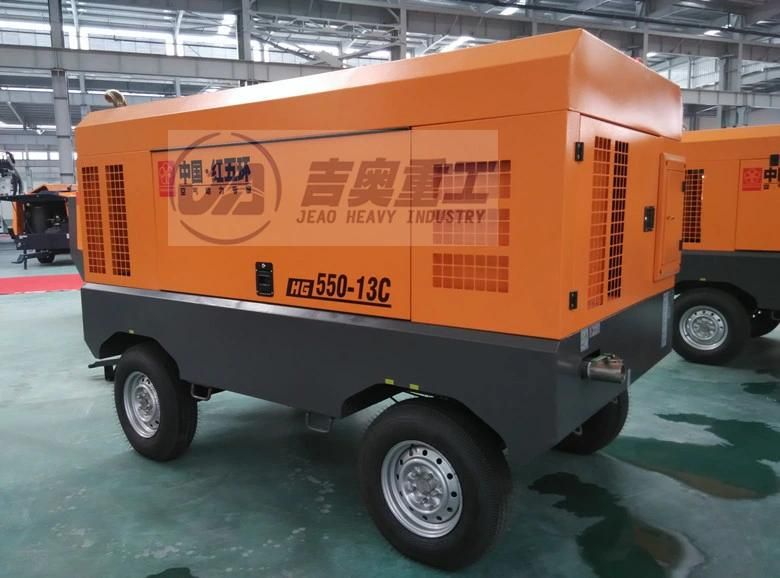

Matching Air Compressor HC726A1 borehole blasting rock drill rigs

Borehole Blasting Usage and 4000kg Weight Crawler Mounted Drill Rigs

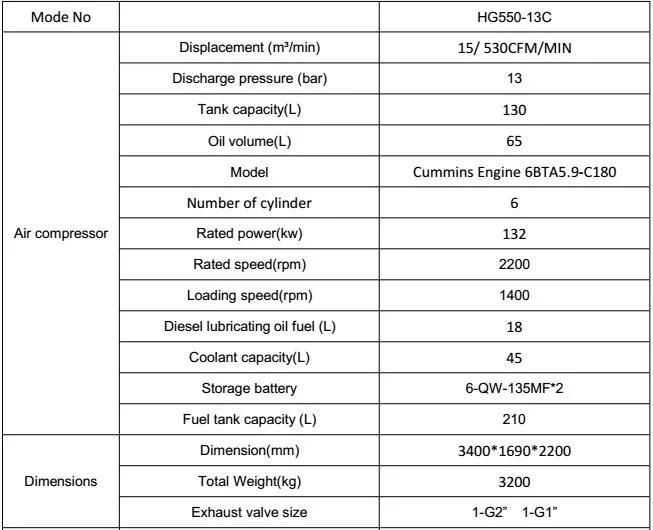

Specification for HG550-13C Diesel Screw Air Compressor For Borehole Blasting Drill Rigs

Borehole Blasting Usage and 4000kg Weight Crawler Mounted Drill Rigs

Borehole Blasting Usage and 4000kg Weight Crawler Mounted Drill Rigs


                       JEAO Drilling Rig can change lives,and even change the world.
