• Model NO.：YG-130,180,200
• Drilling Way：Rotary
• Name：Hydraulic Core Drilling Machine
• Application：Water Drilling,Mining,Core Sample
• Power：13.2kw,14.7kw
• Drill Speed for Rock：3-6m,H
• Service Time：More Than 15 Years
• Final Hole Diameter：75mm
• Winch Max Pull Force：1600,2000,2400kg
• Drill Mast Rated Load：2t,5t
• Mud Pump Max.Pressure：1.2,2MPa
• Weight：920,950,1150kg
• Stroke：450mm
• Mud Pump Displacement：95,145L,Min
• Inlet Hose Diameter：51mm
• Pull Speed：0.12-0.95m,Min
• Roll Capacity：27,35m
• Transport Package：Standard Wooden Case
• Specification：2700*950*1770mm
• Trademark：YUGONG
• Origin：China (Mainland)
• HS Code：8430691900
• Production Capacity：500sets,Month

Basic Info.

Model NO. YG-130/180/200 Drilling Way Rotary Name Hydraulic Core Drilling Machine Application Water Drilling/Mining/Core Sample Power 13.2kw/14.7kw Drill Speed for Rock 3-6m/H Service Time More Than 15 Years Final Hole Diameter 75mm Winch Max Pull Force 1600/2000/2400kg Drill Mast Rated Load 2t/5t Mud Pump Max.Pressure 1.2/2MPa Weight 920/950/1150kg Stroke 450mm Mud Pump Displacement 95/145L/Min Inlet Hose Diameter 51mm Pull Speed 0.12-0.95m/Min Roll Capacity 27/35m Transport Package Standard Wooden Case Specification 2700*950*1770mm Trademark YUGONG Origin China (Mainland) HS Code 8430691900 Production Capacity 500sets/Month

Product Description

Drilling Machinery Geological Gold Mining Drill Machines Core Drills Rotary
 Hydraulic Core Drilling Rig Description:
The YG-130/180/200 Series drilling rig is a kind of portable core drilling machine with a wide range of applications. It can increase the shift slip of the drill rig and achieve rapid replacement of the drill tools to improve working efficiency and reduce labor intensity.

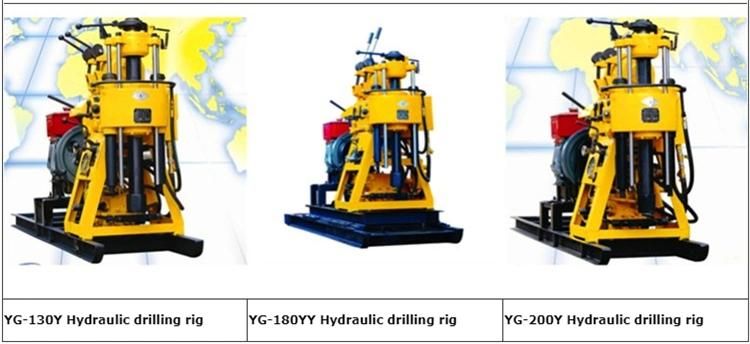

Technical Parameter of the YG Core Drilling Rig

Model	YG-130Y/130YY	YG-180Y/180YY	YG-200Y/200YY
Drilling Depth (m)	130	180	200
Open Drilling Diameter (mm)	220	220	325
Final Hole Diameter(mm)	75	75	75
Drill Pipe Diameter(mm)	42-60	42-60	42-60
Drill Pipe Inclination (°)	90-75	90-75	90-75
Power (kw)	13.2	13.2	14.7
Weight (kg)	920	950	1150
Dimensions(mm)	2400*950*1400	2400*950*1400	2700*950*1770
Spindle Speed(r/min)	142/285/570	130/300/480/730/830/1045	64/128/287/557
Stroke(mm)	450	450	450
Winch Max Pull Force(kg)	1600	2000	2400
Pull Speed(m/min)	0.41-1.64	0.35-2.23	0.12-0.95
Rope Diameter(mm)	9.3	9.3	12.5
Roll Capacity(m)	27	35	35
Drill Mast Rated Load(ton)	2	2	5
Drill Mast Height(m)	6	6	6
Mud Pump Max.pressure(Mpa)	1.2	1.2	2
Mud Pump Displacement(L/min)	95	95	145
Mud Pump Times(times/min)	93	93	93
Inlet Hose Diameter(mm)	51	51	51
Outlet Hose Diameter(mm)	32	32	32

Application of the Water Well Bore Hole Drilling Machinery

• As a high-speed drilling machine, the model is suitable for drilling water wells, general exploration, geophysical exploration, road and construction exploration and other drilling projects such as blasting holes.
• Customers can choose alloy, diamond or composite drill bit according to different substratum.
• It can drill 2-9 grade sandy clay and rock layers.

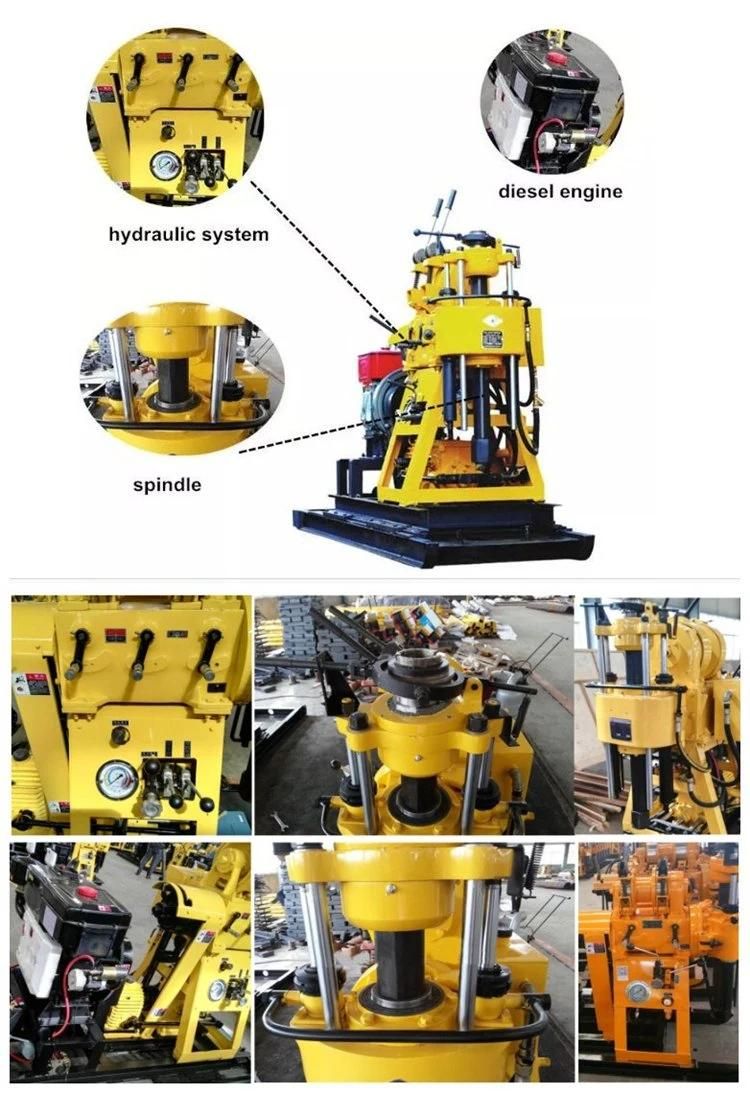

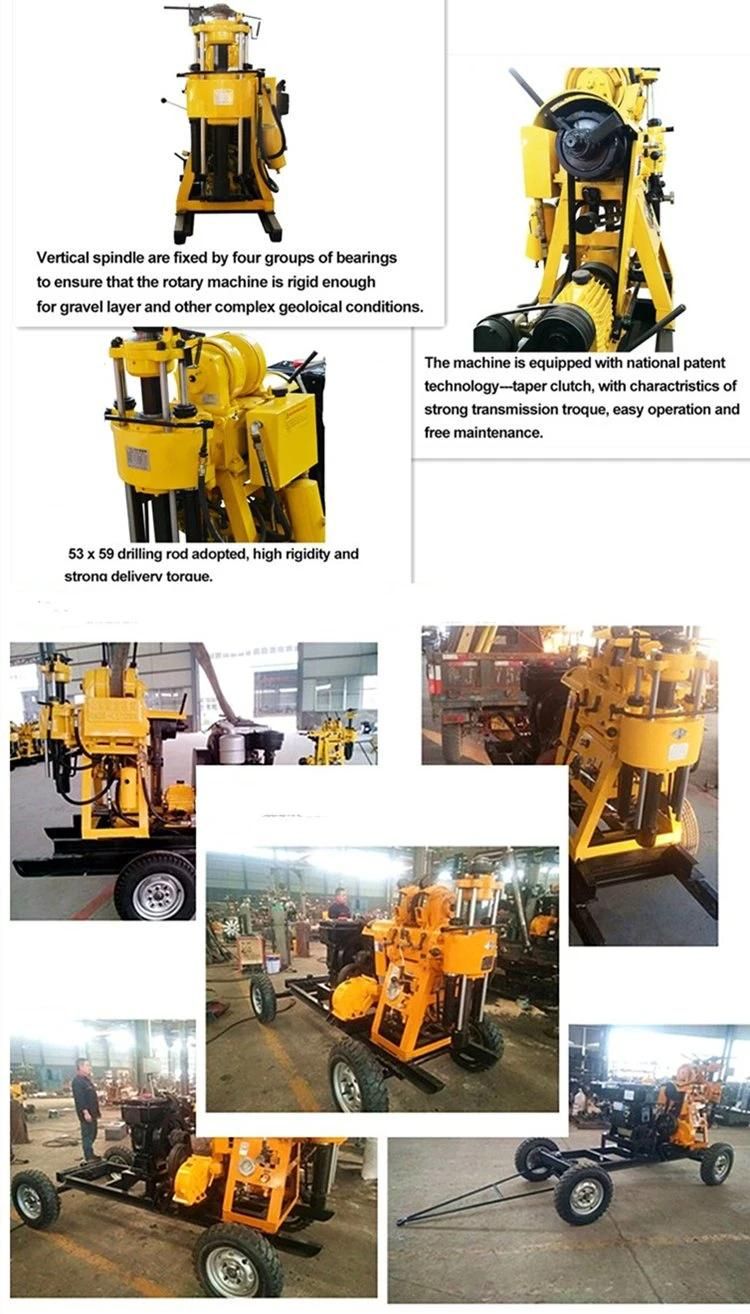

Detailed Images of the Geological Exploration Drilling Machines

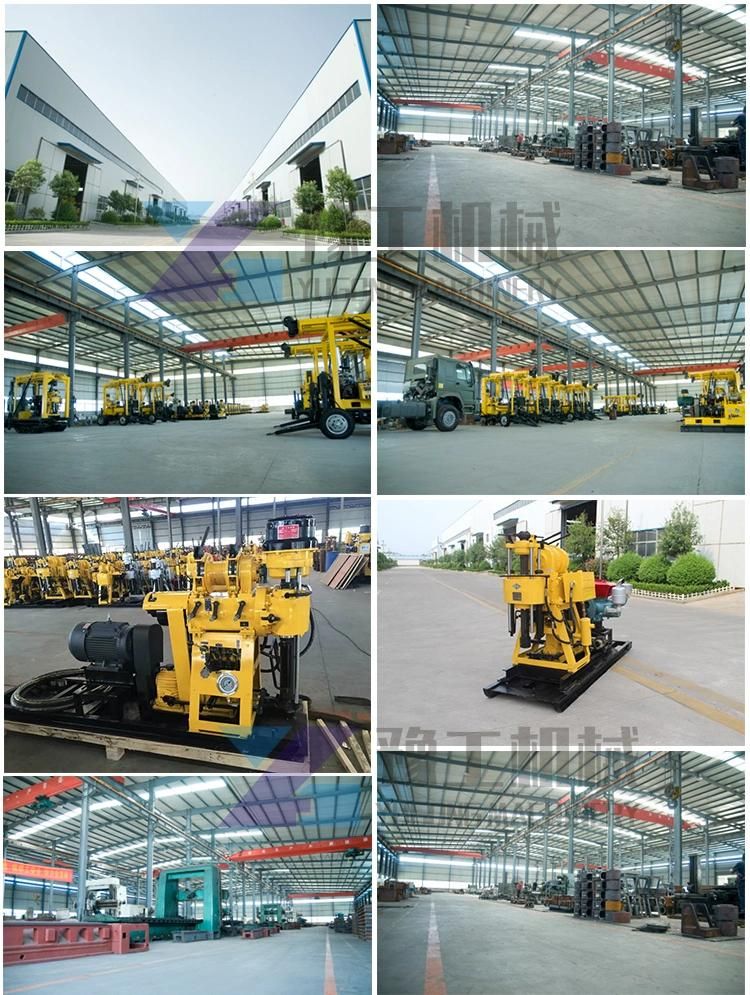

Company Information


Henan Yugong Machinery Co., Ltd., located in Room 2702, 27th Floor, Block B, Jingsha Plaza, Jingguang Road, Erqi District, Zhengzhou, Henan, China, gains its rapid development as a reputable machinery manufacturer. We develop from a small company with only 6 people to a company with over 100 people thanks to the trust of our customers and innovation of ourselves. We always insist that only quality can make us successful, and only innovation creates wider development direction for us.

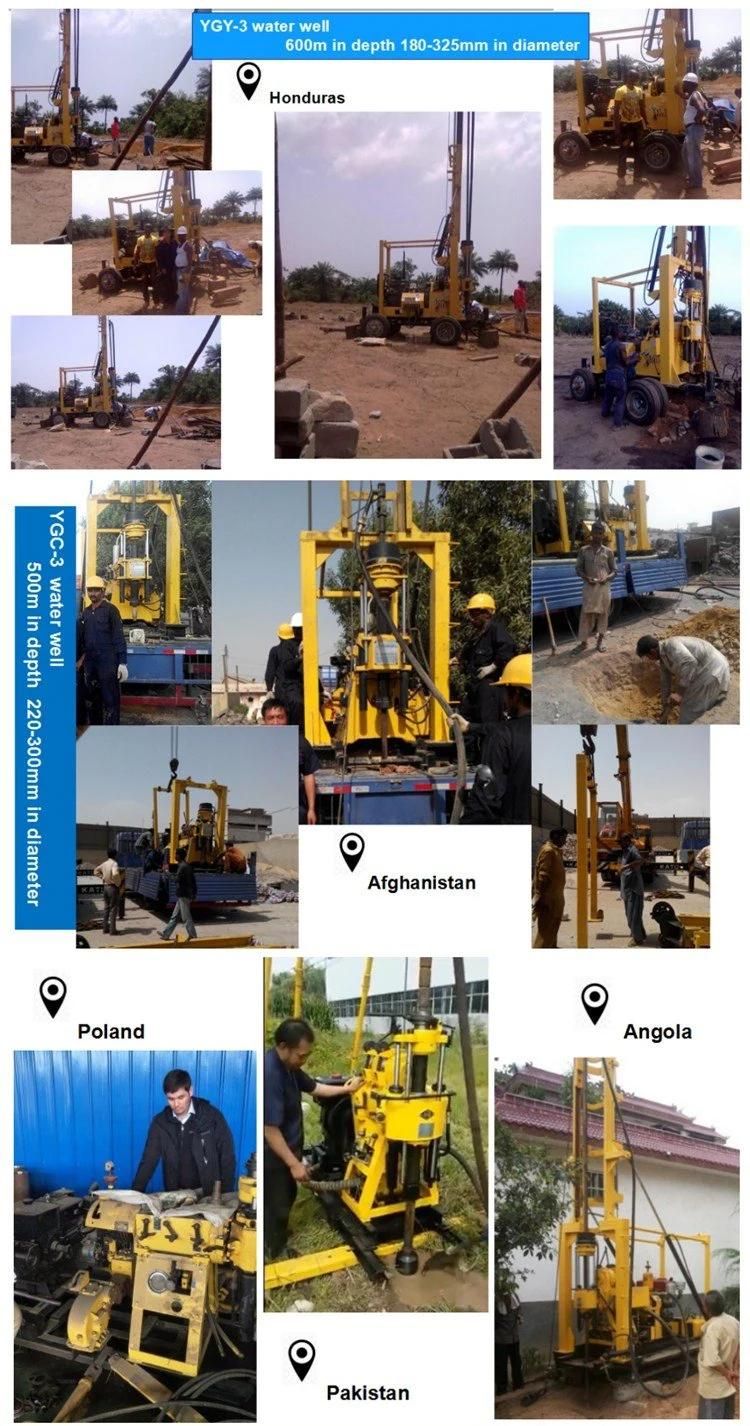

For drilling rigs, we have exported to countries like America, Honduras, South Africa, Sri Lanka, Bolivia, Domini, Ghana, Pakistan, Afghanistan, Norway, Australia, Philippines, Lizhi, Ethiopia, Mexico, Qatar, etc. And we believe, we still have a long way to go. We will dedicate to the design and production of the drilling rigs.
