• Model NO.：HF80
• Drilling Way：Rotary
• Type：Drilling Machine
• Depth：80m
• Diameter：70mm to 300mm(3" to 12")
• Suitable Earth Layers：Soil, Clay, Sand, Small Cobble, etc.
• Mining Object：Water
• Usage：Water Well
• Power Type：Diesel
• Transport Package：Wooden Boxes
• Specification：internal control
• Trademark：HANFA
• Origin：China
• HS Code：8430490000
• Production Capacity：100sets,Month

Basic Info.

Model NO. HF80 Drilling Way Rotary Type Drilling Machine Depth 80m Diameter 70mm to 300mm(3" to 12") Suitable Earth Layers Soil, Clay, Sand, Small Cobble, etc. Mining Object Water Usage Water Well Power Type Diesel Transport Package Wooden Boxes Specification internal control Trademark HANFA Origin China HS Code 8430490000 Production Capacity 100sets/Month

Product Description

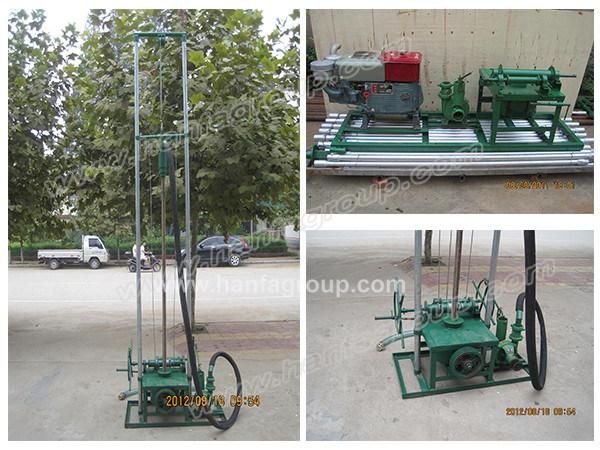

Easy to operate!! HF80 hand water well drilling equipment

I. Application

This machine mainly used for farm irrigation and water well drilling, drilling diameter is 70-300mm, and drilling depth is 60-80m.
It also can be used in small building piling, like farmhouse or factory and so on, the drilling diameter can reach 500mm and depth can be more than 10m.

II. Features and Advantages

1. Light weight. The main engine is only weighted 135kg.
2. Easy to operate. It can be handled by 1 to 2 persons with a minimal skill level.
3. Durable. The first generation of products used for 13 years, drilled more than 4000 water wells, nearly no repair record except the drilling bits.
4. Suitable for soil and not very hard rocks, such as gravel, cobble, weathered granite and redbrick. It is mainly used on plains.
5. Can drill deep. Equipped with raiser, reduce the labor intensity.
6. High efficiency, the drilling speed can reach 20meters depth per hour, in plain area.
7. Economical. It can be called the most economical water well drilling machine.


Drilling depth	60-80m
Drilling diameter	70-300mm
Power Engine	12HP
Dimension(LXWXH)	1100X600X500mm
Weight	0.135 t

 Production ability

We have more than 50 sets of processing equipment to ensure the quality of our product, which has proved worthy by our client's recognition. And these equipments ensure large production capacity and adequate stock.
We have all the small models in stock all year long and the bigger ones ready within 15-30 days.

Customers visit our factory

With all the effort put in, we have successfully marketed our products to almost every corner of the world. Here are the pictures of our clients' visits and our clients' on-the-site operation.

About the product Packing

To protect drilling rigs during sea transportation, we give them proper packing.
HF130, HF80, HF150E, HF150, HF200, HF30: Wooden case
HF-3, HF-4, HFDX-6. HF-8, HFT200, HFT350B: Plastic woven bag
Spare parts: Wooden case or plastic woven bag
HFT-200, HFT-3: Nude, main machine in plastic woven bag.


Quality guarantee

Our products has been authorized and certified by TUV and ISO9001: 2008. We guarantee the quality of the machines for one year after the trial run (excluding the wearing parts), but not exceeding 15 months from the date on which machines leave the factory
