HDD Xz180 180 Kn Small Mini Horizontal Directional Drilling Rig
Sinomada Heavy Industry (Changsha) Co., Ltd.- After-sales Service：Field Maintenance and Repair Service
- Warranty：1 Year
- Certification：CE, ISO 9001:2000
- Condition：New
- Drill Hole Diameter：<100mm
- Drill Hole Depth：>150m
Base Info
- Model NO.：XZ180
- Bit Type：Diamond Bit
- Drilling Way：Rotary
- Type：Crawler
- Max Spindle Speed：23r,Min
- Transport Package：Roro,Container,Bulk
- Specification：6500*2270*2340MM
- Trademark：SINOMADA
- Origin：China
- HS Code：84295100
- Production Capacity：100 Units, Month
Description
Product Description
Project
Unit
Parameter
Engine
Type
Cunmmins 6BT5.9-C130
Pated power
(kW/r/min)
97/2200
Thrust-Pull
Max thrust-pull force
(kN)
180
Thrust-pull speed
(m/min)
23
Rotation
Torque
(N·m)
6000
Max spindle speed
(r/min)
23
Mud pump
Max flow rate
(L/min)
250
Max pressure
(MPa)
8
Pipe
(mm×m)
φ60×3
Loader Crane
Lifting weight
(t)
-
Loading capacity
(t•m)
-
Max inclination angle
(°)
22
Max backreamer diameter
(mm)
φ600
Weight
(t)
8.5
Dimension
(mm)
6500×2270×2340
Remark
Optional:I.Mud antifreeze;II.Mud Cleaning

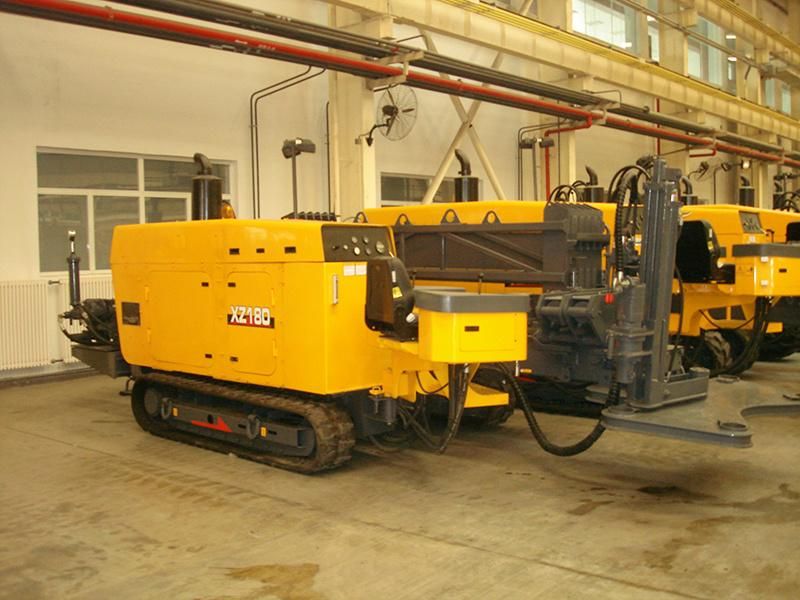

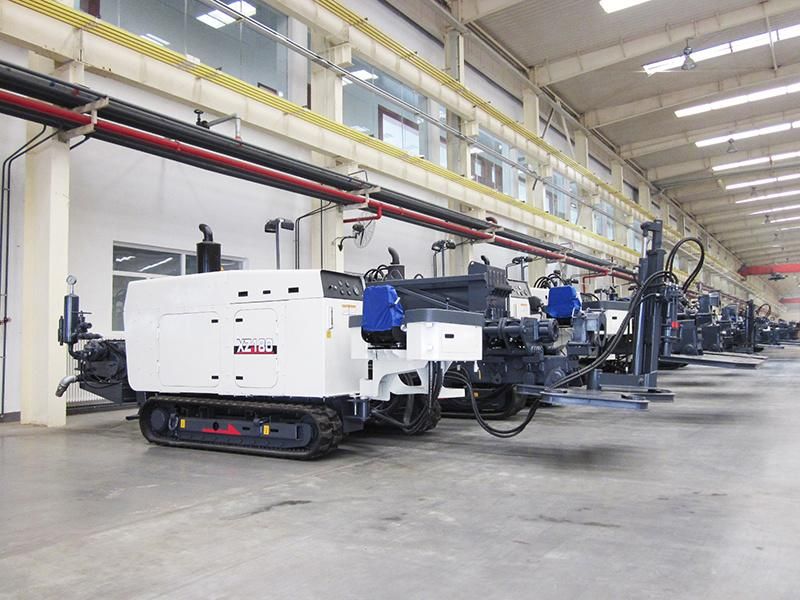

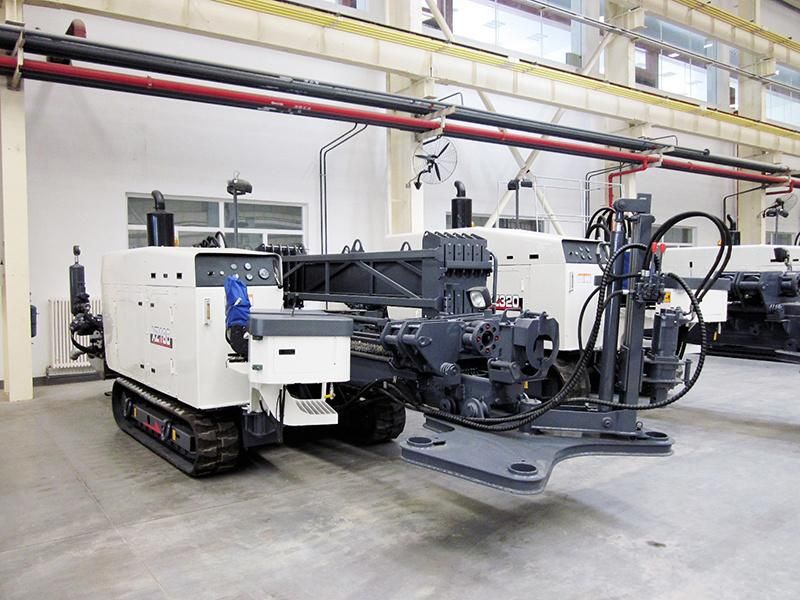

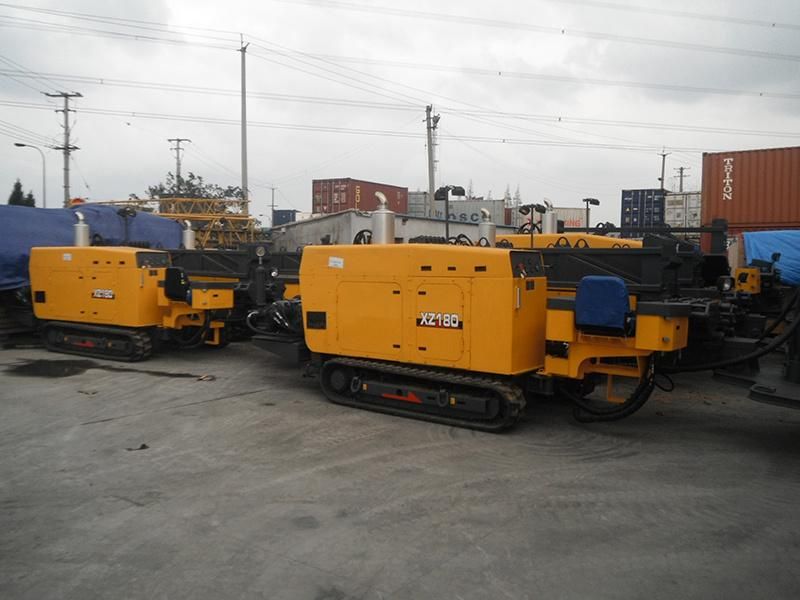

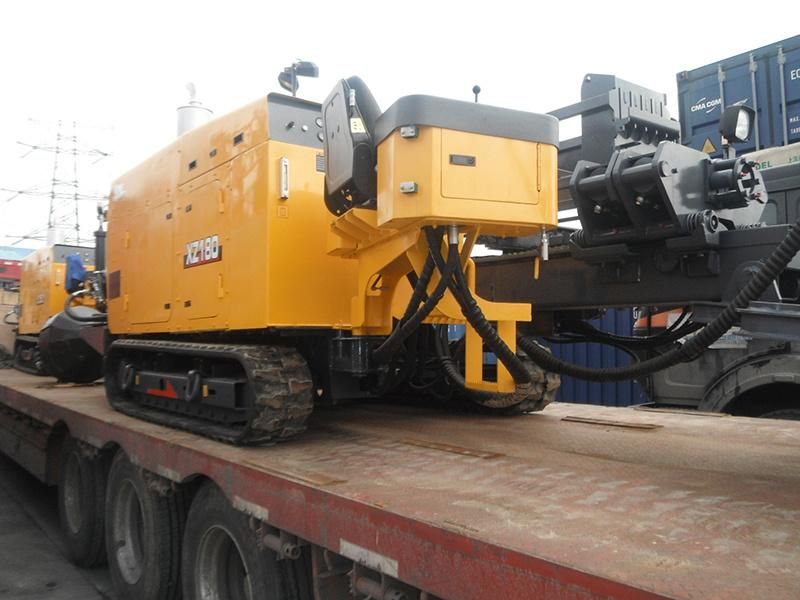

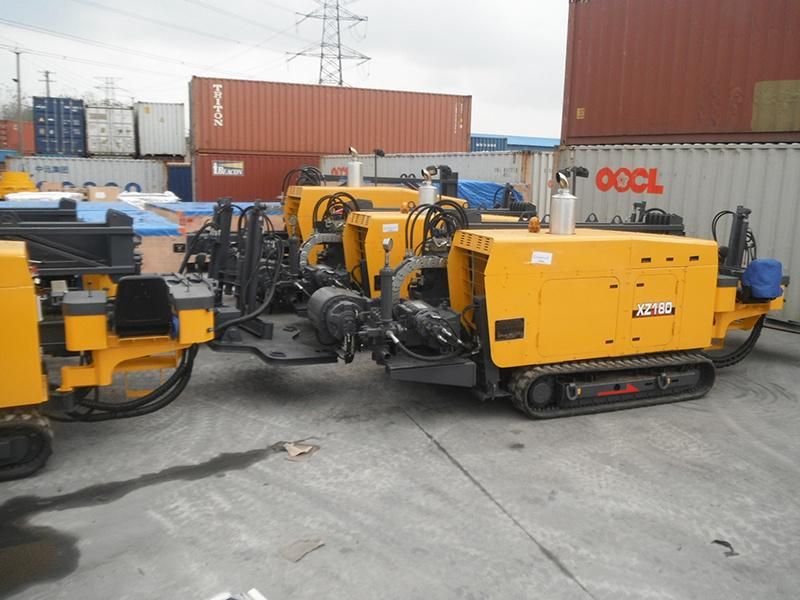

- Product Pictures
- Company information
