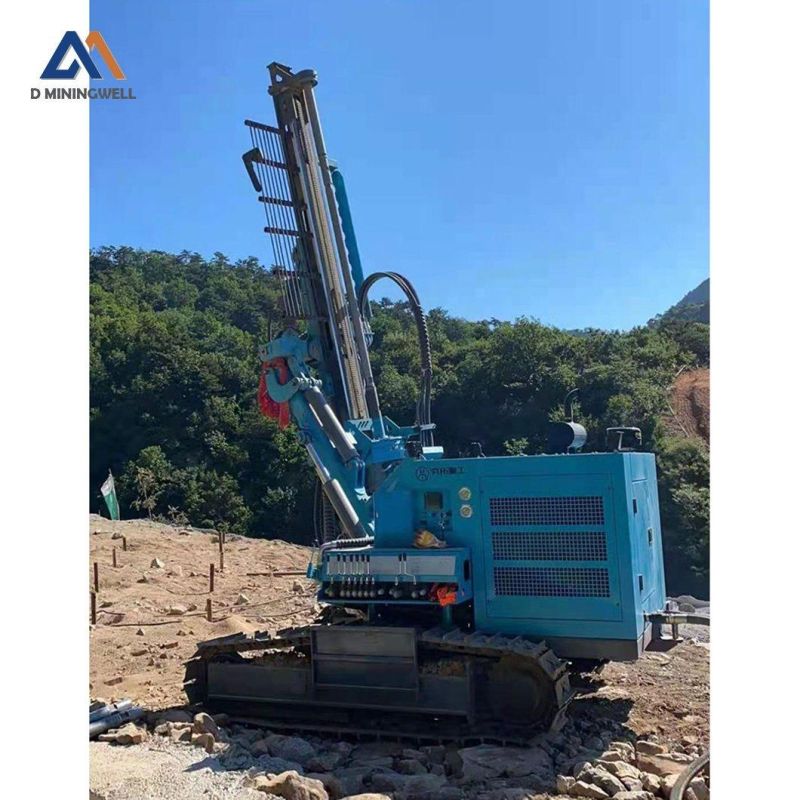

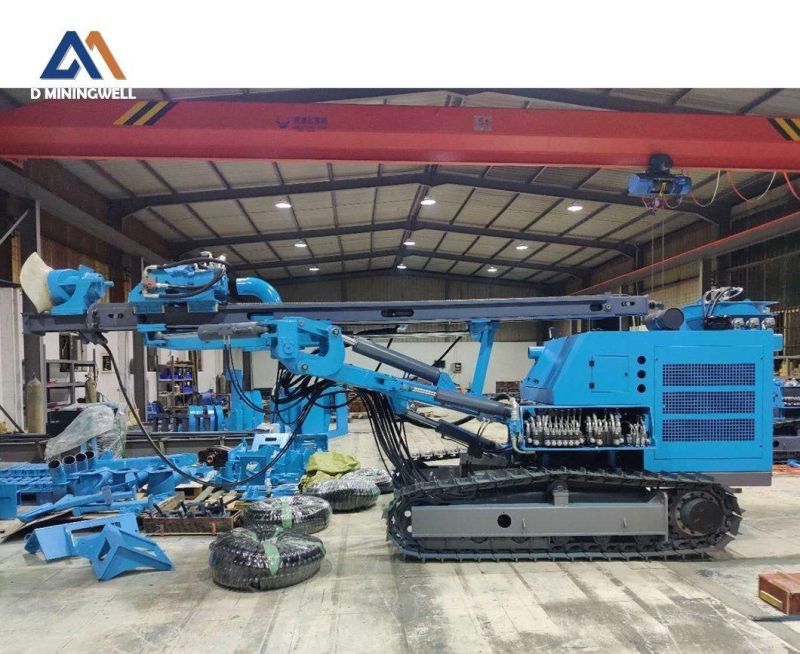

2021 Hot Sell Ht400 DTH Drilling Rig for Sale

Zhejiang Miningwell Supply Chain Management Co., Ltd.
  • After-sales Service：Video Technical Support, Online Support, Spare PAR
  • Warranty：1 Year
  • Certification：ISO9001
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：90-155mm

Base Info

  • Model NO.：HT400
  • Drill Hole Depth：<100m
  • Bit Type：Diamond Bit, Cone Bit, Drag Bit
  • Drilling Way：Impactor
  • Product Name：DTH Drill Rig
  • Hammer Size：3 , 4 , 5inch
  • Drill Rod Length：2 , 3m
  • Key Selling Points：Competitive Price
  • Rotation Torque：2800nm
  • Drilling Depth：Max.30m
  • Weight：5500kg
  • Transport Package：Carton
  • Specification：6.4m*2.2m*2.4m
  • Trademark：D Miningwell
  • Origin：Zhejiang, China
  • Production Capacity：20 PCS Per Month

Description

Main parametersHT400HT500HT600Hole Rangemm90-15590-20390-254Hammer SizeInch3 / 4 / 53 / 4 / 5 / 63 / 4 / 5 / 6 / 8Drill Rod Diametermm76 / 8976 / 8976 / 89Drill Rod Lengthm2 / 32 / 33050Economic Drilling Depthm303021Rotation torqueNm28001800-36002200-4400Rotation Speedrpm0-1100-1100-110Model Yuchai YC4DK100Yuchai YC4DK100Yuchai YC4DK100PowerkW73.573.573.5Pressure Requiredbar7~257~257~25Air Comsuptionm3/min8-208-208-20Advance lengthmm318531854125Max. PropulsionkN20.520.545.0Max.Walking Speedkm/h3.03.03.0Gradeabilityo25°25°25°Ground clearance of chassismm480310400Weightkg550058003200Length*width*height m6.4*2.2*2.46.4*2.2*2.46.4*2.2*2.4Leveling angleo/Front 13 / Back 13Front 13 / Back 13Dust Collector Dry typeDry typeDry type  2021 Hot Sell Ht400 DTH Drilling Rig for Sale2021 Hot Sell Ht400 DTH Drilling Rig for Sale2021 Hot Sell Ht400 DTH Drilling Rig for Sale2021 Hot Sell Ht400 DTH Drilling Rig for Sale2021 Hot Sell Ht400 DTH Drilling Rig for Sale
