• Model NO.：TZ-400
• Bit Type：DTH
• Drilling Way：Impactor
• Type：Crawler
• Power：Hydraulic
• Configuration：Portable
• Transport Package：Export Standard
• Specification：5400x1800x2480mm
• Trademark：TZ
• Origin：Guangxi Liuzhou
• HS Code：8430412900
• Production Capacity：100

Basic Info.

Model NO. TZ-400 Bit Type DTH Drilling Way Impactor Type Crawler Power Hydraulic Configuration Portable Transport Package Export Standard Specification 5400x1800x2480mm Trademark TZ Origin Guangxi Liuzhou HS Code 8430412900 Production Capacity 100

Product Description

Our TZ series water well drill rig is uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency,Reasonable overall layout uses the tractor-mounted or all terrain chassis for the transportation with good maneuverability.very flexible in difficult roads,it can be widely used in many fields,such as resource exploration of hydrology wells,coal bed methane,shallow layer of shale gas,terrestrial heat,ect,and can also be used for coal-mine gas exploitation or salvage work.TZ series well drilling rig have been exported to many countries



The top-mounted driving head principal shaft have a great drift diameter,which is suitable for many kinds of construction work such as mud pump drilling,air drilling and air foal drilling,meeting the demands of well drilling in different terrain strata



Model	TZ-350	TZ-400	TZ-450	TZ-500	TZ-600
Max drilling depth	350m	400m	450m	500m	600m
Drilling diameter	105-325mm	105-350mm	105-400mm	105-400mm	105-400mm
Adaptation condition	F=6-20	F=6-20	F=6-20	F=6-20	F=6-20
Recommendation Working pressure	1.2-3.5MPa	1.2-3.5MPa	1.2-3.5MPa	1.2-3.5MPa	1.2-3.5MPa
Recommendation air consumption	16-55m3/min	16-55m3/min	16-55m3/min	16-55m3/min	16-55m3/min
Drill Rod length	3/6 m	3/6 m	3/6 m	3/6 m	3/6 m
Drill rod diameter	89/102mm	89/102mm	89/102mm	89/102mm	102/114mm
Maximum propulsion	6T	8T	10T	10T	10T
Maxumum lifting force	16T	20T	24T	26T	30T
Fast forwarding speed	60m/min	60m/min	46m/min	50m/min	50m/min
Fast lifting speed	30m/min	30m/min	24m/min	25m/min	25m/min
Maximum  Rotation speed	70/140r/min	70/140r/min	70/140r/min	70/140r/min	70/140r/min
Maxumum rotation torque	6500/3250Nm	8000/4000Nm	8000/4000Nm	10000/5000Nm	11000/5500Nm
Drilling speed	10-35m/h	10-35m/h	10-35m/h	10-35m/h	10-35m/h
Winch lifting force	1.1T	1.1T	1.1T	1.5T	1.5T
Working speed	2.5km/h	2.5km/h	2.5km/h	2.5km/h	2.5km/h
Grade ability	21	21	21	21	21
High leg stroke	1.6m	1.6m	1.6m	1.6m	1.6m
Dimension	5650x1700x2260mm	5760x1800x2440mm	5760x1800x2440mm	5780x1900x2610mm	5780x1900x2610mm
Drilling method	Air Drilling or  Mud pump drilling	Air Drilling or  Mud pump drilling	Air Drilling or  Mud pump drilling	Air Drilling or  Mud pump drilling	Air Drilling or  Mud pump drilling
Engine	85Kw	92Kw	103Kw	129Kw	140Kw
Total weight	7T	8.3T	8.5T	10T	10.2T

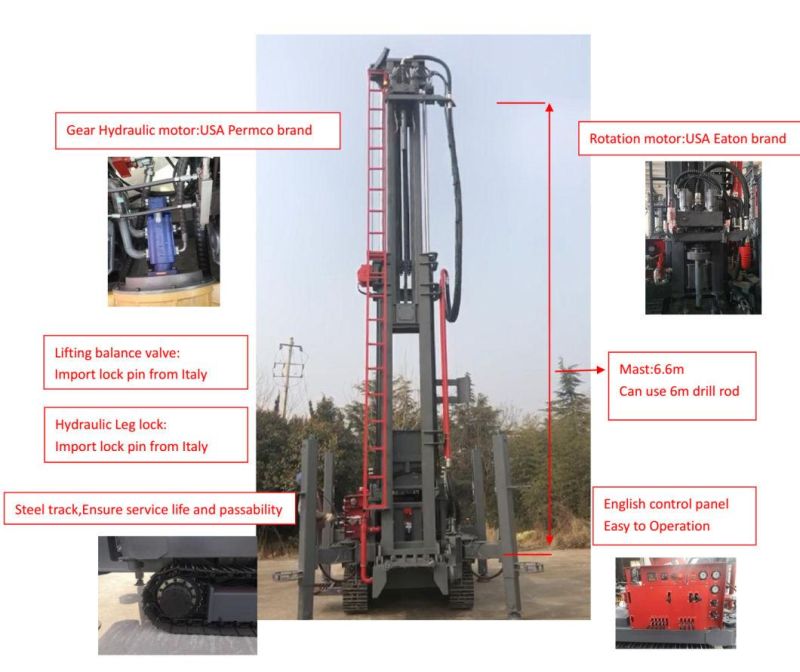

  Details determine quality

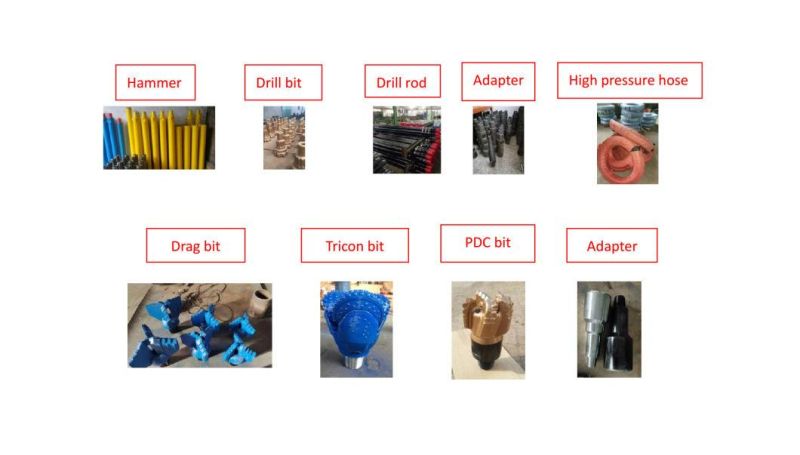

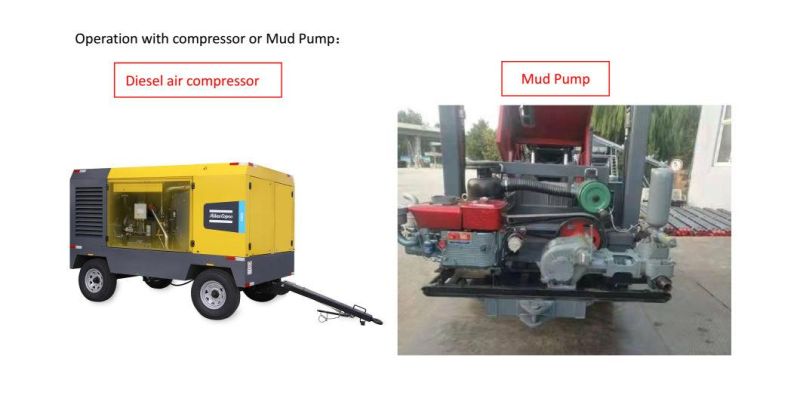

 You decide how to drilling,Compressor or Mud Pump Drilling Tools:

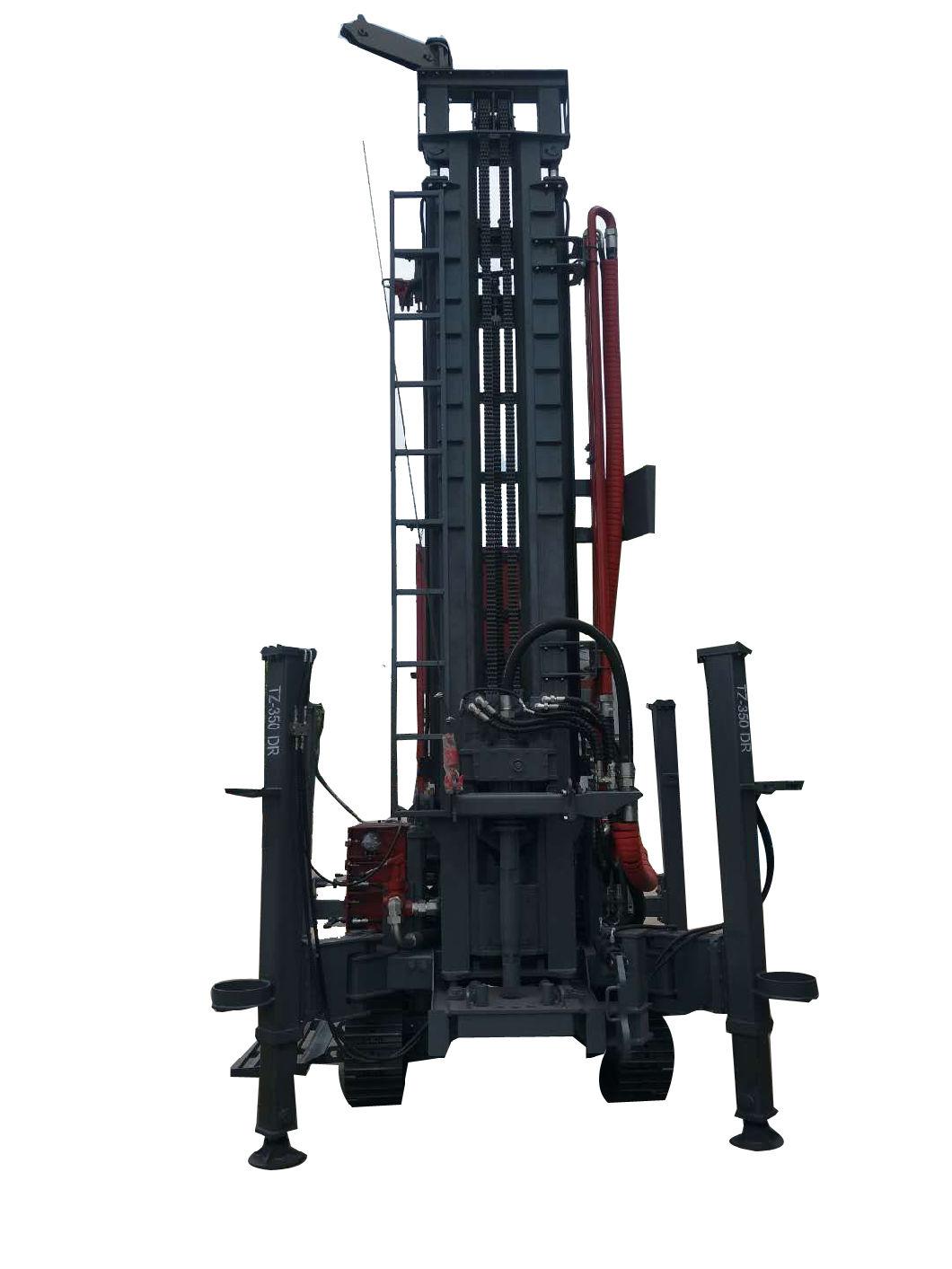

Products display:
