Portable Trailer Mounted Borehole Core Drilling Rig (XY-200)
Changsha Miracleland Import & Export Co., Ltd.- Certification：ISO 9001:2008
- Condition：New
- Motor：Diesel Engine
- Drill Hole Diameter：<100mm
- Drill Hole Depth：>200m
- Bit Type：Diamond Bit
Base Info
- Model NO.：XY-200 Portable Borehole Drilling Rig
- Drilling Way：Rotary
- Size：200m
- Usage：Ore, Water Well, Coal
- Transport Package：in New Strong Wooden Case
- Specification：ISO9001: 2008
- Trademark：csmiracleland
- Origin：Changsha, Hunan, China
- HS Code：8430691900
- Production Capacity：30 Sets,Month
Description
Basic Info.
Model NO. XY-200 Portable Borehole Drilling Rig Drilling Way Rotary Size 200m Usage Ore, Water Well, Coal Transport Package in New Strong Wooden Case Specification ISO9001: 2008 Trademark csmiracleland Origin Changsha, Hunan, China HS Code 8430691900 Production Capacity 30 Sets/MonthProduct Description

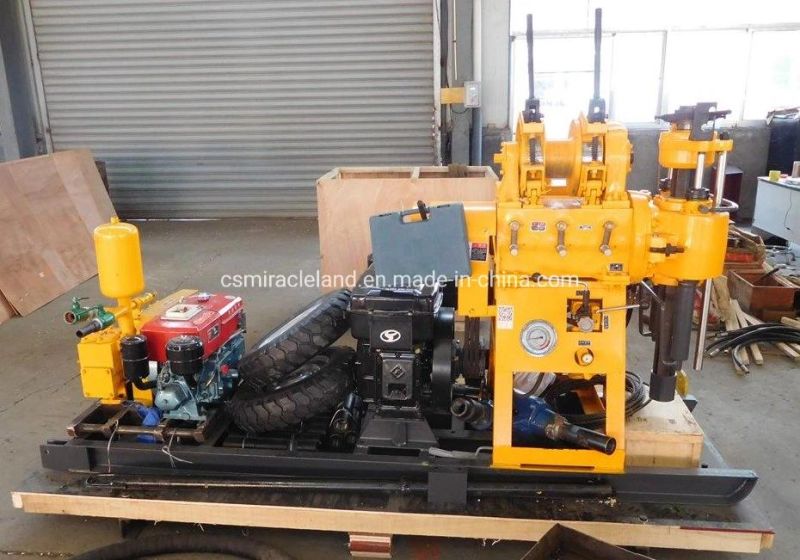

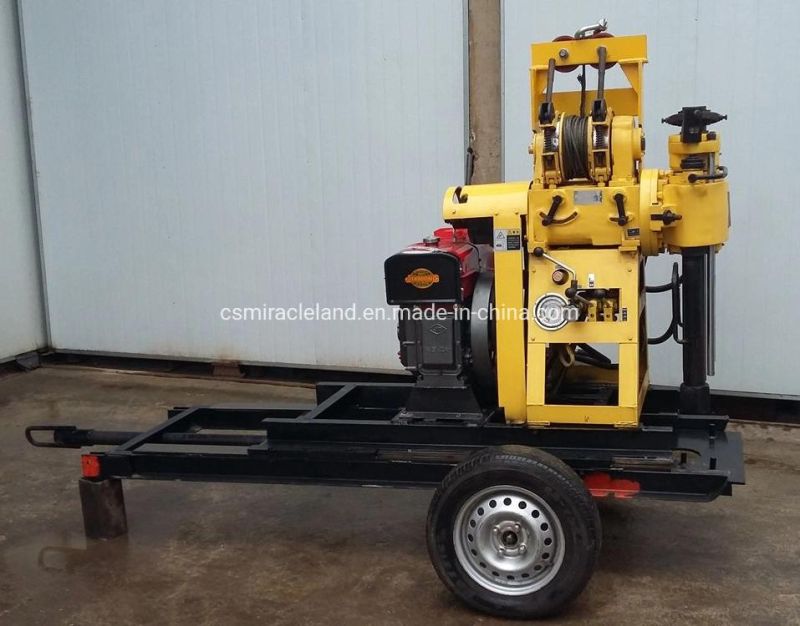

XY-200 Portable Trailer Mounted Borehole Drilling Rig:Drilling depth(m): 200;
LxWxH(mm): 1860x800x1400;
Spindle stroke(mm): 500;
Diesel engine: Zs1110(14.7 KW);
Electromotor: Y160L-4(15KW);
Product Features:
Good stability and high reliability.
Multilevel positive and reverse rotate speed.
The complete hydraulic chuck and vertical spindle.
Convenient to transport with the small volume and light weight.
Perfect frame's rigidity, low center of gravity and good stability.
Product Application:
It is widely used in the construction of the projects e. G. Prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
The Technological Data of XY-200 Drilling Rig:
| Type | XY-200 Drilling Rig |
| Drilling depth(m) | 200 |
| Drilling rod diameter(mm) | Φ50 |
| Head angle range | 360° |
| Cylinder stroke(mm) | 360 |
| Spindle speed(r/min) | Positive rotation rate: 60150240340550830 Reverse rotation rate: 3585135195330480 |
| Spindle hole diameter(mm) | Φ65 |
| Spindle output torque(N.M) | 2140 |
| Spindle stroke(mm) | 500 |
| Spindle driving force max.(KN) | 37 |
| Spindle lifting power max.(KN) | 50 |
| Lifting speed (m/s) | 0.62.33.4 |
| Single rope lifting power(KN) | 20 |
| Steel wire rope diameter(mm) | Φ11 |
| Mode of chuck | Full hydraulic chuck or ball-type chuck |
| Weight(power unit excepted)(kg) | 750 |
| Dimensions(LxWxH)(mm) | 1860x800x1400 |
| Diesel engine | Zs1110(14.7KW) |
| Electrometer | Y160L-4(15KW) |
