Hfp600 Diamond Core Drill Rig for Sale

Zhengzhou Hanfa Prospecting Machinery Co., Ltd.
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：>200m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：HFP600
  • Drilling Way：Rotary
  • Drilling Depth Capacity：100,300,600m
  • Hole Diameter：96,75.7,60mm
  • Core Diameter：63.5,56,42mm
  • Maximum Torque：650n.M
  • Maximum Rotation Speed：1300rpm
  • Usage：Core Drilling Hole Machine
  • Power Type：Diesel
  • Type：Core Drilling Rig
  • Transport Package：International Standard
  • Specification：CE, ISO
  • Trademark：Hanfa
  • Origin：Zhengzhou City
  • Production Capacity：30sets,Month

Description

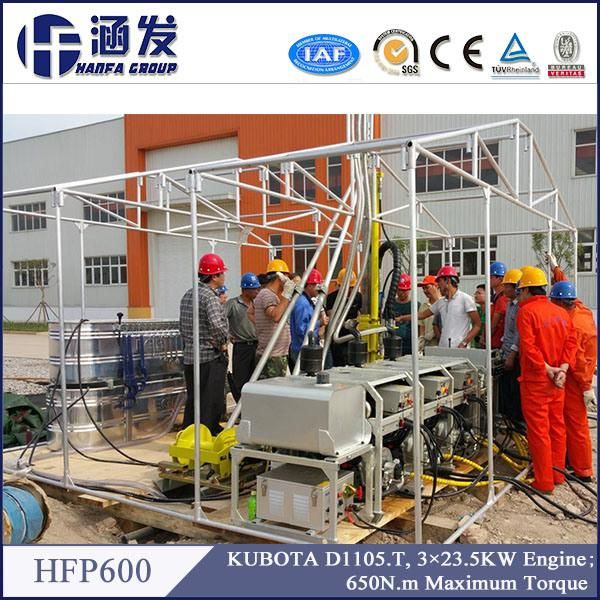

KUBOTA D1105.T, 3×23.5KW/3000RPMHydraulic systemAmerican Parker valve,water coolerMaximum pressure 21Mpa/max,Maxium flow 160L/minTop drive rotation headMaximum torque650N.mMaximum rotation speed1300rpmFeed travel 1.83mPull/Thrust50KN/30KN(Single cylinder)WinchAverage speed150m/minLift700kgWere Diameter5mmWere accommodation650mMastHeight of the mast on 90 degree5mDrilling angle45º-90º(standard )Size and weightPlatform area/Module quantity4m×4m/12 pieceGross/Maximum module1150kg/180kg

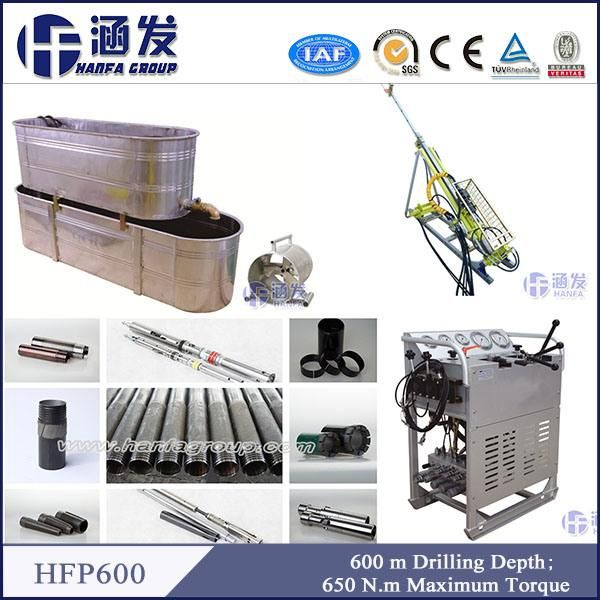

Hfp600 Diamond Core Drill Rig for Sale

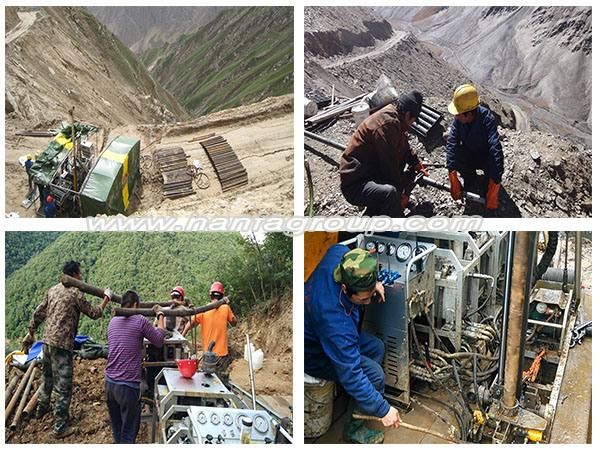

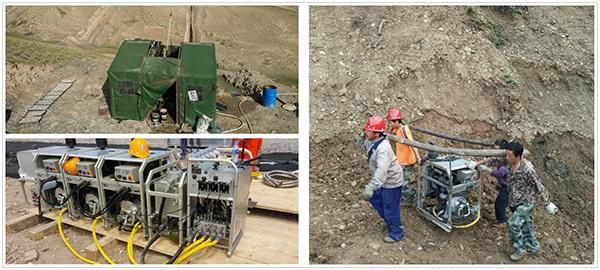

Construction  Site

Hfp600 Diamond Core Drill Rig for Sale
Hfp600 Diamond Core Drill Rig for SaleHfp600 Diamond Core Drill Rig for Sale
