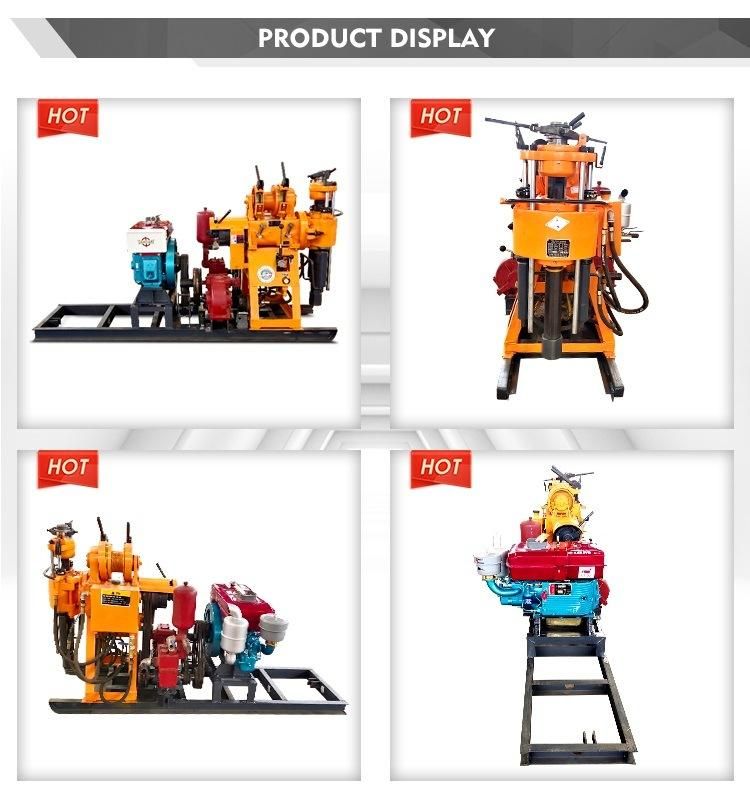

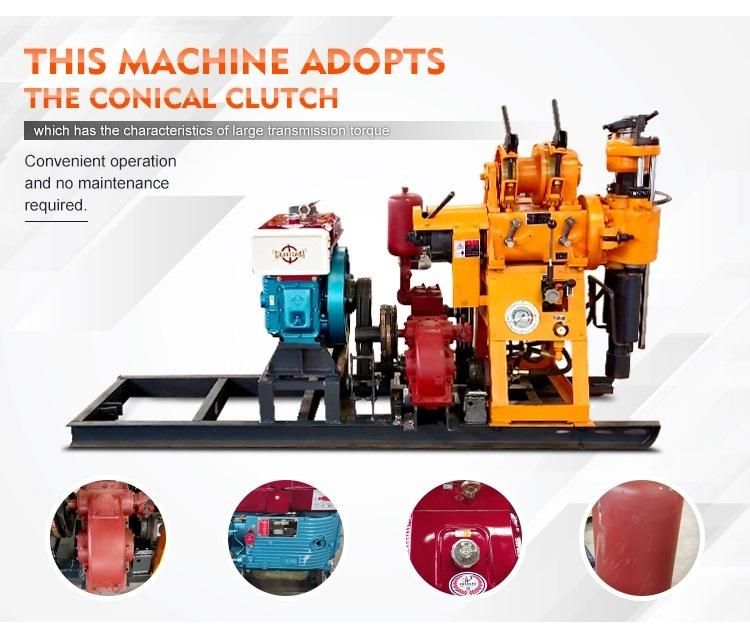

Moving Rock Drilling Machine Portable Water Well Drilling Rig for Sale
Shandong Beijun Heavy Industry Co., Ltd.- Certification：CE
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：150-200mm
- Drill Hole Depth：100-150m
- Bit Type：Diamond Bit
Base Info
- Model NO.：HZ-130Y
- Drilling Way：Rotary
- Type：Common
- Drilling Depth：130m
- Maximum Open Hole Caliber：220mm
- End Hole Caliber：75mm
- Drill Rod Caliber：50mm
- Drilling Angle：90-75°
- Drill Weight (Not Include Power)：750kg
- Spindle Speed：142 285 570r,Min
- Spindle Stroke：450mm
- Max.Single Line Hoisting Capacity：1600kg
- Single Line Lifting Speed：0.41,0.82,1.64m,S
- Drum Diameter：140mm
- Transport Package：Wooden Packaging
- Specification：750kg
- Trademark：Beijun
- Origin：Shandong
- Production Capacity：1000 Set a Month
Description
Mud pumpType Horizontal single urn twin-action Electric motor 95/77 l/min Maximum pressure 1.2mpa Work pressure 0.7mpa Water inlet caliber 30mm Water to exit caliber 20mm Triangle conveyer belt B1575mm
