• Model NO.：DFQ-200
• Color：Yellow, Blue
• Engine Power：50kw
• Working：1.05-2.0 MPa
• Walking Speed：0~2.0 Km,H
• System：Hydraulic Control
• Transport Package：Standard Container
• Specification：3700x1660x2350 mm
• Trademark：DEFY
• Origin：Henan, China
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. DFQ-200 Color Yellow, Blue Engine Power 50kw Working 1.05-2.0 MPa Walking Speed 0~2.0 Km/H System Hydraulic Control Transport Package Standard Container Specification 3700x1660x2350 mm Trademark DEFY Origin Henan, China Production Capacity 100 Sets Per Month

Product Description

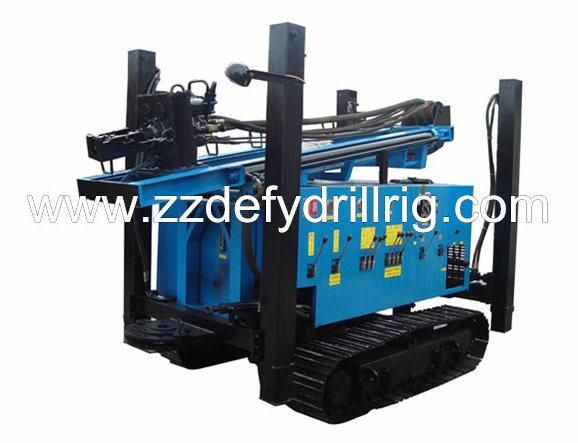

                           DFQ-200 compressor borewell hard rock blasting drilling rig
Product Description

DFQ-200 drilling rig is a light weight, high efficiency and multi-function drilling equipment, it adopts rubber crawler, will not damage the roads, self-propelled transitions,convenient and quick. It is widely used for water well drilling,geothermal air-conditioning project and other boreholes, especially applicable to mountain area and rock formation water engineering. Much higher efficient than the traditional rotary drill rigs, creating the considerable economic benefit for users.

DFQ-200 drilling machine is able to work efficiently under all kinds of geological conditions.DFQ series penumatic well drilling rig is very popular in market from Kenya, Nigeria, Ethopia, Mombasa, Uganda, South Africa, Zimbabwe, Chile, Peru, Malaysia, Dominica, India, etc.

1. Suitable land condition is mainly very hard rock, like marble, granite, limestone.

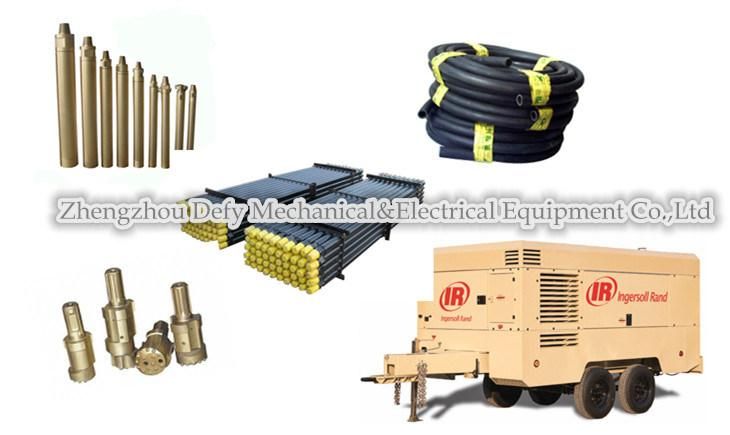

2. Equipped with special DTH hammer and DTH bit, efficient in rocky area.

3. Power is diesel engine, suitable outside working.

4. Need use with air compressor.

5. Higher efficiency, compared with traditional rigs. Drilling speed--20 m/h.
Product Parameters


No.	Item	Specification
1	Drilling caliber	Φ105-203mm
2	Max. drilling depth	200m
3	Diameter of drill pipe	Φ76
4	Unit Length of drill pipe	3000mm
5	Work pressure	1.05-2.0 MPa
6	Gas consumption	10-24 m³/min
7	DTH Hammer	DHD350360
8	Apply to rock hardness	f=6-12
9	Power	50Kw/2200rpm
10	Gradeability	25°
11	Walking speed	0~2.0 Km/h
12	Ground clearance	215mm
13	Leg cylinder stroke	900 mm (1500mm)
14	System pressure	20MPa
15	Propulsion	5.0 tonf
16	Lifting force	8.5 tonf
17	Speed of spindle	Fast 105 rpm     Slow 68 rpm
18	Rotary torque	2200N.m
19	Weight	5200 Kg
20	Dimension	3700×1660×2350 mm

Certifications

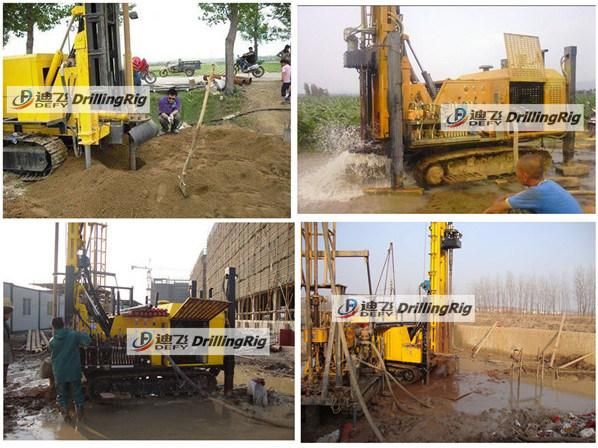

Working Site



Our Service
1. Provide factory cost accessories all year

2. Engineers are available to service machine overseas or free training in factory

3. Online service 24hours*7 days

4. 12 months quality warranty for main body
 Key Points To Buy

In order to order the suitable product,firstly you need to make sure the following details:

1. Application: What kinds of projects you will work for,Water well,Borehole,Exploration coring,Foundation Piling or others?

2. Drilling depth: The Max. depth of drilling you hope to achieve?

3. Drilling Caliber: The Min. and Max. hole diameter you estimate?

4. Stratum: Condition of the environment, Soft ground like soil,mud,Hard ground like rocks or Mixed the soft and hard layers?
