• Model NO.：XY-600F
• Drilling Way：Rotary
• Type：Four-Wheel trailer
• Usage：Water Well
• Voltage：380V
• Power(W)：38kw
• Weight：2880kg
• Diesel Engine：50HP, 2200r,Min
• Application：Water Well, Soil Sampling, Pile Foundation etc
• Stratum：Gravel, Soil, Sand, Hard Rock etc
• Control System：Hydraulic System.High Efficiency
• Color：Green,Blue,Yellow or as Your Requirement
• Transport Package：Container
• Specification：3700*1850*3200mm
• Trademark：DEFY
• Origin：China Henan
• Production Capacity：200 Sets Per Month

Basic Info.

Model NO. XY-600F Drilling Way Rotary Type Four-Wheel trailer Usage Water Well Voltage 380V Power(W) 38kw Weight 2880kg Diesel Engine 50HP, 2200r/Min Application Water Well, Soil Sampling, Pile Foundation etc Stratum Gravel, Soil, Sand, Hard Rock etc Control System Hydraulic System.High Efficiency Color Green/Blue/Yellow or as Your Requirement Transport Package Container Specification 3700*1850*3200mm Trademark DEFY Origin China Henan Production Capacity 200 Sets Per Month

Product Description

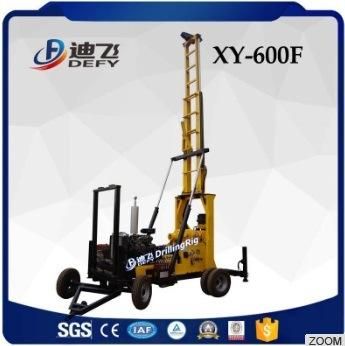

          XY-600F 600m geological drilling machine, deep bore well drill rig
XY-600F can drill up to 600m depth,diameter from 500mm to 75mm,with Hydrualic Foldable Mast and Hydraulic Support Legs, 53 HP Diesel Engine,BW-200 or BW-250 Mud pump,can be used for Water wells,Geothermal wells,Explorationg coing works and so on.

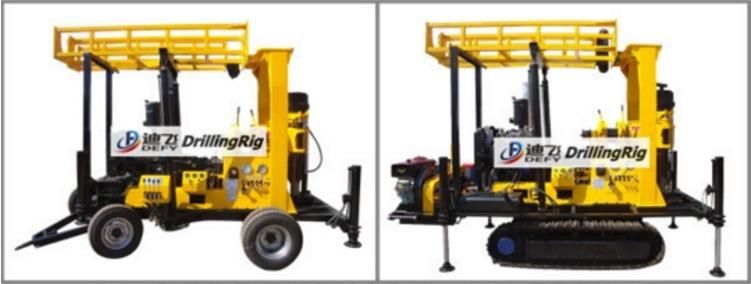

To meet different user requirements, we design and manufactuer different types:
(1) XY-600F four-wheel trailer mounted drilling rig
(2) XY-600C crawler mounted self-propelled drilling rig
(3) XY-600 truck mounted drilling rig.

No.	Item	Specification
1	Drilling rig	XY-600F
2	Diesel engine	ZS1115
3	Gear box	LG525
4	Battery	12V-105
5	Drill tower	7.0M
6	Wheel	Front 4 back 2
7	Kelly	B59x53x4100
8	Drill pipe	Ø50x1000mm
9	Drill pipe	Ø50x2000mm
10	Drill pipe	Ø50x3000mm
11	Drill pipe	Ø50x4200mm
12	Pipe joint	Ø65
13	Three-wing bit	Ø160
14	Diamond PDC bit	Ø113
15	Diamond bit	Ø113
16	Core barrel	Ø108
17	Sediment barrel	Ø108
18	Double wire head	108-50
19	High pressure water faucet	Ø50
20	Elevator	65
21	Reducer union	50/50
22	Padding fork	65
23	Big fork wrench	65
24	Small fork wrench	65
25	Pipe tongs	110-1200
26	Drill pipe tongs	50
27	Padding board	10mm
28	Steel wire rope	Ф13mm
29	Wire rope shoe	13mm
30	Grease gun	LP-200
31	Pressure lubricator	80ml
32	Lithium lubricating  grease	250g
33	Connecting bolts	M16x60
34	Safety gear lever	Ø22x500
35	Hanging hook	Ø22
36	Rubber seal	10x7
37	Floodlight	12V
38	Bearing	6306-2RS
39	Bearing	6305-2RS
40	Composite gasket	Φ16
41	Composite gasket	Φ22
42	High pressure mud pump	BW-200II-50
43	Diesel engine	ZS1100
44	Cylinder liner	80
45	Plunger	80
46	Pull rod	30
47	Water inlet pipe	65
48	Water outlet pipe	38

Main Features
1. It can move.
Slide base: It is to make machine move when you need to adjust drilling position.
2. It has different types.
Four-wheel, crawler.
3. Hydraulic control system
With integrative drilling tower, supported by two high strength oil cylinder, hydraulic controlling the rise and fall of the tower. Operation is extremely convenient, saving time and labor effort, creat max. benefit for the user.
4. Different bits
Three-wing Bit, Alloy Bit, Diamond Bit. According to your Geological conditions, I can help you choose suitable bit.
5. Spare parts
We provide factory cost accessory all year round.
6. Power
Diesel engine
7. Mud pump
The machine is equipped with a complete set of independent BW-200 mud pump, with high pump flow rate and pressure, convenient maitenance, convenient to buy spare and accessory parts all around.

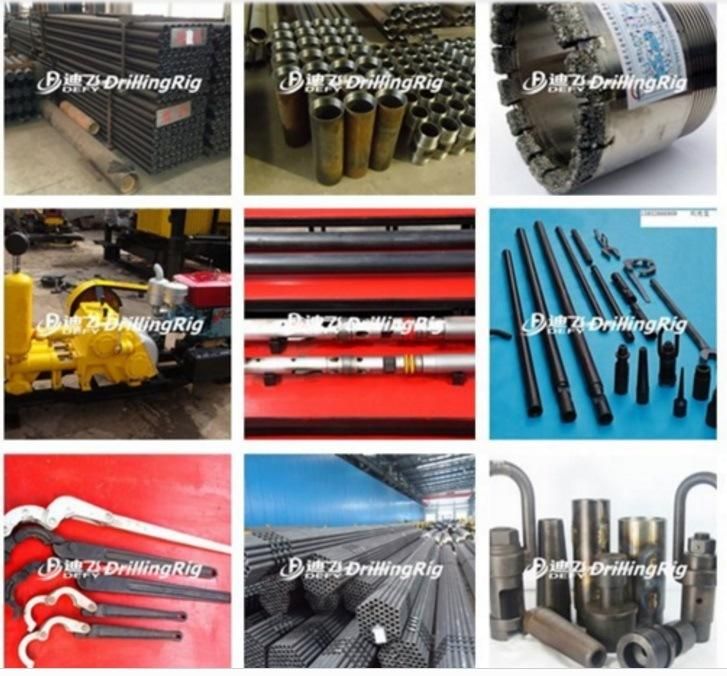

Related accessories


Certifications


Our Service
Pre-Sales Service
We have QC department, before shipping, goods will be strictly checked.

After-Sales Service

- 24 hours * 7 days online pre & after sale service ;
- Factory site training or engineers go to overseas to train the workers ;

Packing & Delivery

Package of Water well Drilling Rig XY-600F To protect drilling rigs during sea transportation, we give them proper packing. Main machines: In wooden case Spare parts: Wooden case or plastic woven bag

Contact Us
Please don`t hesitate to contact us if XY-600F  borehole drilling rig is fit for your business. And you are highly appreciated that if you could tell us more details of your business, then we can recommend most suitable model of drilling rig to you.
