• Max Size of Work Piece L*W(mm)：1500*800
• Max. Punching Diameter (mm)：26
• Max. Drilling Diameter (mm)：50
• Transport Package：Wood Box
• Specification：customized
• Trademark：NEUTRON TECH
• Origin：Shandong, China
• HS Code：8465920000
• Production Capacity：100 Piece,Pieces Per Month

Basic Info.

Max Size of Work Piece L*W(mm) 1500*800 Max. Punching Diameter (mm) 26 Max. Drilling Diameter (mm) 50 Transport Package Wood Box Specification customized Trademark NEUTRON TECH Origin Shandong, China HS Code 8465920000 Production Capacity 100 Piece/Pieces Per Month

Product Description

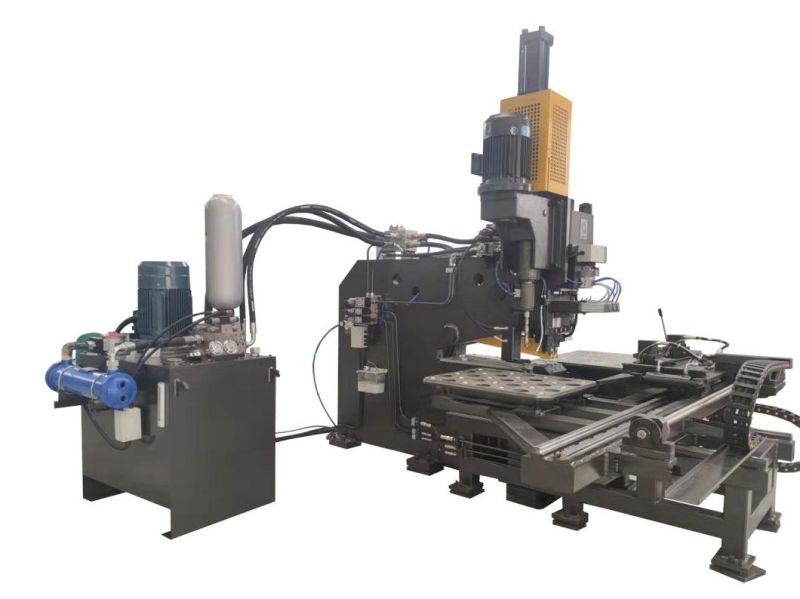

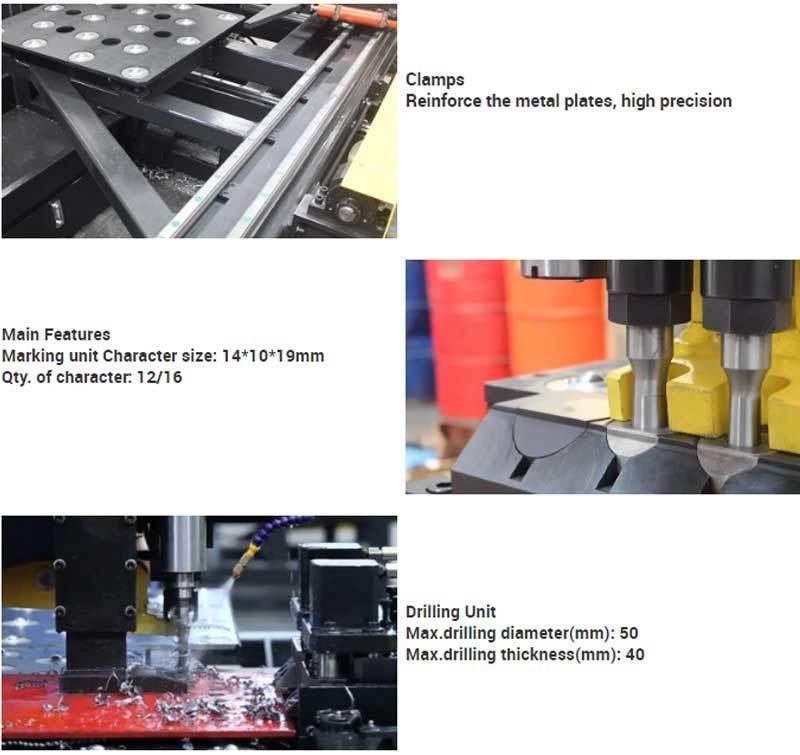

Hydraulic Punching Machine PPD103B

PPD103B Hydraulic Punching Machine parameters:1.Max. punching force:1000kN2.Max. size of workpiece: 775×1500mm3.Thickness of workpiece:5 ~ 25mm4.Max. punching diameter :  φ25.5mm(16Mn,20mm thickness Q235, 25mm thickness)(we only provide the die of 16mm thickness for test run. If you want the die  of 20mm,25mm thickness for test run,  you must provide the female die yourself) 5.No. of die station:   3(one of them can be equipped with stamping die)6.Min. distance between hole and plate edge          Punching:    25mm
Drilling:     the distance depends on the hole diameter 7.Max. marking force:               800kN8.No. and size of character:           10 (14×10mm)9.Drilling diameter (high-speed steel twist drill): φ16 ~ φ50mm10.Rotation speed of drilling spindle (stepless speed variation):120~560r/min,    5.5kW11.Max. stroke of drilling spindle:      180mm12.Feeding speed (hydraulic stepless adjustment) 20~200mm/min13.The processing precision:It can fit the stipulations of first-rate products in < The Classifying Standard of Steel Tower of the Transmit Electricity Line >. The specific numerical value:
14.The space between arbitrary holes on the joint plate: longitudinal: ±0.5mm transverse :  ±0.5mm
15.Node plate: space between any two group holes : ±1.0mm, the space of the hole to the side of the steel plate: ±1.0mm
16.The vertical degree, "t" is the thickness of plate ≤ 0.03t and ≤ 2mm17.Motor power of hydraulic pump: 15kW18.Power of servo motor (X and Y axes):  2×2kW19.The compressed air force ×discharging quantity: 0.5MPa×0.1m³/mi
n20.Overall dimension  (length × width ×height):  3100×2988×2720mm21.weight :Approx.6500kg22.The motor of X and Y axes are world famous brand AC servo motor. The main electric controlling components (PLC and CNC orientation system, encoder and switch without touching), hydraulic components, pneumatic valve (electromagnetic valve, overflow valve, and unloading valve) and cylinder are all world famous brand.23.Working environment:Working temperature: 0ºC~ 40ºC
Power: Three phase four wire system
AC Voltage: 380V
Fluctuation of voltage: ±10%
Frequency: 50 Hz
