• Model NO.：XY-100
• Drilling Way：Rotary
• Type：Four-Wheel trailer
• Product Name：Drill Rig
• Model：Xy-100
• Application：Water Well, Geological Investigation etc.
• Walking Type：Trailer
• Max. Drill Depth：100m
• Drilling Diameter：75-300 mm
• Drill Rod Dia.：50 mm
• Engine：Diesel
• Power：18 HP
• System：Hydraulic
• Mud Pump：95,77 L,Min
• Dimension：2000*900*1400 mm
• Weight (Not Include Power)：520 Kg
• Color：Customized
• Warranty：1 Year for Main Machine
• Transport Package：Standard Wooden Cases.
• Specification：2000*900*1400 mm
• Trademark：DEFY
• Origin：Henan, China
• HS Code：84304900
• Production Capacity：100 Sets Per Month

1.Overall parameters

Drilling depth

100m

Maximum open hole caliber

300mm

End hole caliber

75mm

Diameter of drill rod

50mm

Drilling angle

90°~ 75°/360°

Weight(not include power)

520kg

Dimension

2000*900*1400mm

2. Vertical shaft

Rotating speed

142, 285, 570 r/min

Feeding stroke

450mm

3.Hoist

Max. single line hoisting capacity

1600Kg

Diameter of wire rope

11mm

Volume of winding drum

27 m

Hug floodgate caliber

230mm

Hug floodgate belt width

50mm

4.Mud pump

Type

Horizontal single urn twin-action

Rate of flow

95/77L/min

MAX. pressure

1.2MPa

Working pressure

0.7MPa

Diameter of  water inlet tube

42mm

Diameter of  water outlet tube

32mm

5.Power

Diesel engine

18HP, 2000r/min

Electrical motor

11KW, 1460r/min

• Power can be equipped by electrical motor or diesel engine, as per your project needs;

• The gearbox and vertical shaft box are combined into one, more compact structure and
  improve the overall rigidity;

• Hoist adopts Frictional clutch mechanism, using powder metallurgy friction plate,with
  good performance and long service life; With rapid and convenient hydraulic movable
  base, reliable hydraulic position locking, greatly improve the working efficiency before
  drilled hole, such as adding and taking off the drill rods ;

• Hydraulic part: piston rod adopts stern sealing ring(sealing ring for shaft),hydro-cylinder
  piston adopts Glyd ring(sealing ring for hole), up to international advanced level, with
  good sealing performance and durability;

• Easy to be disassembled, installed and operation, the Heaviest part is less than 100KG,
  convenient for maintenance and transport;

• With large rotary torque which are better than the other same level drilling machines.
  The rotary unit has different rotating speed grades, which can meet the requirements in
  different layers and different drilling projects.

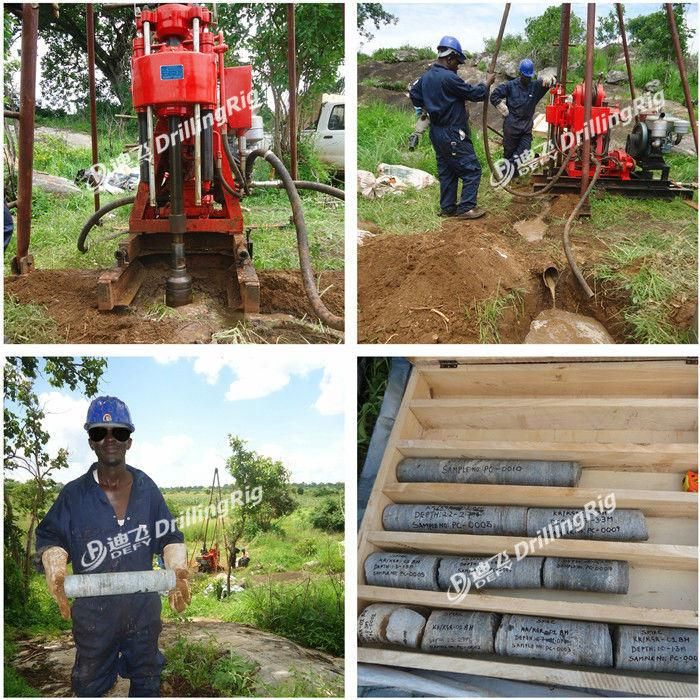

• Very Effective in Diamond drilling.

Q1: Are you trading company or manufacturer?
A1: We are original equipment manufacturer.we design,produce and sell.We master the core
      technology, and constantly adjust our products according to the market trend and customer
      feedback, ensure product quality.

Q2: How long is your delivery time?
A2: It is according to the model and quantity.
      Generally it is 3-5 days if the machines are in stock.
      It will be 15-30 days if you want to customize the machines.

Q3: What do I need to do after payment?
A3: a) If under FOB trading terms,you need to employ a ship forwarder to ship the goods to you;
      b) Under CIF trading terms,we send the goods to the destination port,and contact you to pick
           up the goods; All documents for customs clearance will be sent to you by international
           express after shipment.

How to choose a suitable drilling rig?

1. What will you do using drilling rig?
---For water project, core sample, soil test, mineral prospect or others?

2. The depth you need?
---For water well, generally, 30-200m. For core sample, 30-600m, even more.

3. Any requirements to hole diameter?

---Within a certain range, the smaller diameter, the deeper depth. Mathematically, we call it
inversely proportional.

4. Working land condition?
A. soil, sand, weathered land, etc. soft stratum.
B. soil, sand, soft and hard rock stratum, mixed one.
C. Mainly hard rock, like granite.

Based on the above information, Our experienced engineers will help you recommend suitable
machine and price. If you have special demands, please tell us ahead.



About Us

    Zhengzhou Defy Mechanical & Electrical Equipment Co.,Ltd. locates in High-tech zone of
Zhengzhou city, China.

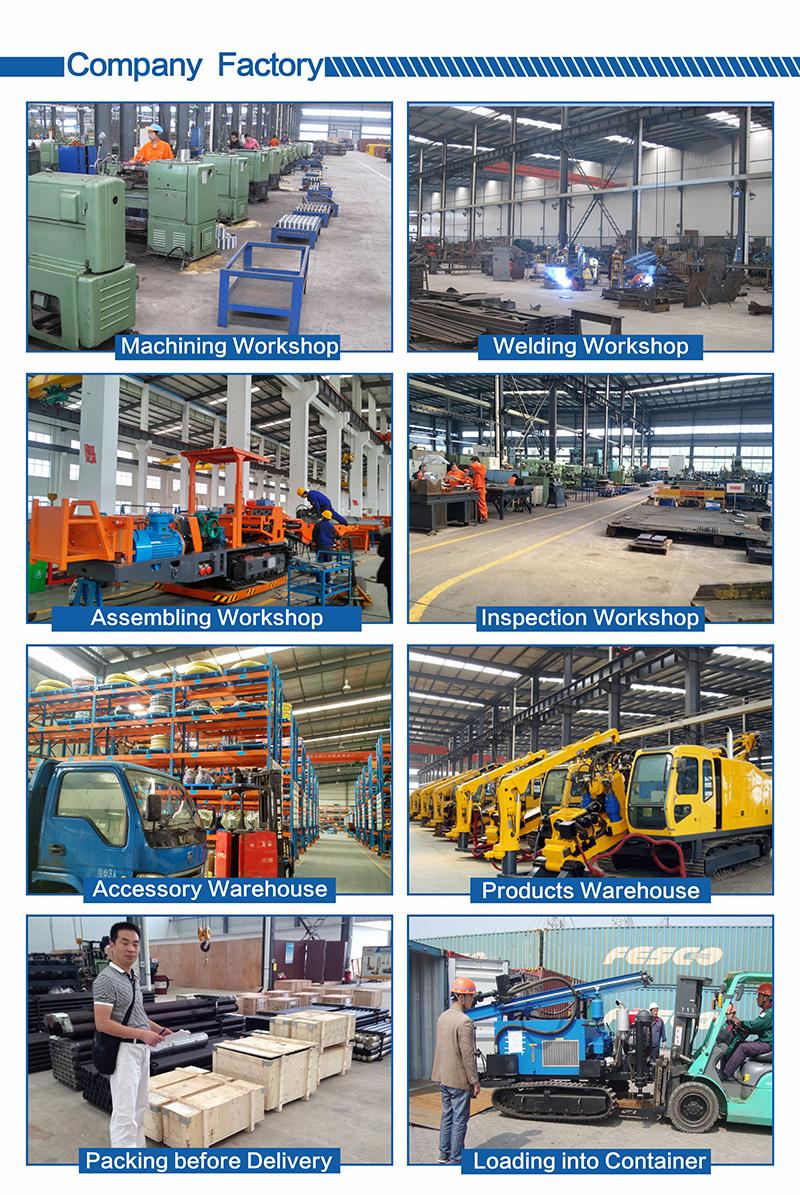

    Our factory dedicates in manufacturing drilling rig since 1970s, more than 40 years' experience
