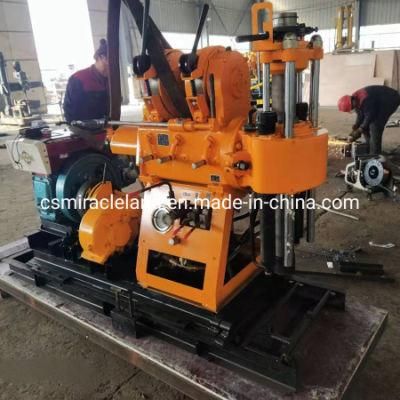

Mining Exploration Drilling Rig (YZJ-200Y)
Changsha Miracleland Import & Export Co., Ltd.- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：150-200mm
- Drill Hole Depth：150-200m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
Base Info
- Model NO.：YZJ-200Y Mining Exploration Drilling Rig
- Usage：Ore, Water Well, Coal
- Power Type：Diesel
- Type：Core Drilling Rig
- Transport Package：in New Strong Plywood Case
- Specification：200
- Trademark：csmiracleland
- Origin：Changsha, Hunan, China
- HS Code：8430490000
- Production Capacity：20 Sets,Month
Description
Unity machine parameterDrilling depth(m) 150200 Open hole diameter max.(mm) Φ300 End hole diameter(mm) Φ75 Drilling rod diameter(mm) Φ60 Head angle range 90°~75° Weight(power unit excepted)(kg) 1150 Dimensions(mm) 2430x950x1430 The main machine's moving distance(mm) 300 Spindle Spindle speed(r/min) 104208467907 Spindle stroke(mm) 450 Hoist Single rope lifting capacity max.(kg) 2400 Single rope lifting speed(m/s) 0.410.821.64 Reel diameter(mm) 260 Steel wire rope diameter (mm) Φ13 Steel wire rope length of drum(m) 35 Hug floodgate belt width(mm) 70 Hug floodgate diameter(mm) 260 Mud pump Type Horizontal single-urn double action Diesel engine displacement/Electric motor 145Lmin Pressure max.(Mpa) 3 Work pressure(Mpa) 1.5 Water inlet diameter(mm) Φ40 Water outlet diameter(mm) Φ30 Triangle conveyer belt(mm) B1100x1 Hydraulic pump standard CBT-F-314 Diesel engine 170L/min Electric motor 140L/min
