• Model NO.：KQD150B
• Recommended Air compressor：LGY-13,8
• Dimension：2900*1000*850
• Weight：600kg
• Usage：Ore, Water Well, Coal, Quarry
• Power Type：Electric
• Type：Rotary Drilling Rig
• Transport Package：Carton or Wooden Case
• Specification：Down The Hole Drilling
• Trademark：KAISHAN
• Origin：Zhejiang, China
• HS Code：8430390000
• Production Capacity：1000PCS,Month

ModelKQD150BDrilling Hole Dia.90-130MMDrilling Depth>50MRotation Speed0-60rpmWorking Pressure0.7-1.4MpaDrill Rod Dia.*Length76*1500mmAir Consumption>12m3/minMax. Push Power12000NDriven Power7.5kw motorRecommended Air CompressorLGY-13/8

≥3.(m3/min)

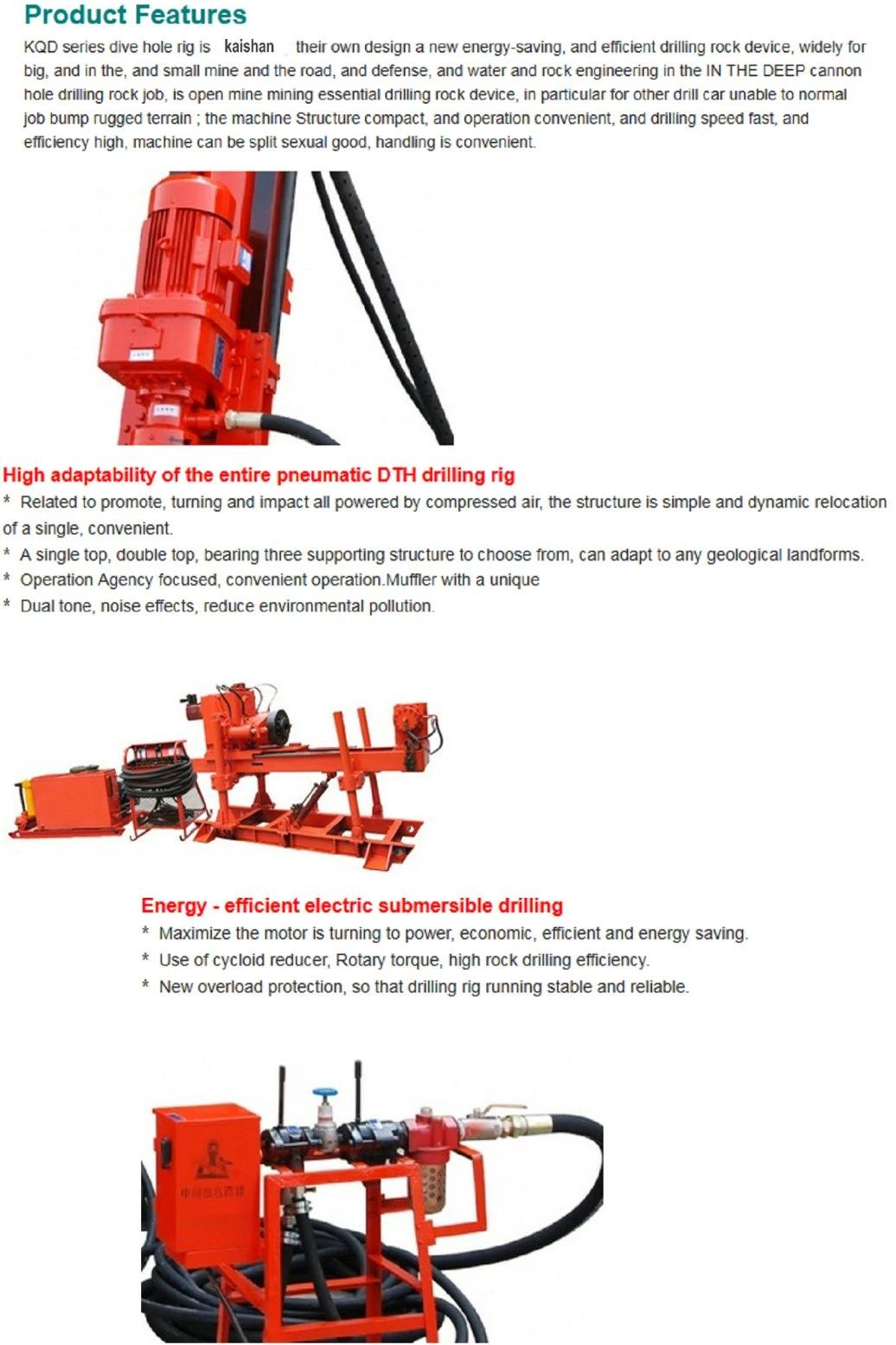

Main Elements of DTH drill rig show:


Matched Hammer's specification for DTH Drill.
 Part nameQCZ100Dirll hole dia.100-130mmSuitable drill rod76*1500MMCapacity10m3/minWorking pressure7-14barOutside dia.100mmLength855mmWeight22kg

Matching Drill rod :  Ø 76*1500mm

Matching Drill Bit:    Low wind pressure drill bit (80-100mm)

Matched Portable  Screw Air COmpressor

ModelLGCY-13/10 or LGY-13/8Capacity (m³/min)13m3/minWorking Pressure (Mpa)0.8-1.0 MpaWeight (kg) Dimension (mm)

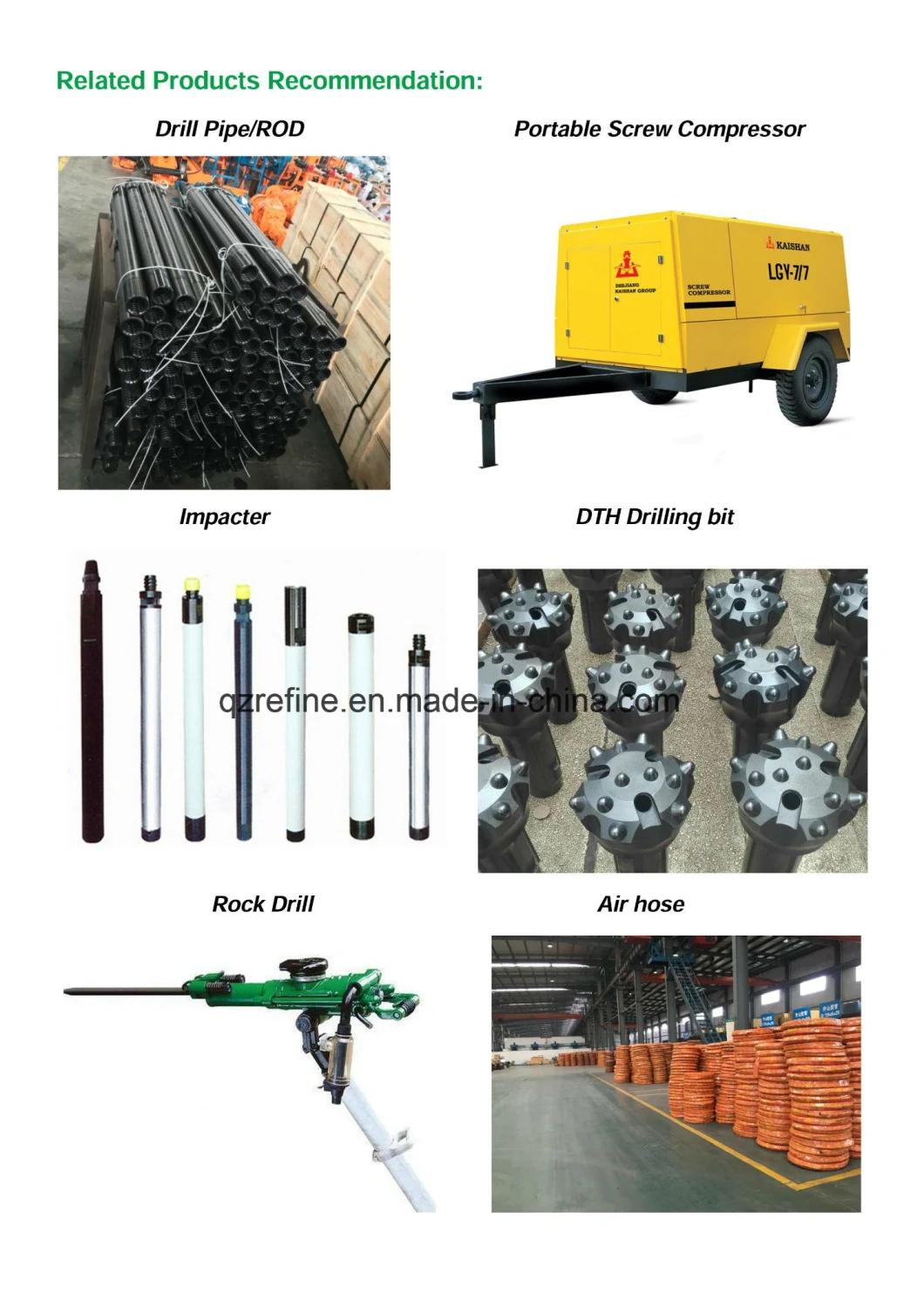

You may also interested in below accessories for Down The Hole Drill rig.

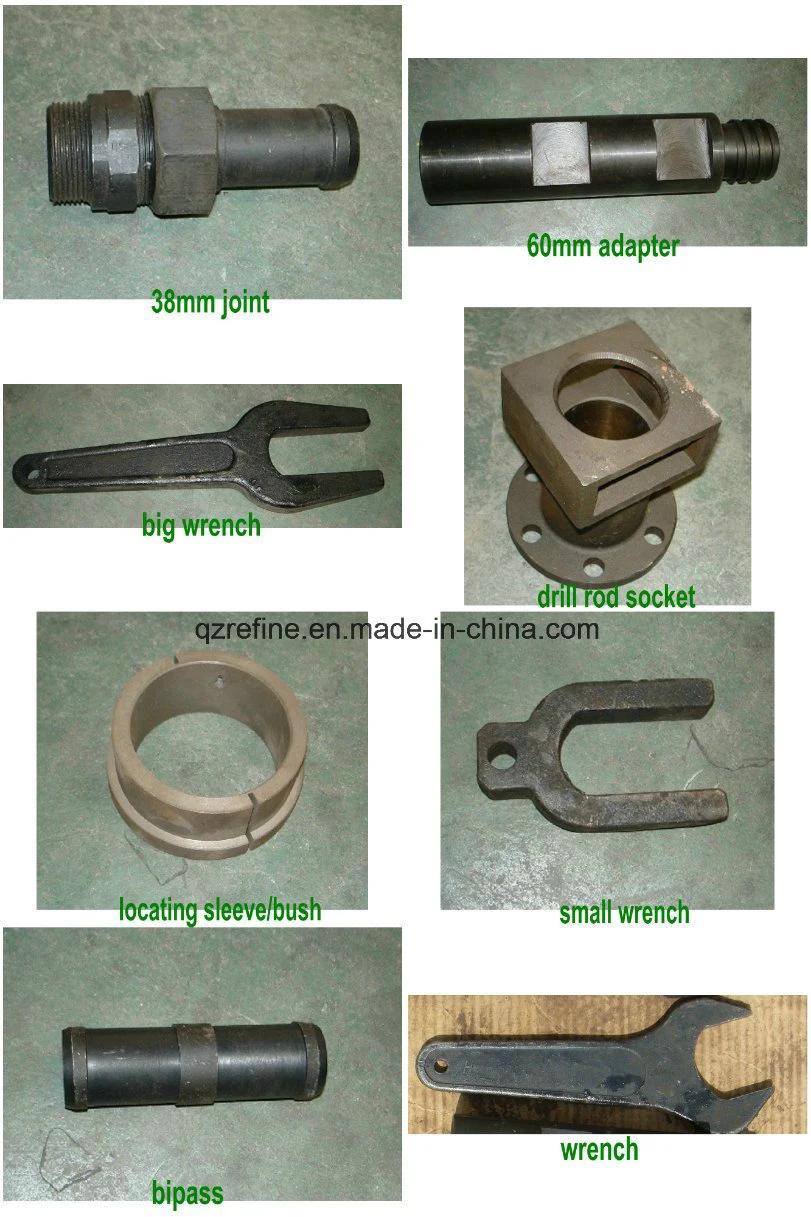

The Spare parts Kit for DTH Drilling Rig

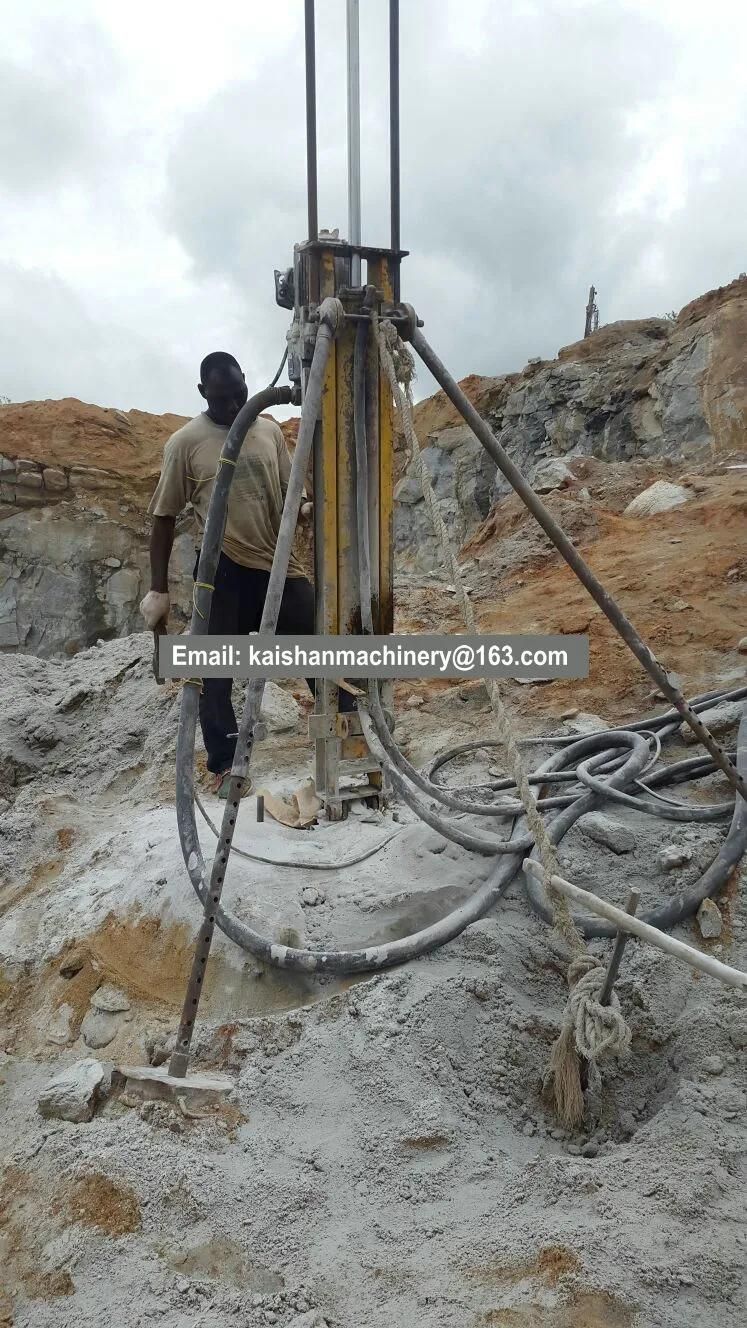

DTH Drilling Rig Applicated in our client's project:

About KAISHAN GROUP:

Zhejiang Kaishan Compressor Co., Ltd. is currently the largest domestic manufacturer of air compressors and the largest manufacturer of screw air compressors in Asia. Kaishan operates various production bases in different cities and regions, including Zhejiang, Shanghai, Chongqing, Guangdong, and Australia. In 2014, Kaishan reported sales revenue of approximately RMB 2 billion.

FAQ Collection:
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.

Q2: What the exactly address of your factory?
A2: Our factory is located in No.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China

Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equirement.

Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.

Q7: How long will you take to arrange production?
A7: we can delivery the normal goods within 7-15 days. Other nonstandard electrical items we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
