50m 60m 80m 100m Portable Diesel Electric Rock Drill Machine Water Well Drilling Rig
Henan Yugong Machinery Co., Ltd.- After-sales Service：Provide
- Warranty：Provide
- Condition：New
- Motor：DC Motor
- Drill Hole Diameter：80-250mm
- Drill Hole Depth：60-120m
Base Info
- Model NO.：YG-20, YG-30. YG-40, YG-60. YG-80
- Bit Type：Diamond Bit
- Drilling Way：Rotary
- Type：Two Wheel
- Name：Small Borehole Drilling Rig Machine
- Application：Drill Water Well
- Drilling Method：Percussive and Rotating Type
- Transport Package：Wooden Packing
- Specification：800*800*2700 mm
- Trademark：YUGONG
- Origin：China
- HS Code：8430419000
- Production Capacity：10000units,Year
Description

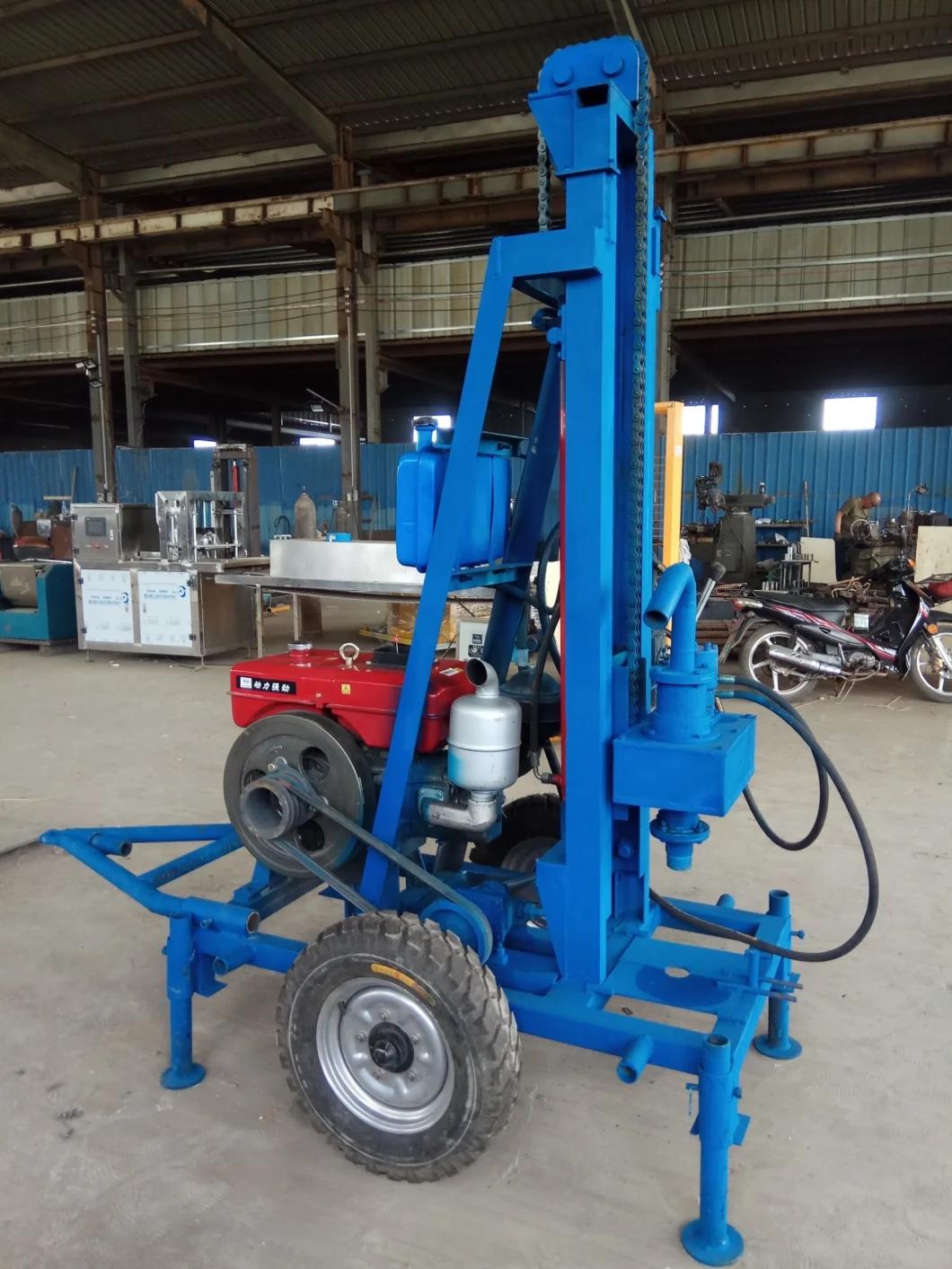

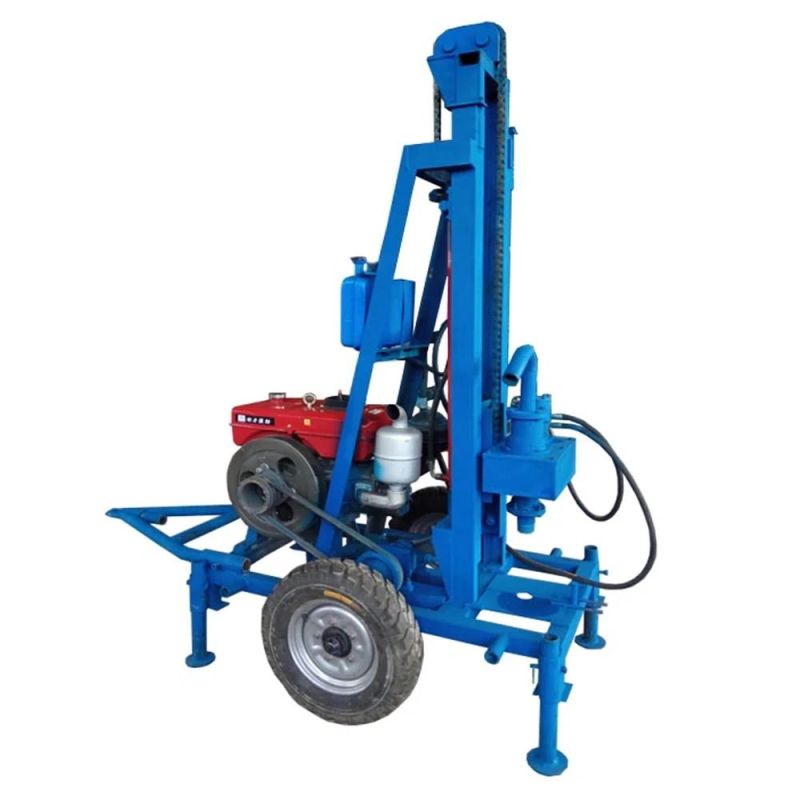

This drillring rig is mainly used for geothermal drilling, farm irrigation, house yard, gardons and water well drilling. It also can be used in small building piling, such as farm house or factory
Model
YG280
Engine
Diesel
Drilling Depth
120m
Drilling Diameter
20-300 mm
Motor Power
8/12/20HP
Drilling Method
Percussive and Rotating Type
Pump Power
4 HP
Drilling Rod Diameter
51 mm
Drilling Rod Length
1500 mm
Rod Change Method
Full Automatic Screw Thread
Dimensions
800*800*2700 mm
Weight
350 kg
Product Features:
1.Light weight, energy saving
2.Patented product, unique design and simple drilling structure
3.Easy to transport and can learn how to operate the machine in short time
4.Can drill through hard stratum, unless thick rock layer
5.Assure easily operation and long time service life
6.One person can operate, reduce the labor intensity
7.High efficiency and can work fast
Application for the machine:
Its advantages are: small power, large torque, small size, portable, high efficiency, easy to operate, low noise To adapt to various environmental terrain drilling machine. The machine is easy to use, simple operation, fast into the hole and 10 meters per hour, the noise is small, operation is extremely simple, single to operation, mechanical dump drill pipe, hit 100m at wells, for example, drill pipe removing, on average, about 10 minutes, and mobile and convenient, completion of drilling operation, a single operation to complete moving work.
