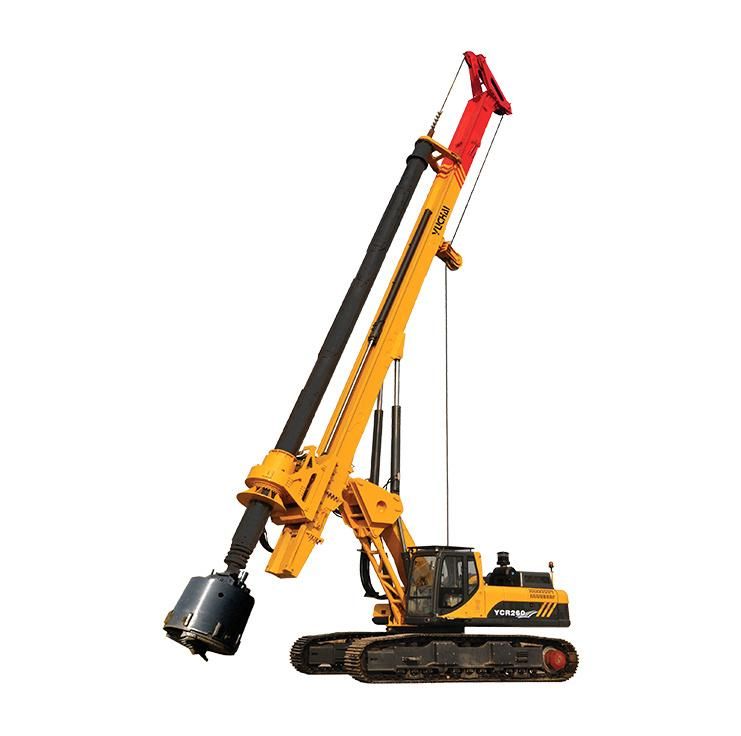

Yuchai New Rotary Drilling Rig Ycr280d Drilling
Oriemac Machinery & Equipment (Shanghai) Co., Ltd.- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：200-250mm
- Drill Hole Depth：150-200m
- Bit Type：Diamond Bit
- Drilling Way：Mobile Gyrator
Base Info
- Model NO.：YCR280D
- Type：Crawler
- Rated Power：268,2100kw,Rpm
- Track Shoe Width：800mm
- Traction Force：510kn
- Rotary Speed：6-26rpm
- Max. Output Torque：280kn*M
- Max. Pulling Force(Main Winch)：260kn
- Max. Pulling Force(Auxiliary Winch)：80kn
- Max. Working Pressure：33MPa
- Total Working Weight：90000kg
- Transport Package：Nude Package
- Specification：Hydraulic
- Trademark：xc
- Origin：Jiangsu China
- Production Capacity：3000
Description
MODEL
YCR260
YCR280D
Max. pile Diameter(mm)
2000
2000/2500
Max. pile Depth(m)
80
80/54
Max.output torque(kN m)
260
280
Speed of rotationrpm
6~25
6~24
Engine model
MINS QSM11-C330
MINS QSM11
Rated power (kw/rpm)
246/2,100
268/2,100
Working pressure(Mpa)
34
34
Diameter of the steel wire rope(mm)
32
32
The length of crawler (mm)
5816mm
5815
Track shoe width(mm)
800
800
Operating weight (t)
83
90
Transport Dimensions (LxWxH/mm)
16165*3300*3510
16565/14935*3300*3510

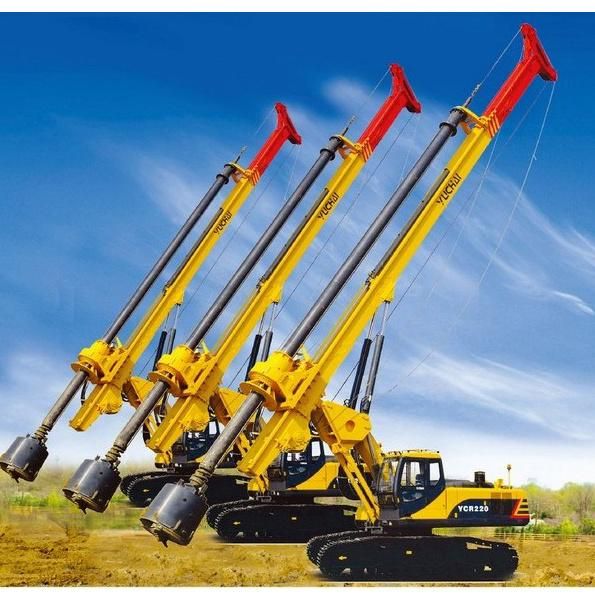

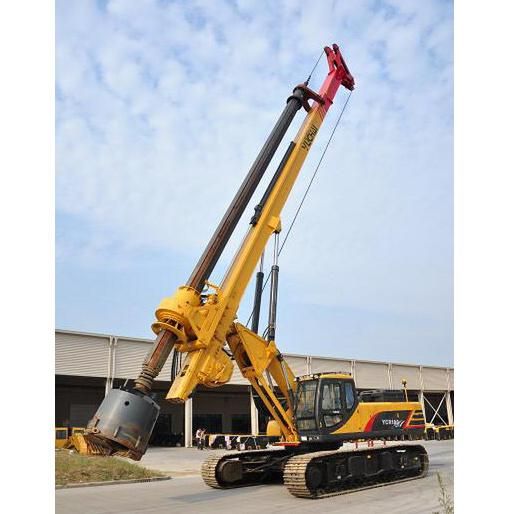

Products pics
