• Model NO.：HYDX-6
• Drilling Way：Compound
• Nq Drilling Capacity：1600 M(5248 Feet)
• Bq Drilling Capacity：2000 M(6560 Feet)
• Pq Drilling Capactiy：1000 M(3280 Feet)
• Hq Drilling Capacity：1300 M(4264 Feet)
• Diesel Engine：Cummins 6CTA8.3-C240

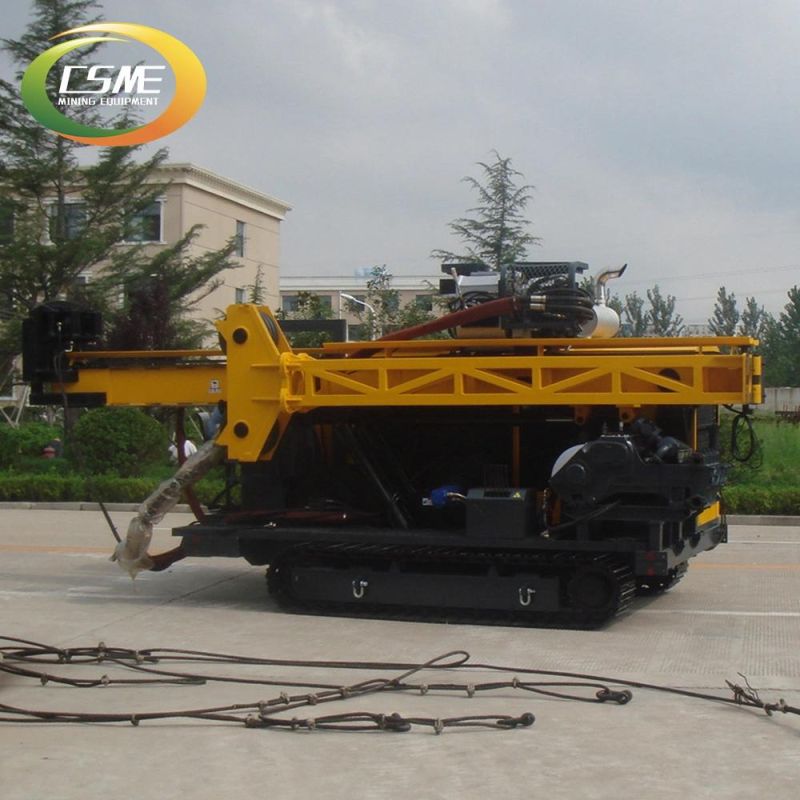

• Drilling Methods：Crawler Mounted Hydraulic Core Drilling Rig
• Weight：14500kgs

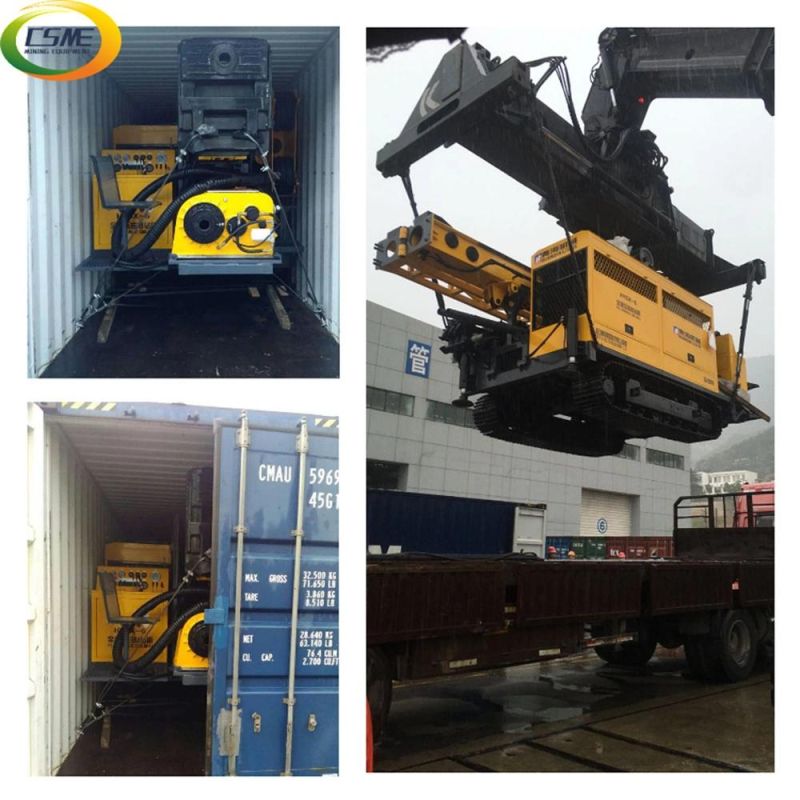

• Transport Package：Null Package
• Specification：6250*2220*2500mm
• Trademark：CSME
• Origin：China
• HS Code：8430412200
• Production Capacity：50 Sets,Month

Diesel EngineModelCummins 6CTA8.3-C240 (turbocharged and charge water cooled)Displacement8.3L (2.19 US Gallons)Power179kW (240HP)Rated RPM(Factory setting)2200rpmDrilling CapacityBQ2000 m(6560 feet)NQ1600 m(5248 feet)HQ1300 m(4264 feet)PQ1000 m(3280 feet)Drill HeadRotation MotorDouble Hydraulic Motor-variableRPMTwo Shifts/ Stepless Change 0-1100 RPMRatios1st     8.776:12nd     2.716:1Head Openersidewise sliding way with hydraulic driveHydraulic Chuck(PQ)Hydraulically opened, Disc Spring Clamping, Normally C Closed TypeAxial Holding Capacity of 222 400 NMax. Torque6400 N·m(4717 lbf·ft)Hold Diameter121 mm(4.76 inch)Max. Lifting capacity of Spindle220 kN(49456 lbf)Max. Feeding Power110 kN(24728 lbf)Primary PumpHydraulic pump: Axial Piston variable displacement Triplex pump for driving of rotator, winch mud pump & leveling jacks.With load sensing system.Maker: DANFOSS 1st Pump:200LPM at 31.5MPa2nd Pump:120LPM at 28MPa3rd Pump: 102 LPM at 16MPaHydraulic TankCapacity420 L (111 US Gallons)Capacity of Main HoistHoisting Speed (single wire)38-70m/min(bare drum)Hoisting force (single wire)120kN(26976 lbf)Steel Wire Diameter22 mm(0.86 inch)Steel Wire Length50 m(164 feet)Capacity of Wireline HoistHoisting Force (single wire)15 kN(3372 lbf) (bare drum)Steel Wire Diameter6 mm(0.24 inch)Steel Wire Length2000 m(6560 feet)MastMast Height12 m(39.4 feet)Mast Adjusting Angle0°-90°Drilling Angle45º off horizontal to 90ºvertical downFeeding Stroke3800 mm(150 inch)Slippage Stroke1100 mm(59 inch)Feed Pull22000kg(48510 lb)Feed Thrust11000kg(24255 lb)Rod Pull3m or 6m(9.84feet or 19.68feet)Mud PumpTypeReciprocating Pump Triplex PlungerModelBW320Stroke110mm(4.3 inch)Output volume320,230,165,118 L/min(84.5, 61, 44, 31 US Gallons/min)Discharge pressure4.0, 5.0, 6.0, 8.0 Mpa(580, 725, 870, 1160 psi)Foot ClampClamping Scope55.5-117.5 mm(2.19-4.63 inch) through hole dia. 154mm(6.06 inch)OthersWeight14500 Kg(31967 lb)Transport Dimensions (L × W ×H )6250×2220×2500mm (246×87.4×98.42 inch)Transport WaySteel Crawler
