• Model NO.：HHZ-130YY
• Drilling Way：Compound
• Type：Four-Wheel trailer
• Drill Rod Diameter：42-60mm
• Drill Angle：90-75
• Matching Power：13.2kw

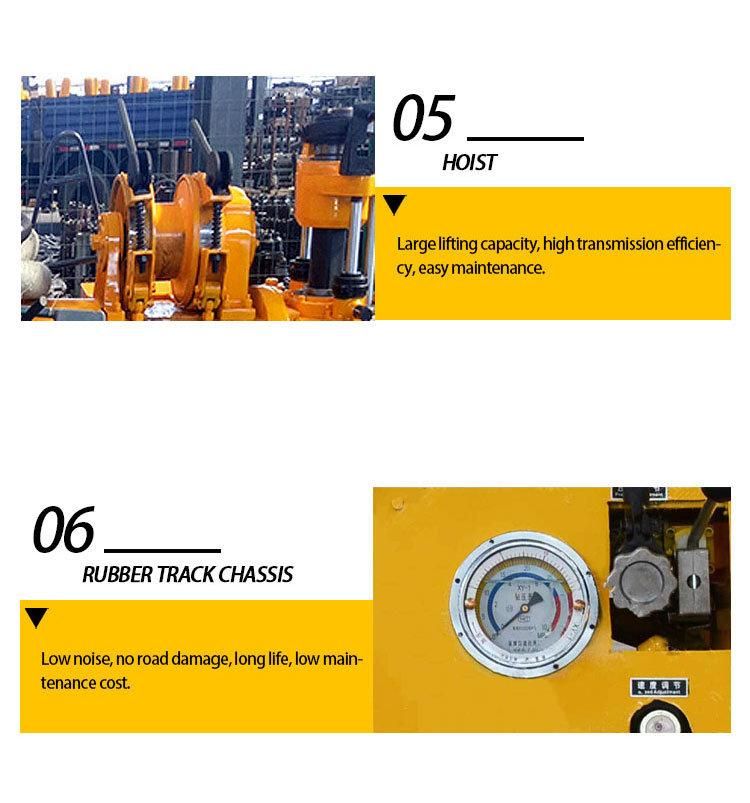

• Max Single Rope Lifting Force：2000 Kg
• Single Rope Lifting Speed：0.41-1.64 M,Min
• Wire Rope Diameter：9.3 mm
• Wire Rope Capacity：27m
• Effective Height：6.5m
• Dispalcement：95L,Min
• Max.Pressure：1.2MPa
• Weight Without Power：660kg
• Transport Package：Wooden Case or as Buyer Required
• Specification：2400*700*1400mm
• Trademark：OEM
• Origin：Tianjin, China
• HS Code：8430412900
• Production Capacity：50 Sets Per Week

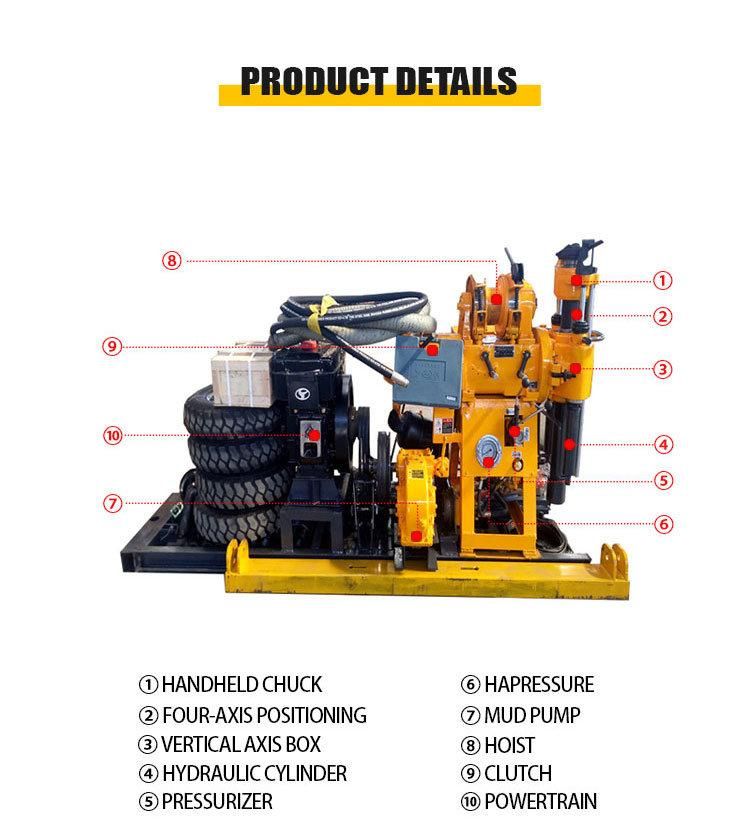

ModelHZ-130Y/130YY

HZ-180Y/180YY

HZ-200Y/200YY Drilling depth(m)130180200 Open hole dia.(mm)220220325End hole dia.(mm)757575Drill rod dia.(mm)42-6042-6042-60drill angle(°)90-7590-7590-75 Matching power(kW)13.213.215Weight without power(kg)600/740620/750880/970 Dimension Length*width*height(mm)2.4*0.7*1.42.4*0.6*1.42.7*0.9*1.6Vertical shaft speed(r/min)142/285/570130/300/480/730/830/104564/128/287/557Vertical axis stroke(mm)450450450 Max Single rope lifting force(kg)200021002500Single rope lifting speed(m/min)0.41-1.640.35-2.230.12-0.95Wire rope diameter(mm)φ9.3φ9.3φ12.5Wire rope capacity(m)273535Rated load(ton)181818effective height(m)6.56.56.5 Dispalcement(L/min)9595145 Max.pressure(Mpa)1.21.22Number of reciprocations(Times/min)939393Diameter of suction pipe(mm)515151Outlet diameter(mm)323238

FAQ..................

Question 1: What are your advantages compared with your competitors?

Answer:

With rich industry experience and strict Product Quality Control systems, we provide:

1). Stable and reliable product at reasonable price

2). Good customer service: Fast response to any inquiry or question

3). On-time delivery.



Question 2: Can you customize the machine for me ?

Answer: Yes, we can customize according to customer's requirements.



Question 3: What shall we do if breakdown occurs?

Answer: Please informed us once the breakdown occurs. During warranty period, if breakdown occurs, we shall respond in time after receiving the notification of the buyer. We shall handle failure over the telephone/ fax or arrange relevant personnel to the site according to the buyer's requirements.
