200m Deep Crawler DTH Hammer Hydraulic Water Well Drilling Rig

Changsha Miracleland Import & Export Co., Ltd.
  • Certification：CE, ISO 9001:2008
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：140-350mm
  • Drill Hole Depth：200m
  • Bit Type：DTH Bit

Base Info

  • Model NO.：KY-200
  • Drilling Way：DTH Drill
  • Type：Crawler
  • Structure：Compact Type
  • Rig Power：76kw
  • Stability：Good
  • Engine Brand：Yuchai
  • Transport Package：Plastic Film
  • Specification：200
  • Trademark：csmiracleland
  • Origin：Changsha, Hunan, China
  • HS Code：8430691900
  • Production Capacity：20 Sets,Month

Description

KY-200 Multi-function crawler hydraulic water well drilling rig technical figuresDrilling depth200mDrilling diameterΦ140-Φ305mmWorking air pressure1.7-3.0MPaAir consumption17-30m3/minDrilling pipe diameterΦ76, Φ89mm, Φ102mmLength of drill pipe1.5m, 2.0m, 3.0mOne push length3mTramming speed2.5km/hClimbing ability (Max.)30°Ground clearance (Min.)250mmRotation speed50-70 rpmRotation torque4800-6500 N.mPower76 KwWeight6.2TDimension4000x1900x2600mm Detailed Images

200m Deep Crawler DTH Hammer Hydraulic Water Well Drilling Rig

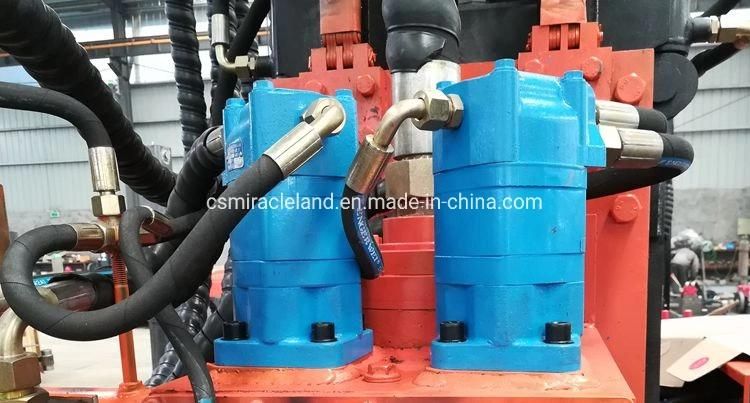

Double motor to provide power, large torque, durability, maintenance cost is lower.

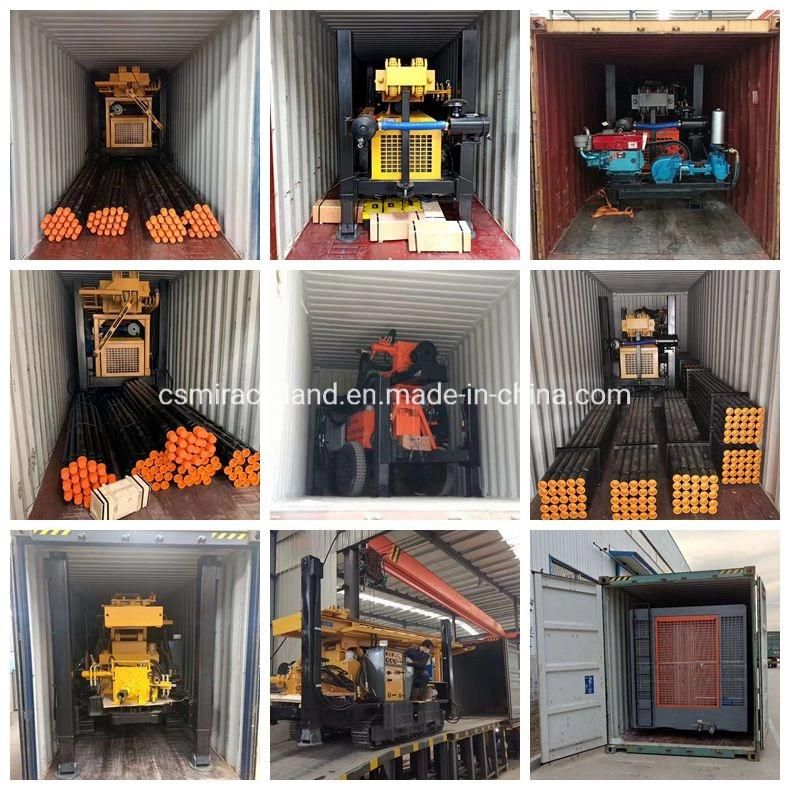

200m Deep Crawler DTH Hammer Hydraulic Water Well Drilling RigPackaging & Shipping:
200m Deep Crawler DTH Hammer Hydraulic Water Well Drilling Rig
