Kaishan KQD70 Motor Driven DTH Drilling Machine

Quzhou Refine Machinery Equipment Co., Ltd.
  • Condition：New
  • Type：Rotary Drilling Rig
  • Power：3kw electric motor
  • Dimension：2200X600X600mm
  • Weigth：300kg
  • Bore Depth：>15m

Base Info

  • Model NO.：KQD70
  • Bore Dia.：>60-80mm
  • Air Consumption：>3.5m3,min
  • Working Pressure：0.5-0.7MPa
  • Weight：400kg
  • Usage：Ore, Water Well, Coal, Quarry
  • Power Type：Electric
  • Transport Package：Carton or Wooden Case
  • Specification：Down The Hole Drilling
  • Trademark：KAISHAN
  • Origin：Zhejiang, China
  • HS Code：8430390000
  • Production Capacity：1000PCS,Month

Description

Remark(mm)(m)(MPa)(m3/min)KQD 7060--80≥150.5-0.7≥3.53kwKQD100B80--100≥200.5-0.7≥64kwKQD 10080--100≥200.5-0.7≥64kwKQD 12080-100≥200.5-0.7≥65.5kwKQD145B90-130≥500.7-1.4≥127.5kwKQD150B90-130≥500.7-1.4≥127.5kwKQD16590-150≥500.7-1.4≥1511kw



Kaishan KQD70 Motor Driven DTH Drilling Machine

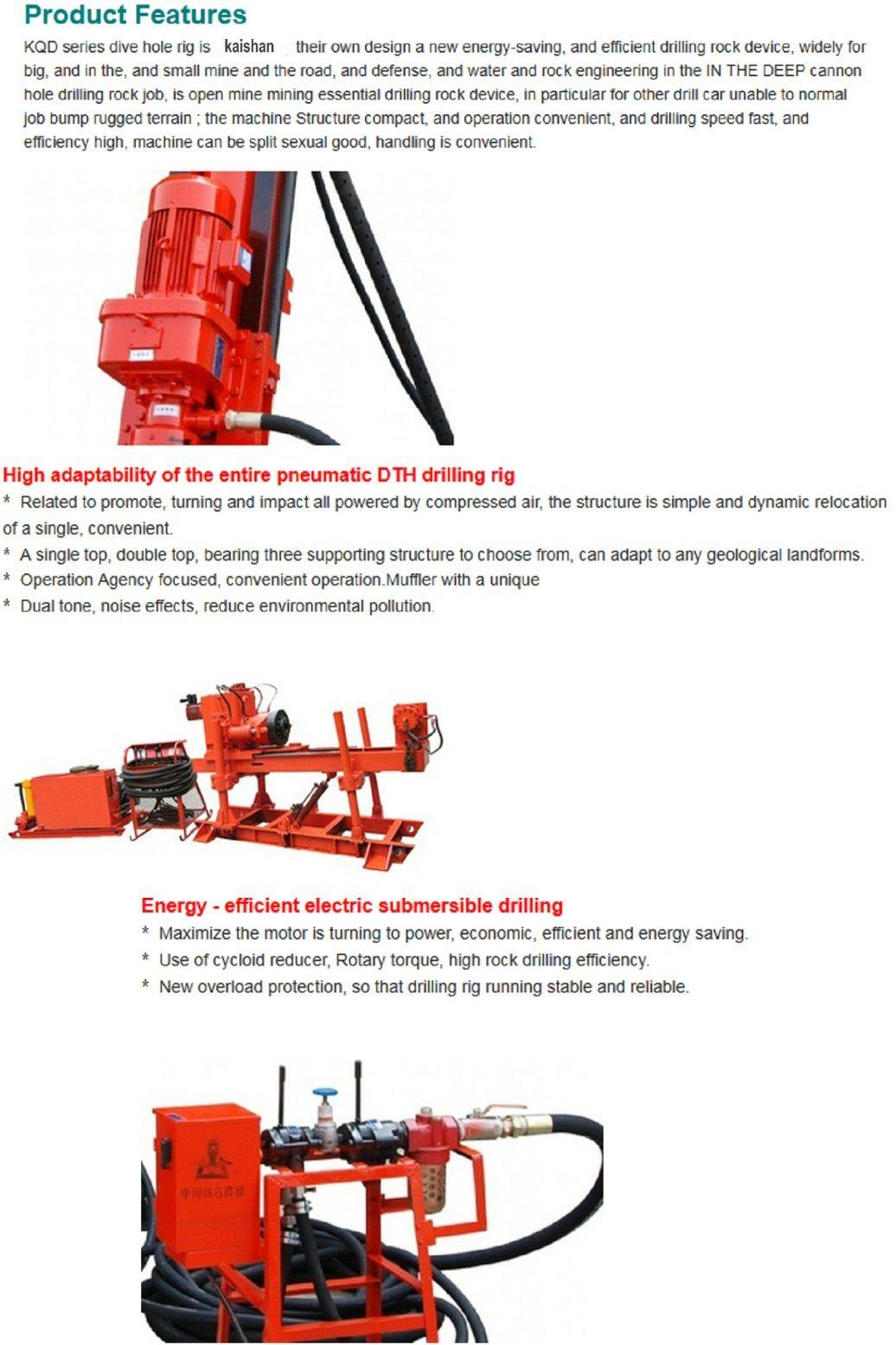

Main Elements show:
Kaishan KQD70 Motor Driven DTH Drilling Machine
Hammer's specification:Weight11.5kgOverall Length777mmOutside Diamater57mmOperating Air pressure0.49-0.63MpaImpact Rate≥14.5HzAir Consumption≤58L/SBackhead Thread(Square) 42*10*1.5Dia of the holeØ60-70mm

Matching Drill rod :  Ø 42 /60mm *1m

Matching Drill Bit:    Low wind pressure drill bit (60-100mm)

Matched Portable Diesel Screw Air COmpressor

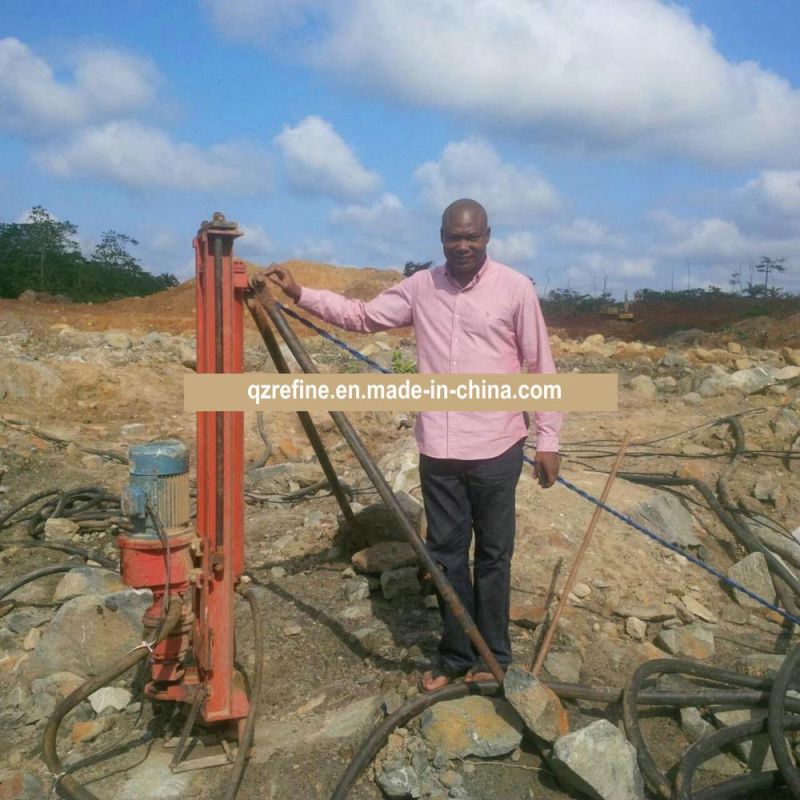

ModelLGCY-4/7Capacity (m³/min)4m3/minWorking Pressure (Mpa)0.7MpaWeight (kg) Dimension (mm) Applicated in our client's project:
Kaishan KQD70 Motor Driven DTH Drilling Machine
You may also interested in below items:

Kaishan KQD70 Motor Driven DTH Drilling Machine

About KAISHAN GROUP:
Kaishan KQD70 Motor Driven DTH Drilling Machine
FAQ Collection:
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.

Q2: What the exactly address of your factory?
A2: Our factory is located in No.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China

Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equirement.

Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.

Q7: How long will you take to arrange production?
A7: we can delivery the normal goods within 7-15 days. Other nonstandard electrical items we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
